Description

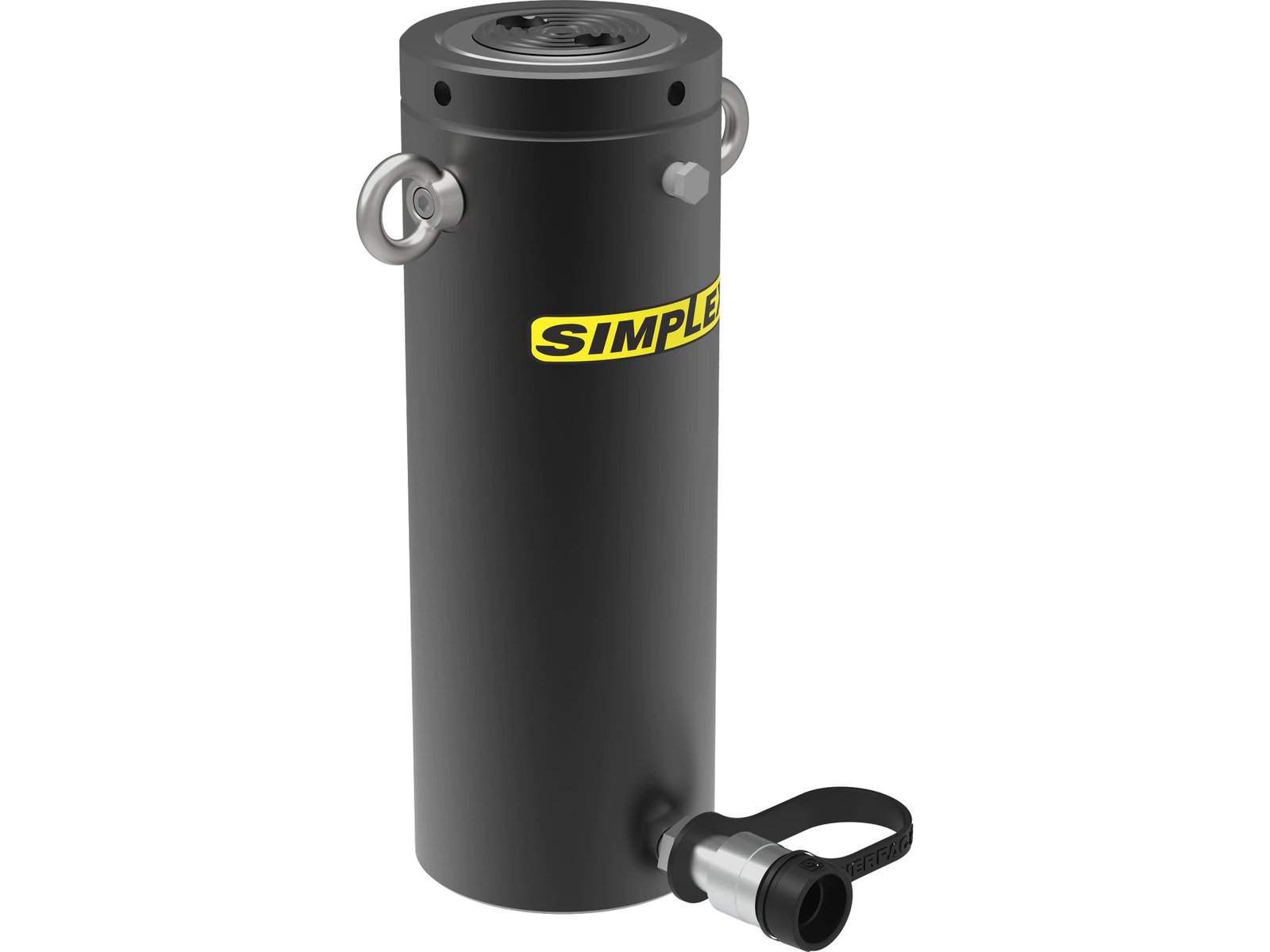

Enerpac RCL5010
- Capacity (ton): 55
- Stroke (in): 9.84
- Lock nut tested to 150% of rated load
- Lock nut provides safe mechanical load holding for an extended period of time
Single-Acting High Tonnage Hydraulic Cylinder, 55 Ton Capacity, 9.84″ Stroke, Lock Nut
The Enerpac RCL5010 is a 55-ton single-acting high-tonnage hydraulic cylinder with a 9.84″ stroke. This cylinder lock nut is tested to 150% of the rated load and provides safe mechanical load holding for an extended period of time. The red band warns the operator to end the stroke, and the over-flow port prevents over-stroke, without a stop ring.
The RCL5010 body, lock nut, and saddle feature a black nitride coating to improve corrosion and wear resistance. It also has replaceable wear bands that improve seal life and side load capacity.
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 77 LBS |
| Product Height | 14.41 IN |
