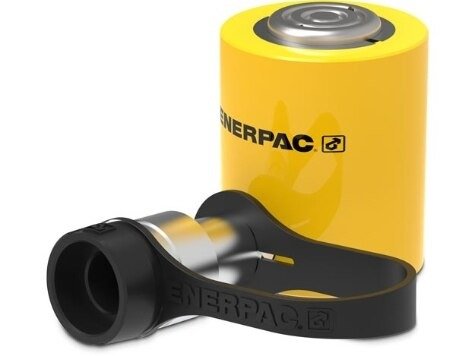

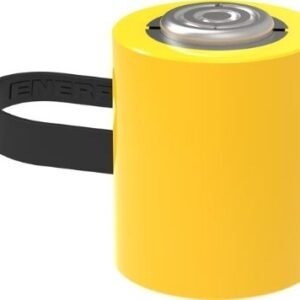

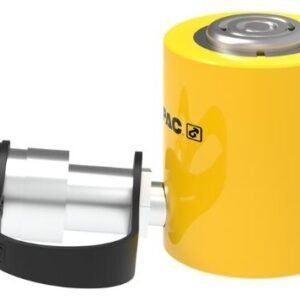

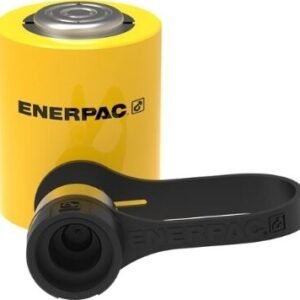

Enerpac RCS101 – Low Height Hydraulic Cylinder, 11.2 Tons Capacity, 1.50″ Stroke
22 people are viewing this product right now
$785.40
Shipping calculated at checkout.
Estimated delivery:4 days
Low height hydraulic cylinder, 10 tons capacity class, 1.50″ stroke, S/A
- Maximum Cylinder Capacity Advance (tons): 11.2 | Capacity Class (tonnage): 10 | Stroke: 1.5″
- Single-acting spring return
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
Guarantee Safe and Secure Payment Checkout
Description
Enerpac RCS101
- Maximum Cylinder Capacity Advance (tons): 11.2 | Capacity Class (tonnage): 10 | Stroke: 1.5″
- Single-acting spring return
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
Low Height Hydraulic Cylinder, 11.2 Tons Capacity, 1.50″ Stroke
Enerpac RCS101 is a low height hydraulic cylinder with 11.2 tons capacity and 1.50″ Stroke. It has a single-acting spring return, and this product gets a lightweight, low profile design for use in confined spaces. It is a baked enamel finish for increased corrosion resistance Plunger wiper reduces contamination, extending cylinder life, and the grooved plunger end with threaded holes for mounting tilt saddles and the Enerpac RCS101 is the Plated steel plunger.
Epac RCS Series Comparison
| Model Number | Maximum Operating Pressure (psi | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| RCS101 | 10,000 | 10 | 11.2 | 1.5 | 3.47 | 4.97 | Single-Acting, Spring Return. | Solid |
| RCS201 | 10,000 | 20 | 22.1 | 1.75 | 3.88 | 5.63 | Single-Acting, Spring Return. | Solid |
| RCS302 | 10,000 | 30 | 32.4 | 2.44 | 4.63 | 7.06 | Single-Acting, Spring Return. | Solid |
| RCS502 | 10,000 | 50 | 48.1 | 2.38 | 4.81 | 7.19 | Single-Acting, Spring Return. | Solid |
| RCS1002 | 10,000 | 100 | 98.1 | 2.25 | 5.56 | 7.81 | Single-Acting, Spring Return. | Solid |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 6 LBS |
| Product Height | 3.47 IN |
| Product Width | 2.75 IN |
| Shipping Weight | 6.9 LBS |
| Shipping Height | 3.99 IN |
| Shipping Width | 3.16 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 6 lbs |
|---|---|
| Dimensions | 2.75 × 3.47 in |
