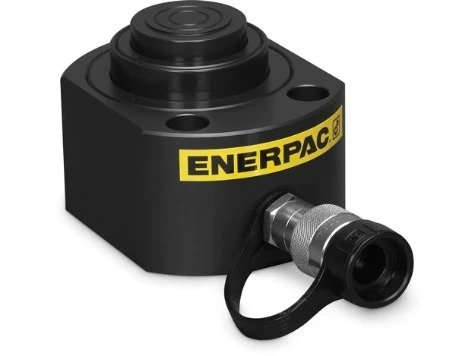

Enerpac RLT311 – Telescopic Hydraulic Cylinder, 34.8 Tons Capacity, 1.14″ Stroke
10 people are viewing this product right now
$2,773.10
Shipping calculated at checkout.
Estimated delivery:5 days
Telescopic hydraulic cylinder, 35 tons capacity class, 1.14″ stroke
- Maximum Cylinder Capacity Advance (tons): 34.8 | Capacity Class (tonnage): 35 | Stroke: 1.14″
- Single-Acting, load return
- Nitrocarburization surface treatment for improved load and wear resistance and corrosion protection
- The longer stroke length of telescopic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing.
- For use in confined spaces: machinery positioning, tool fastening
- Mounting bolt holes for easy fixturing
- Up to 3% side-load of maximum capacity
Guarantee Safe and Secure Payment Checkout
Description
Enerpac RLT311
- Maximum Cylinder Capacity Advance (tons): 34.8 | Capacity Class (tonnage): 35 | Stroke: 1.14″
- Single-Acting, load return
- Nitrocarburization surface treatment for improved load and wear resistance and corrosion protection
- The longer stroke length of telescopic cylinders will save you time and simplify projects by moving a load a greater distance and eliminating the use of temporary cribbing.
- For use in confined spaces: machinery positioning, tool fastening
- Mounting bolt holes for easy fixturing
- Up to 3% side-load of maximum capacity
Telescopic Hydraulic Cylinder, 34.8 Tons Capacity, 1.14″ Stroke
Enerpac RLT311 is a telescopic hydraulic cylinder with 34.8 tons capacity and 1.14″ Stroke. It has a single-acting spring return, and this product gets a nitrocarburization surface treatment for improved load and wears resistance and corrosion protection. The longer stroke length of telescopic cylinders will save you time and simplify projects by moving a bag a greater distance and eliminating the use of temporary cribbing. For use in confined spaces: machinery positioning, tool fastening, Mounting bolt holes for easy fixturing, and up to 3% side-load of maximum capacity.
Enerpac RLT Series Comparison
| Model Number | Maximum Operating Pressure (psi) | Capacity Class (tonnage) | Maximum Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height A (in) | Extended Height B (in) | Return Type | Plunger Type |
| RLT40 | 10,150 | 5 | 4.8 | 0.67 | 1.77 | 2.44 | Single-Acting, Load Return | Telescopic |
| RLT41 | 10,150 | 5 | 4.8 | 0.91 | 2.13 | 3.03 | Single-Acting, Load Return | Telescopic |
| RLT110 | 10,150 | 12 | 12.5 | 0.71 | 2.15 | 2.85 | Single-Acting, Load Return | Telescopic |
| RLT111 | 10,150 | 12 | 12.5 | 1.57 | 3.50 | 5.08 | Single-Acting, Load Return | Telescopic |
| RLT230 | 10,150 | 25 | 26.1 | 1.06 | 2.95 | 4.02 | Single-Acting, Load Return | Telescopic |
| RLT231 | 10,150 | 25 | 26.1 | 1.26 | 3.78 | 5.04 | Single-Acting, Load Return | Telescopic |
| RLT311 | 10,150 | 35 | 34.8 | 1.14 | 3.50 | 4.65 | Single-Acting, Load Return | Telescopic |
| RLT501 | 10,150 | 50 | 55.8 | 1.02 | 3.78 | 4.80 | Single-Acting, Load Return | Telescopic |
| RLT741 | 10,150 | 75 | 81.7 | 1.02 | 4.49 | 5.51 | Single-Acting, Load Return | Telescopic |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 28.7 LBS |
| Product Height | 3.50 IN |
| Shipping Weight | 33.01 LBS |
| Shipping Height | 4.03 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 28.7 lbs |
|---|---|
| Dimensions | 3.5 in |
