Description
Enerpac RWH20
- 0.33″ stroke
- 0.41 cu.in oil capacity advance
- Load can be attached to either end of the cylinder
- Very high cylinder capacities contained within small dimensions
- Spring return operation allows for easy unloading of the workpiece

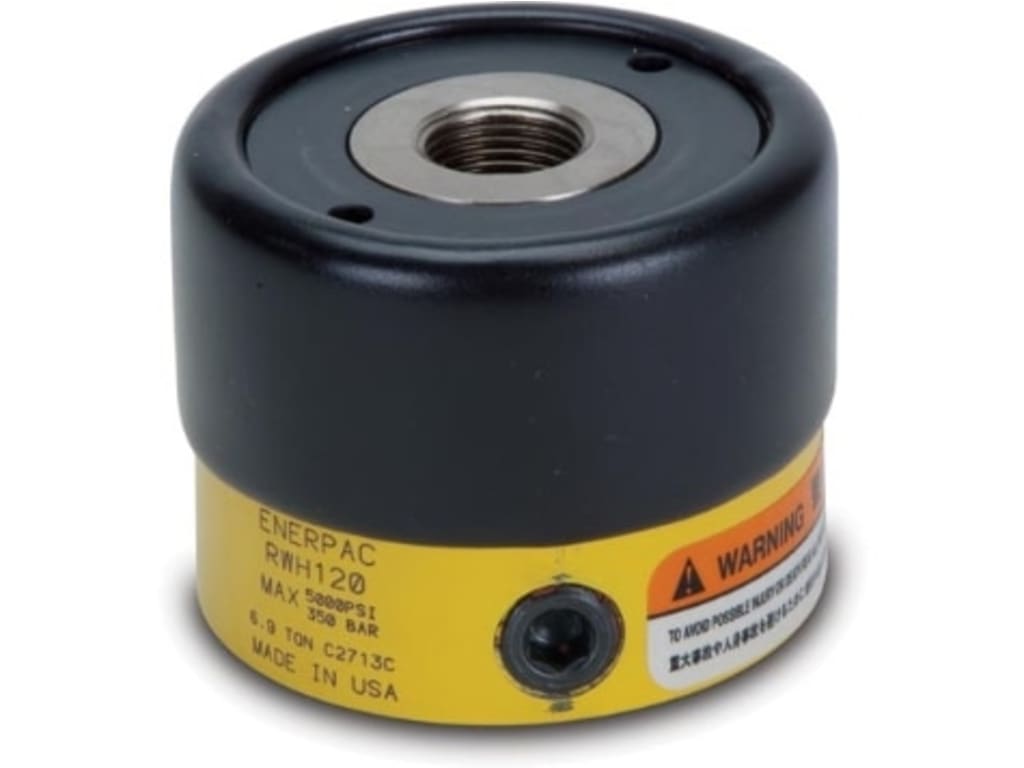

Hollow Plunger Hydraulic Cylinder, 4000 lbs Capacity, 0.33″ Stroke
The Enerpac RWH20 is a hollow plunger hydraulic cylinder that is regularly used for upgrading mechanical clamping to faster and easier hydraulic clamping. Other typical applications include production pressing, punching and crimping operations.
RWH Series Comparison Table
| Model Number | Maximum Cylinder Capacity Advance (lbs) | Return Type | Plunger Type | Cylinder Effective Area Advance (sq.in) |
| RWH20 | 4,000 | Single-Acting, Spring Return | Hollow | 1.33 |
| RWH120 | 13,800 | Single-Acting, Spring Return | Hollow | 2.76 |
| RWH121 | 13,800 | Single-Acting, Spring Return | Hollow | 2.76 |
| RWH200 | 23,500 | Single-Acting, Spring Return | Hollow | 4.74 |
| RWH202 | 23,500 | Single-Acting, Spring Return | Hollow | 4.74 |
| RWH300 | 36,000 | Single-Acting, Spring Return | Hollow | 7.22 |
| RWH301 | 36,000 | Single-Acting, Spring Return | Hollow | 7.22 |
| RWH302 | 36,000 | Single-Acting, Spring Return | Hollow | 7.22 |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser |
| Product Weight | 0.41 LBS |
