Description
Enerpac SCL302FP
- Set includes low height hydraulic cylinder, foot pump, 6ft safety hose, calibrated gauge, and gauge adaptor
- Cylinder capacity advance (tons): 30
- Stroke (in): 2.44
- Optimum match of individual components
- RCS-Series, low height cylinder for maximum versatility
30 Ton, 2.44″ Stroke, Low Height Hydraulic Cylinder & Foot Pump Set
Model: P392FP
- Robust, durable and compact
- Steel frame for maximum stability
- Steel pumping handle
- Aluminum reservoir
- Foot pedal lock and lightweight construction for portability
- Two-speed operation reduces foot pedal strokes
- Large foot-pad release valve for controlling load descent
- Integral pressure relief valve for overload protection
Model: RCS302
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 coupler and dust cap included on all models
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Single-acting spring return
Model: HC7206
- For demanding applications, featuring a 4:1 safety factor
- Maximum working pressure of 10,000 psi
- Outside jacket is polyurethane, to provide maximum abrasion resistance
- Exhibits low volumetric expansion under pressure to enhance overall system efficiency
- Vinyl strain relief guard on both ends of the hose to improve life and durability on all models.

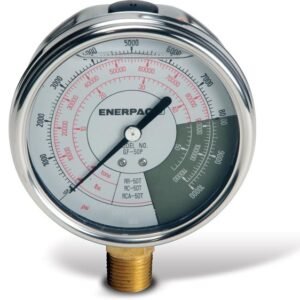

Model: GF230P
- Excellent readability; 4-inch diameter gauge face.
- Fast, easy installation
- Stainless steel gauge cases for corrosion resistance
- Calibrated with dual scale reading for psi and bar
Model: GA2
- For easy mounting of a pressure gauge into your system
- Male end screws into pump or cylinder port, female end accepts hose or coupler, third port is for gauge connection
- Simplifies gauge installation and reading
SCL Series Comparison Table
| Model | Set | Cylinder Capacity Advance (tons) | Stroke (in) | Collapsed Height (in) |
| SCL1002XCB | Cylinder & Cordless Pump | 100 | 2.25 | 5.56 |
| SCL101H | Cylinder & Hand Pump | 10 | 1.5 | 3.88 |
| SCL101FP | Cylinder & Foot Pump | 10 | 1.5 | 3.88 |
| SCL201H | Cylinder & Hand Pump | 20 | 1.75 | 3.88 |
| SCL201FP | Cylinder & Foot Pump | 20 | 1.75 | 3.88 |
| SCL201XA | Cylinder & Air Pump | 20 | 1.75 | 3.88 |
| SCL302H | Cylinder & Hand Pump | 30 | 2.44 | 4.63 |
| SCL302FP | Cylinder & Foot Pump | 30 | 2.44 | 4.63 |
| SCL302XA | Cylinder & Air Pump | 30 | 2.44 | 4.63 |
| SCL502H | Cylinder & Hand Pump | 50 | 2.38 | 4.81 |
| SCL502FP | Cylinder & Foot Pump | 50 | 2.38 | 4.81 |
| SCL502XA | Cylinder & Air Pump | 50 | 2.38 | 4.81 |
| SCL1002H | Cylinder & Hand Pump | 100 | 2.25 | 5.56 |
Product General Attributes | |
|---|---|
| Warranty Details | Warranted for so long as it is owned by the first-using purchaser. |
| Shipping Weight | 44.20 LBS |
