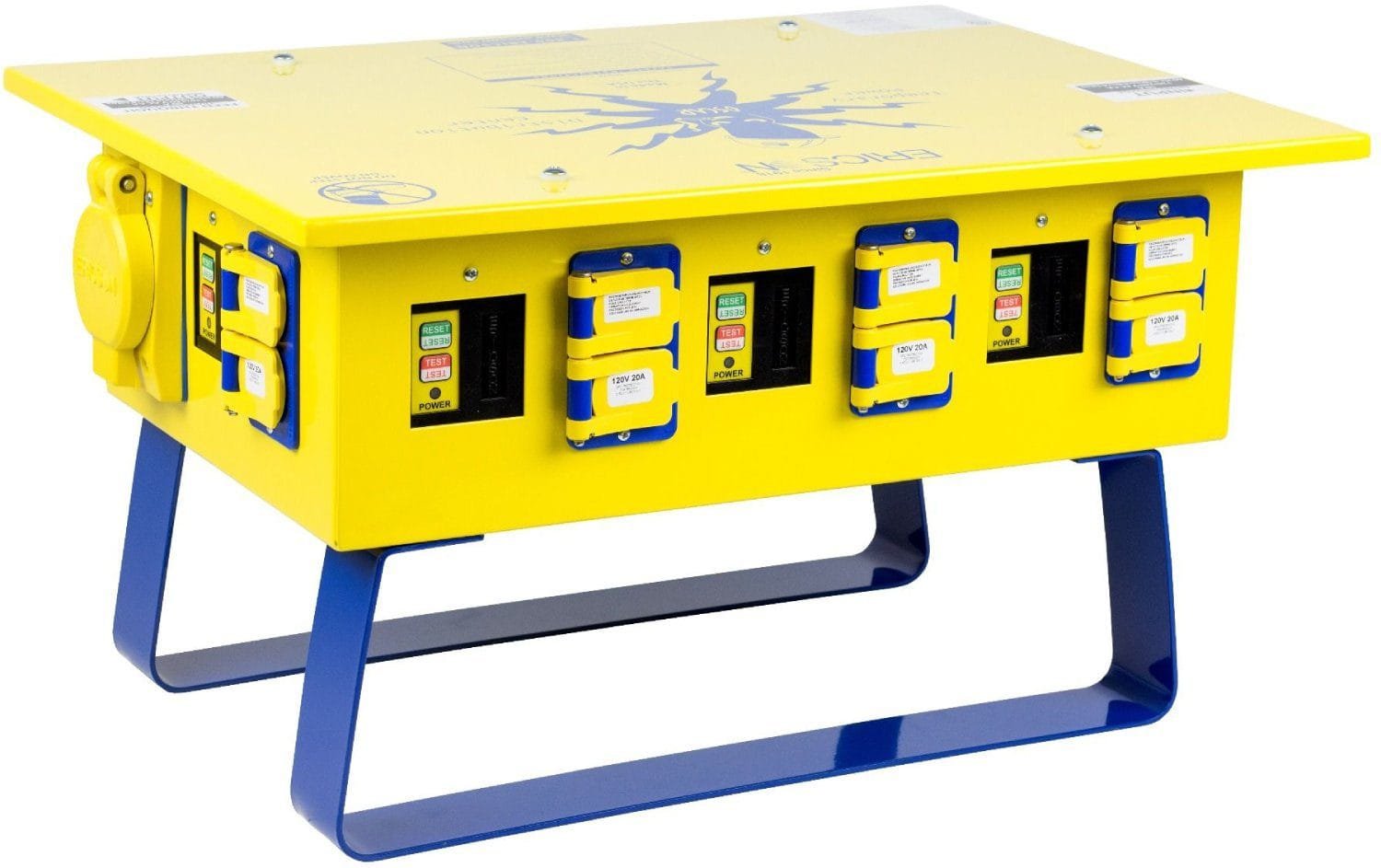

Ericson 1066-BFS – Oscar Temporary Power Distribution Center

• Primary/Secondary Voltage: 120/240
• Receptacle A Type: 5-20R DUPLEX
• Receptacle A Quantity: 6
• Receptacle B Type: L6-30R
• Receptacle B Quantity: 1
• Feed-Thru

Ericson Manufacturing Company now offers a wide variety of temporary power distribution centers. These products, represented by Oscar the Octopus, allow the user to centralize and distribute temporary power safely. The product line consists of standard configurations, which can be customized to suit your needs. ETL is listed to UL 1640 Standard for Safety. These safeguards provide protection for you and your equipment.

• The unit is field repairable by qualified personnel. The parts list and wiring diagram appear on the underside of the lid.
• Power inlet & outlet clearly marked on lid for quick identification.
• Heavy-duty safety yellow powder-coated enclosure.
• Product label with clear markings for easy identification of model number, serial number, and specifications.
• Each NEMA 5-20 outlet is individually GFCI protected with open neutral protection.
• 50A, 125/250V power outlet.
• CS6369 50A, 125/250V power outlet.
• Heavy-duty powder-coated steel skids to insure rugged, dependable jobsite performance.
• Flip covers protect outlets from damage & the weather.
• Manual power-up GFCIs require the user to press the reset button upon plug-in, after power loss to prevent accidental equipment start-up and in the event of a ground fault to restore power.
• CS6375 50Amp 125/250v power inlet
• CS6369 50A, 125/250V power outlet.
• A variety of accessories are available.
• Flip-up door protects circuit breakers from damage & weather

Typical Applications Include:

• Industrial, commercial and residential construction projects
• General maintenance and repair work (MRO) in industrial facilities
• Temporary power distribution at carnivals, circuses, fairs & similar events
• Convention centers to distribute power for exhibitions & maintenance
• Photo studios to distribute power to flash & other photographic equipment
