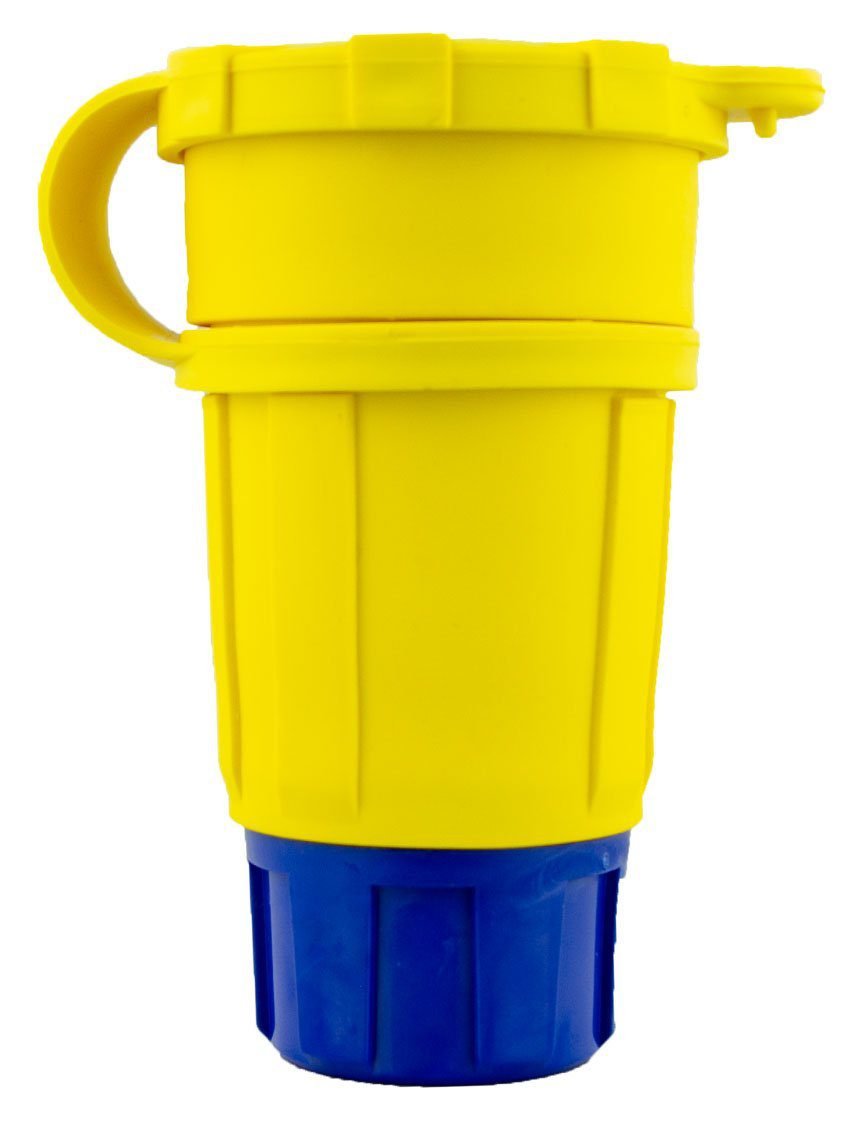

Ericson 2426-CW6P – Locking Type Connector, Non-NEMA, Perma-Tite Extreme Grade Watertight, 20A, 120/208V
22 people are viewing this product right now
Original price was: $62.62.$56.36Current price is: $56.36.
Shipping calculated at checkout.
Estimated delivery:5 days
CONNECTOR NON-NEMA, PERMA-TITE EXTREME GRADE, WATERTIGHT YELLOW WIRING DEVICE, LOCKING 20 AMP 120/208V 3PH, SIZE = LG
- UL Listed to ANSI/UL 498, File E17740
- NEMA Configuration: NON-NEMA
- Amps: 20
- Voltage: 120/208V
- Phase: 3
- Wiring Device Type: Connector
- Blade Style: Locking
- Environmental Rating: Watertight (IP69K)
Guarantee Safe and Secure Payment Checkout
Description
Ericson 2426-CW6P
- UL Listed to ANSI/UL 498, File E17740
- NEMA Configuration: NON-NEMA
- Amps: 20
- Voltage: 120/208V
- Phase: 3
Locking Type Connector, Non-NEMA, Perma-Tite Extreme Grade Watertight, 20A, 120/208V
Ericson 2426-CW6P is a connector, non-NEMA configuration, and Perma-Tite Extreme Grade, IP69K watertight yellow wiring device. It is a locking-style blade connector with 20A and 120/208V.
Ideal Applications: Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure.
Electrical/Electrical Plugs and Connectors Template | |
|---|---|
| Maximum Current | 20 A |
| Maximum Voltage | 208 V |
| Locking Capability | Yes |
| NEMA Rated | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | UL |
| Product Weight | 0.75 LBS |
| Shipping Weight | 0.86 LBS |
| HTS/Schedule B Number | 8536694020 |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 2.00 IN |
| UPC | 782862897171 |
| Shipping Length | 12.00 IN |
| Shipping Width | 9.00 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec Sheets
| Weight | 0.75 lbs |
|---|
