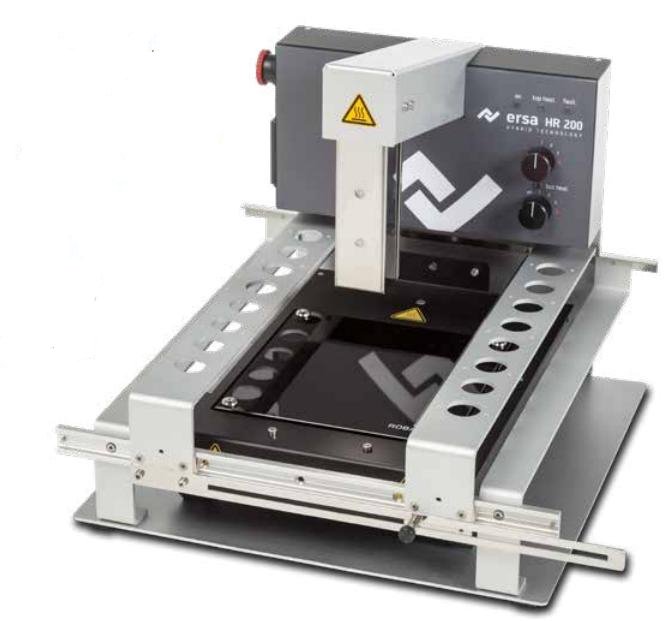

Ersa HR 200 HP – Hybrid Rework System with Heating Plate

• Catalog number 1HR200-HP0A67
• This model includes a heating plate
• Compact hybrid rework station without software
• Simple setup and intuitive operation
• Solder and desolder SMT components up to 30×30 mm

Unpack, set up, solder! It´s simple as that to rework a PCB nowadays. The Ersa hybrid rework system HR 200 contains a 400 W hybrid high-power heating element to desolder and solder SMT components up to 30 x 30 mm. In addition, the system can operate a powerful 800 W infrared heating plate. This bottom heater guarantees ideal preheating of the assembly to rework.

The operator selects the required power for top and bottom heating with a control knob, each with four levels. A footswitch activates the heating process. The operator’s hands are free to remove the desoldered component with appropriate tools.

Depending on the assembly and the preselected power a typical soldering time for components can range from 60 to 180 s (1 -3 min). During work breaks, the bottom heater switches back to standby level. The integrated PCB holder locates the assembly in optimum working distance to the top and bottom heater.

Ersa recommends an optional cooling fan, a thermocouple and a temperature-measuring instrument to complete the workplace. Additional accessories include a Reflow Process Camera to observe the soldering processes rounds off the equipment.
