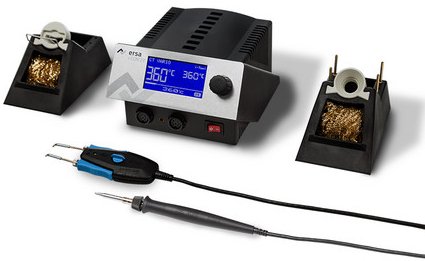

Ersa i-CON 2V CT – Two Channel Soldering Station with i-TOOL and CHIP TOOL VARIO

• Catalog number 1IC2200VC0A67
• Two channel soldering station
• 120 watts
• Includes i-TOOL and CHIP TOOL VARIO
• This version does not include the interface option

This version of the i-CON 2V includes the i-TOOL soldering iron and CHIP TOOL VARIO tweezer. It does not include the interface option.

For compatible tips, please see below:

• i-TOOL
• Series 102 tips
• CHIP TOOL VARIO
• Series 462 tips

The Ersa i-CON 2V is a professional soldering station for the industrial user. It always supplies the required energy for a wide range of soldering tasks – quickly and precisely. The precise temperature control ensures a short heat-up phase and accurate re-heating during soldering. The right soldering tip is available for every application and ensures an optimum heat transfer from the heating element to the solder joint – whether on the 01005 chip or wide chisel-type tips for high-mass applications. The consistent operating concept allows the user to concentrate on the soldering task. Parameter setting is simple due to intuitive one-touch operation and tool-free tip exchange.

The i-CON 2V can be operated with the i-TOOL soldering iron and the CHIP TOOL VARIO desoldering tweezers. Alternatively, it is possible to connect other Ersa soldering tools. Both channels can be used simultaneously.

For the connection of a solder fume extraction unit or a heating plate, the i-CON 2V is available with a corresponding interface. These devices are then controlled centrally via the soldering station. The protection of the application and the soldering station are ensured by a fuse concept and complete ESD capability. The stations are already prepared for future functions: via micro-SD card, firmware updates can be uploaded quickly and easily.

Several versions available

Ersa offers several versions of the i-CON 2V.

It is available with the i-TOOL soldering iron and CHIP-TOOL VARIO tweezer, as well as with or without the interface option. It is also possible to purchase the station by itself, without handpieces.

Please click here to view a chart which provides an overview of each system.

The i-CON 2V is suitable for all SMT und PTH soldering tasks in electronic production, rework and R&D. The attachable tools allow a very flexible usage of the station depending on the current demands.
