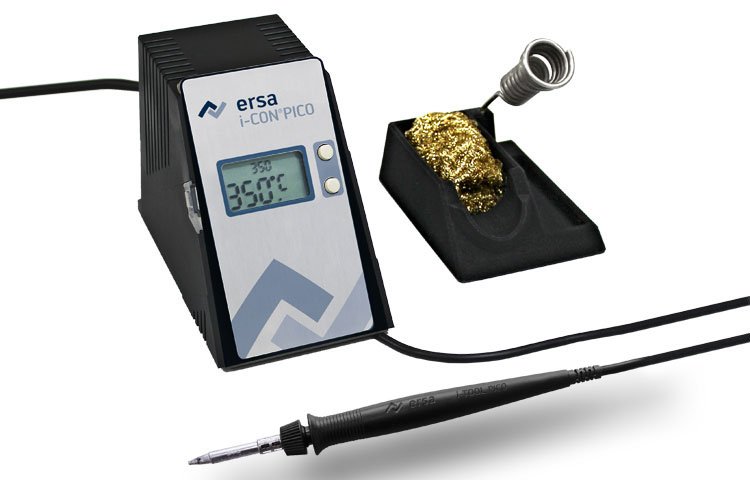

Ersa i-CON PICO – Compact Soldering Station

• Catalog number 1IC1300000A67
• Includes i-TOOL PICO soldering iron
• Small footprint – 5.7 x 3.1 x 4.1” (L x W x H)
• This station does not have an anti-static design
• 302 – 842°F temperature range (150 – 450°C)

The i-CON PICO does without ESD capability but has an impact-proof housing. The i-TOOL PICO has a heat-resistant cable and uses an exchangeable high-performance heating element in the combined metal/plastic housing.

The compact tool holder with a silicone base and spring support for the soldering iron has room for the dry sponge and soldering tips.

The configuration via PC software and microSD card is unique in this product class. In addition to the continuously variable temperature control, three fixed temperatures and three energy levels can be individually set so that the user can quickly switch between the parameters depending on the soldering job. The standby function protects the soldering tip and significantly increases its service life. Another highlight: the soldering station can also be locked for other users via the microSD card. The i-CON PICO is operated using the two buttons next to the easy-to-read LC display.

Weighing only 30 g, the i-TOOL PICO soldering iron is extremely ergonomic, making it a pleasure to work with. Heat-up from room temperature to operating temperature only takes 9 seconds. The integrated temperature sensor reacts immediately and accurately, ensuring a constant temperature for safe soldering, even with sensitive components. With the 102 series, a comprehensive range of cost-effective soldering tips is available for a wide variety of applications.

Applications

The i-CON PICO suits all SMT and PTH soldering applications in production, repair and R&D. The i-TOOL PICO soldering iron uses series 102 tips which can be viewed by clicking here.
