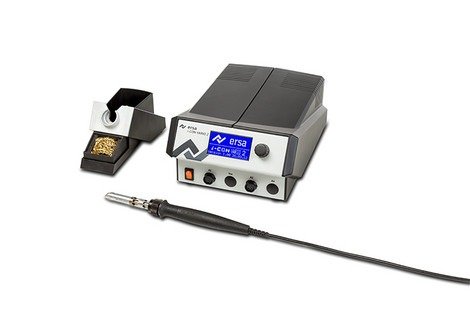

Ersa i-CON VARIO 2 HP – Two Channel Rework Station with i-TOOL HIGH POWER

• Catalog number 1ICV2000HPA67
• Two-channel rework system
• Includes i-TOOL HIGH POWER
• i-TOOL HIGH POWER uses Series 242 tips
• This version does not have hot air or vacuum functionality

This version of the i-CON VARIO 2 includes the i-TOOL HIGH POWER soldering iron. Please note, it does not have a vacuum or hot air functionality.

The i-TOOL HIGH POWER uses Series 242 tips. Please click here to see available models.

The i-CON VARIO 2 multi-channel soldering and the desoldering station provide the professional user with two soldering tools that can be used simultaneously. A version without pumps addresses users who want to use the i-TOOL HP and i-TOOL only. The i-CON VARIO 2 is otherwise similar to the i-CON VARIO 4 in its function and operation.

All functions, including generation of the air and vacuum required in the process, are bundled in the supply unit, which is equipped with the easy-to-operate i-Op facility and its clearly arranged displays. In addition, the stations have interfaces for Ersa solder fume extraction units or infrared heating plates, as well as a USB port.

With a microSD memory card, these stations can be quickly and safely configured, so that they are optimally prepared for all applications in professional electronics manufacturing. They are of course well-suited for use in ESD protected zones.

Several versions available

Ersa offers multiple versions of the i-CON VARIO 2. Please note, there is a difference in functionality between certain models, in that some do not have hot air, vacuum or both.

Please click here to view a chart that lays out each system and compatible tools. In this chart, BLUE cells indicate a tool is included. GREEN cells indicate a tool is compatible.

The four units at the bottom with PS in the model number are a power station without tools. For a complete system, please see the first seven items.
