Extech 380395 – High Voltage Digital Insulation Tester (120V)
12 people are viewing this product right now
$933.90
Shipping calculated at checkout.
Estimated delivery:5 days
Digital High Voltage Insulation Tester (120V)
- Test Voltages of 500V, 1000V, 2500V, and 5000V
- Measure Insulation Resistance to 60GΩ
- Large 6000 count display with bargraph and backlight
- Polarization Index measurement (PI)
- Dielectric Absorption Ratio measurement (DAR)
- AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
- 1 to 15 minute timer function for IR measurements
- Resistance measurement
- Autoranging
- Indication of output voltage and discharge voltage
Guarantee Safe and Secure Payment Checkout
Description
Extech 380395
- Test Voltage: 500V/1000V/2500V/5000V
- Insulation Resistance: 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
- Accuracy: ±2.5% of reading
- AC/DC Voltage: 0 to 600V
- Accuracy: ±1% of reading
- Resistance: 0 to 600Ω
- Accuracy: ±1.5% of reading
- Continuity: 50Ω
High Voltage Digital Insulation Tester (120V)
Wide Range Measurement up to 5kV with Insulation Resistance to 60GOhm

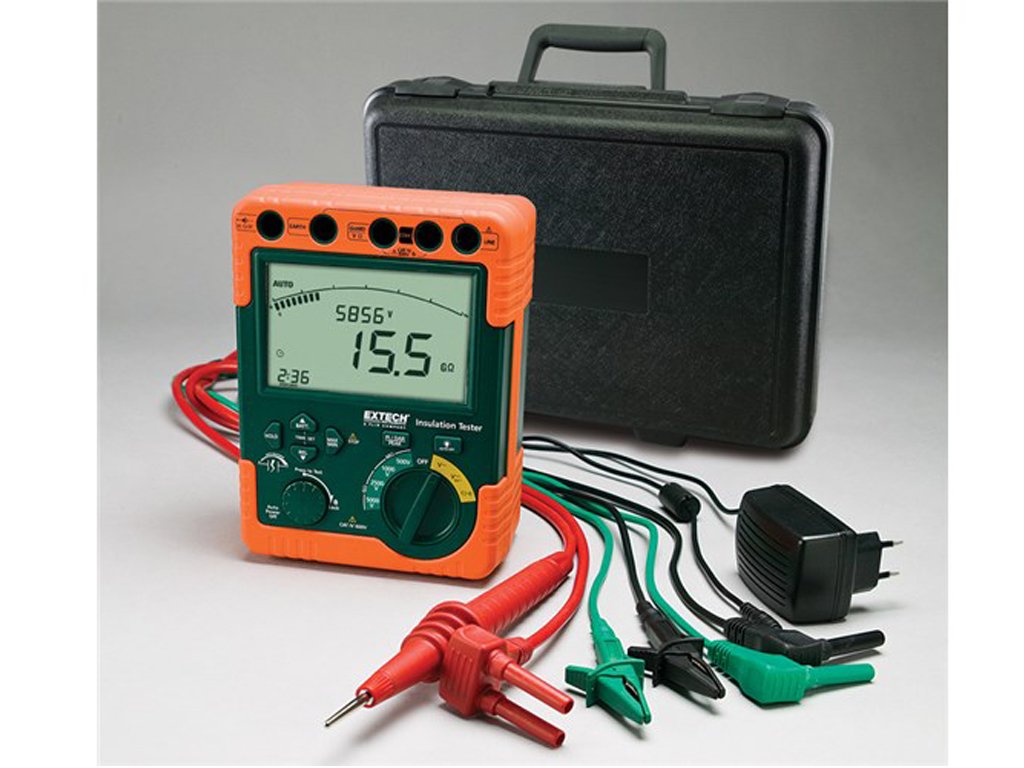

With the 380395 measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 120V AC adaptor, heavy duty carrying case, and user manual.
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 2,500 V, 5,000 V, 500 V |
| Maximum Insulation Resistance | 60 G Ohms |
| Automated Test Results | Dielectric Absorption Ratio |
| Type | Battery |
| Minimum Insulation Resistance | 0 G Ohms |
| Variable Incremental Voltage | No |
| Display (Megohmmeter) | Digital |
| Continuity Test | Yes |
| Live Circuit Voltage Detection | No |
| Power Supply | Battery |
| Timer | Yes Timer 1 to 15 minute |
| CAT Rating | IV |
| CAT Voltage | 600 V |
Product General Attributes | |
| Unique Features | • 1 to 15 minute timer function for IR measurements • Resistance measurement • Autoranging • Indication of output voltage and discharge voltage • Auto-discharge function and voltage output warning function • Auto Power off and battery check |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 3.2 LBS |
| Product Height | 3.4 IN |
| Product Length | 7.8 IN |
| Product Width | 5.8 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | C Battery Type 8 x C |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
| Weight | 3.2 lbs |
|---|---|
| Dimensions | 7.8 × 5.8 × 3.4 in |
