Description

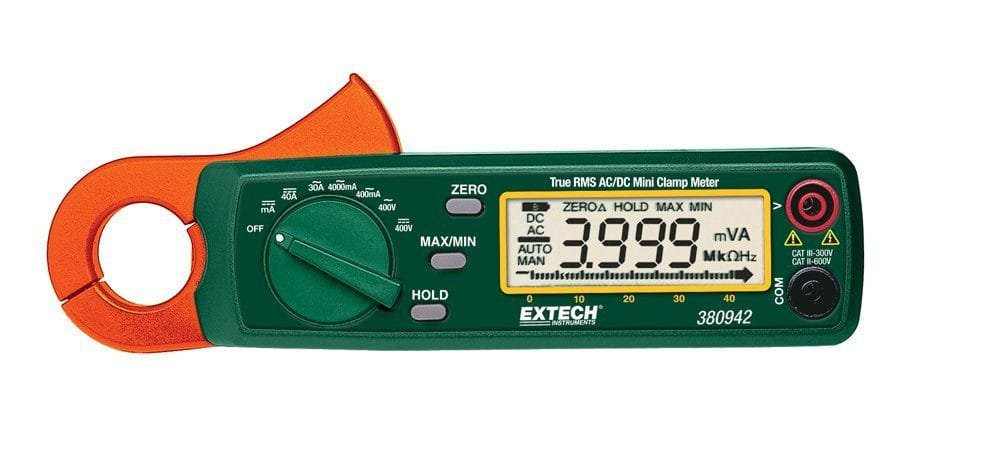

Extech 380942
- Low AC/DC Current measurements with high resolution to 0.1mA AC and 1mA DC
- Voltage measurements using test leads
- Fast 40 segment bargraph
- One touch Auto Zero for DC Current measurements
- Min/Max, Data hold and Auto power off
30A True RMS AC/DC Mini Clamp Meter
Highest resolution (0.1mA) and accuracy at low currents

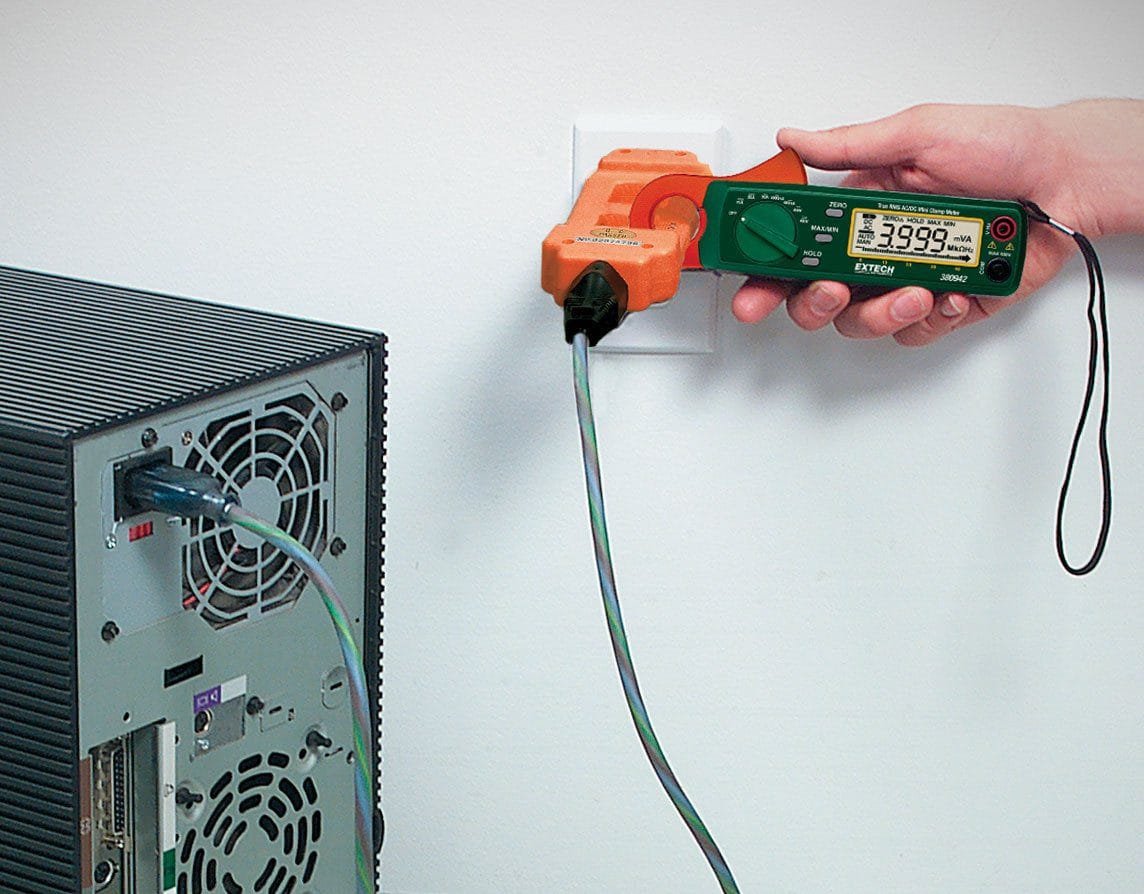

The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AAA batteries, soft carrying case, and user manual.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 30 A |
| Maximum Current DC | 30 A |
| Maximum Voltage AC | 400 V |
| Maximum Voltage DC | 400 V |
| Maximum Conductor Size | 0.9 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Product General Attributes | |
| Unique Features | Provide High Accuracy and Resolution, One Touch Auto Zero for DCA Measurements, Data Hold Display |
| Warranty | 2 YEARS |
| Additional Info/Comments | Optional 3-prong AC Line Separator Enables Safe and Easy Measurements on Power Cables with Molded Plugs |
| Safety Approval | CE, UL |
| Product Weight | 8 OUNCES (0.5 LBS) |
| Product Height | 1.3 IN |
| Product Length | 7 IN |
| Product Width | 1.8 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 HTS/Schedule B Number Value not available |
| ECCN Number | EAR99 ECCN Number Value not available |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | Taiwan Country of Origin Value not available |
