Extech 407860 – Vibration Meter – Velocity Resolution: 0.5, Accerlation Range: 199.9, Accerlation Resolution: 0.5
15 people are viewing this product right now
$1,120.90
Shipping calculated at checkout.
Estimated delivery:5 days
Heavy Duty Vibration Meter, Mounted pickup
- Ranges – Acceleration (peak): 656ft/s2 (200m/s2 ), Velocity (peak): 7.87in/s (200mm/s), Displacement (peak-to-peak): 0.078in (2mm)
- Remote vibration sensor with magnetic adapter on 39″(1m) cable
- Wide frequency range of 10Hz to 1kHz
- Resolution to 2ft/s2 (0.5m/s2 ), 0.02in/s (0.5mm/s), and 0.001in (0.005)mm
- Basic accuracy of ±(5% + 2 digits)
- RMS or Peak Value measurement modes
- Manual/Auto store/recall up to 500 readings
- Data Hold freezes the reading in the display
- Auto shut-off saves battery life
- 9V battery power or optional AC adaptor
Guarantee Safe and Secure Payment Checkout
Description
Extech 407860
- RMS or Peak Value measurement modes
- Remote vibration sensor with magnetic adapter on 39″(1m) cable
- Manual/Auto store/recall up to 500 readings
- Wide frequency range of 10Hz to 1kHz
- Auto shut-off saves battery life

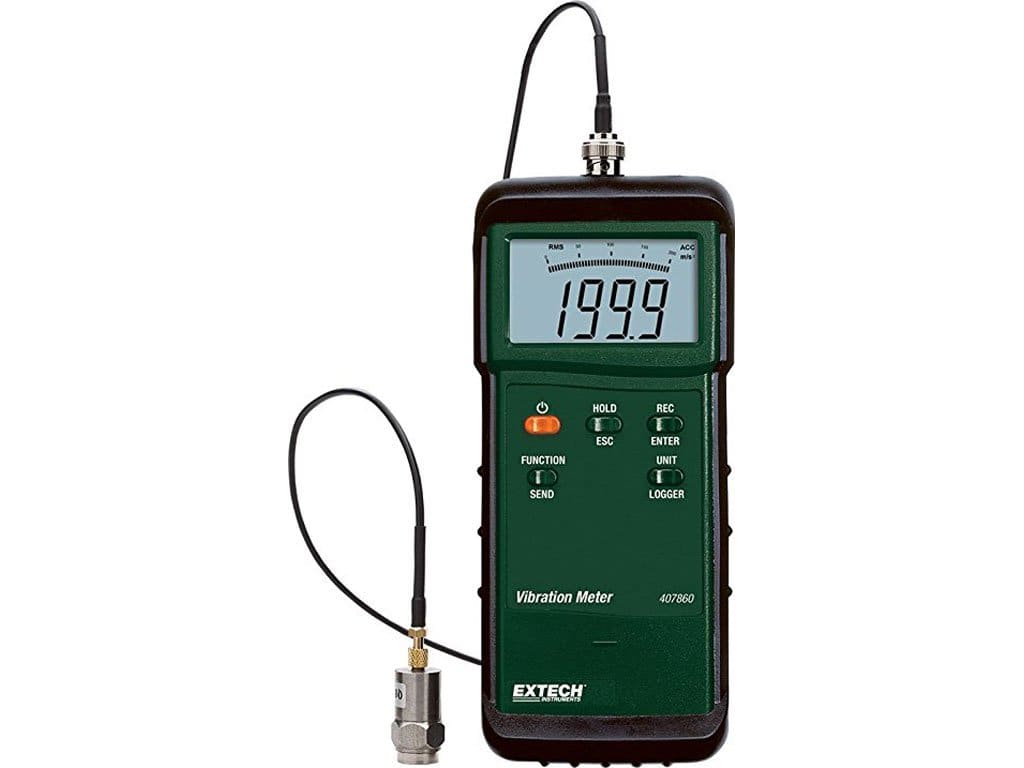

Heavy Duty Vibration Meter
The 407860 Heavy Duty Vibration Meter has a Velocity range of 7.87 in./s or 200 mm/s; Acceleration range of 656 ft./s or 200 m/s, and Displacement range of 0.078 in. or 2 mm. It features a basic accuracy of 5%, a remote vibration sensor (magnetic or stud mounted) with a 39 in. (1 m) cable, RMS, Peak Value measurement modes, and auto/manual-store with the recall of up to 500 readings. The captured readings can be downloaded to your PC for further analysis using the optional Windows compatible data logging software. Meter comes complete with a remote sensor, magnetic mount, 9V battery, holster with stand, and case.
Applications:
- Motors, bearings
- Fans
- Pumps
- Rotating machinery
- Plant maintenance
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Velocity Resolution | 0.5 mm/sec |
| Accerlation Range | 199.9 m/sec2 |
| Accerlation Resolution | 0.5 m/sec2 |
| Frequency Range | 1 kHz (1000 Hz) |
| Single Axis Measurement | No |
| Tri-Axial Measurement | No |
| Tachometer Capability | No |
| Peak/Hold | Yes |
Product General Attributes | |
| Unique Features | Ranges — Acceleration: 200m/s2, Velocity: 200mm/s, Displacement: 2mm Remote vibration sensor with magnetic adapter on 39″(1m) cable Record mode stores the maximum and minimum values for later recall Wide frequency range of 10Hz to 1kHz Resolution to 0.5m/s2, 0.5mm/s, and 0.005mm Basic accuracy of ±(5% + 2 digits) RMS or Peak Value measurement modes Data Hold freezes the reading in the display Auto shut-off saves battery life |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232 |
| Product Weight | 0.87 LBS |
| Product Height | 2.8 IN |
| Product Length | 1.3 IN |
| Product Width | 7.1 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9027808090 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 0.87 lbs |
|---|---|
| Dimensions | 1.3 × 7.1 × 2.8 in |
