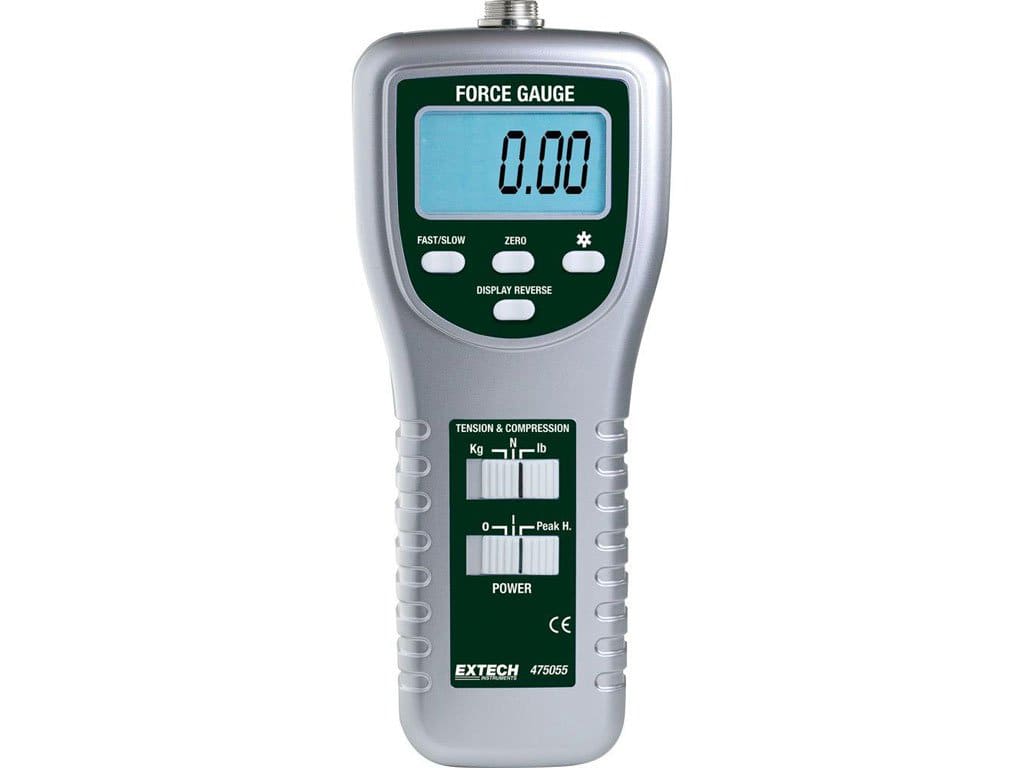

Extech 475055-NIST – High Capacity Force Gauge
36 people are viewing this product right now
$1,071.40
Shipping calculated at checkout.
Estimated delivery:4 days
Force Gauge W/NIST, 475055- <span style=”color:gray;”>PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.</span>
- Ranges: 0.05 to 100kg; 0.05 to 220lbs; 0.2 to 980 Newton
- Basic accuracy 0.5%
- Tension or Compression, Peak hold and Zero functions
- Positive/Reverse display for easy easy readability
- Large LCD with backlight feature
Guarantee Safe and Secure Payment Checkout
Description
Extech 475055-NIST
Peak hold and Zero functions
- Positive/Reverse display for easy easy readability
- Large LCD with backlight feature
- Basic accuracy 0.5%
- Tension or Compression, Peak hold and Zero functions
High Capacity Force Gauge
The 475055 is a High Capacity Force Gauge. Measuring ranges from 0.05 to 100-kilograms, 0.05 to 220-pounds, 0.2 to 980 Newton. Basic accuracy of 0.5-percent. Tension or Compression, Peak hold and Zero functions. Positive/Reverse display for easy readability. Large LCD with back light feature. Complete with tension and compression adaptors, 6 AA batteries and case.
Force / Torque / Hardness Meters/Force Meter Template | |
|---|---|
| Capacity | 150 KILOS (330.69 LBS) Capacity 1000kg, 220 lbs, 980N |
| Resolution (Force) | 0.05 KILOS (0.110 LBS) Resolution (Force) 0.05lbs, 0.05kg, 0.2 Newtons |
| Accuracy | ±(0.5%rdg + 0.1lbs, 0.1kg or 0.4N) |
| Compression Option | Yes |
| Programmable | No |
| Memory Capability | No |
| Process Output | No |
| Tare and Hold | No |
| Set Points | No |
Product General Attributes | |
| Unique Features | anges: 0.05 to 100kg 0.05 to 220lbs 0.2 to 980 Newton Basic accuracy 0.5% Tension or Compression, Peak hold and Zero functions Positive/Reverse display for easy easy readability Large LCD with backlight feature RS-232 PC interface Optional test stand and software Complete with tension and compression adaptors, six AA 1.5V batteries, and case |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232 Interfaces I/O Option for a 3.5mm phone jack to RS-232 |
| Product Weight | 1 LBS Product Weight Sensor: 0.84 lbs (380g) |
| Product Height | 3.5 IN |
| Product Length | 1.8 IN Product Length Meter: 8.5 x 3.5 x 1.8” (215 x 90 x 45 mm) |
| Product Width | 8.5 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration Calibration Included See Extech 475055-NIST for NIST calibrated variant |
| Battery Type | AA Battery Type six AA 1.5V batteries |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1 lbs |
|---|---|
| Dimensions | 1.8 × 8.5 × 3.5 in |
