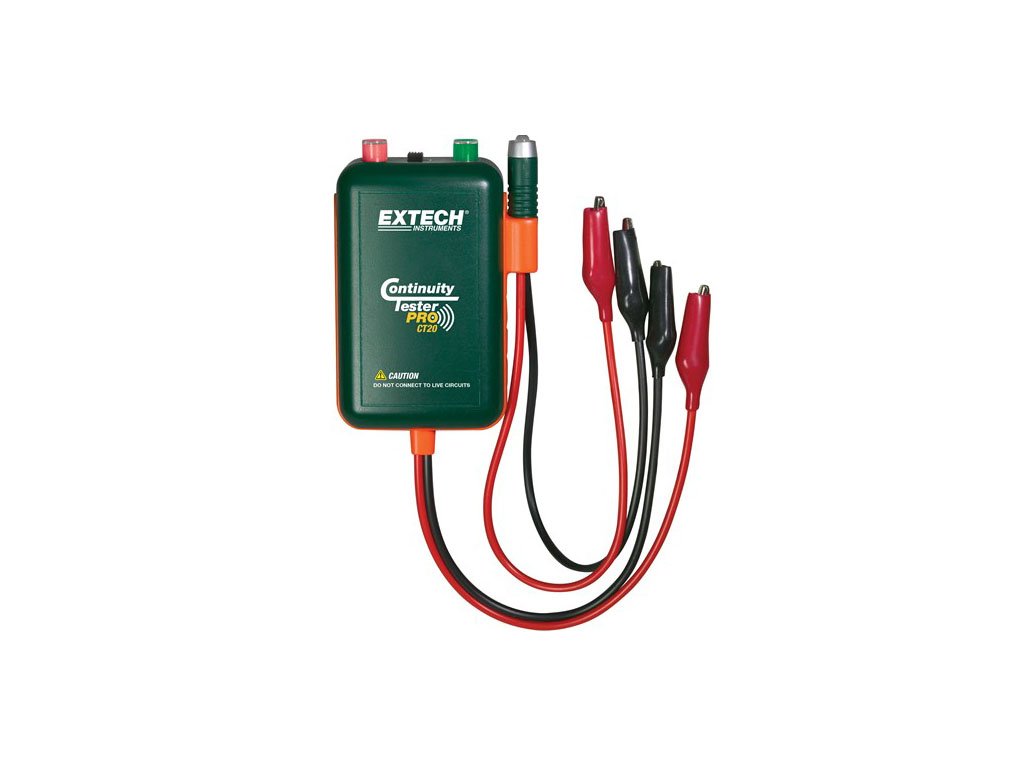

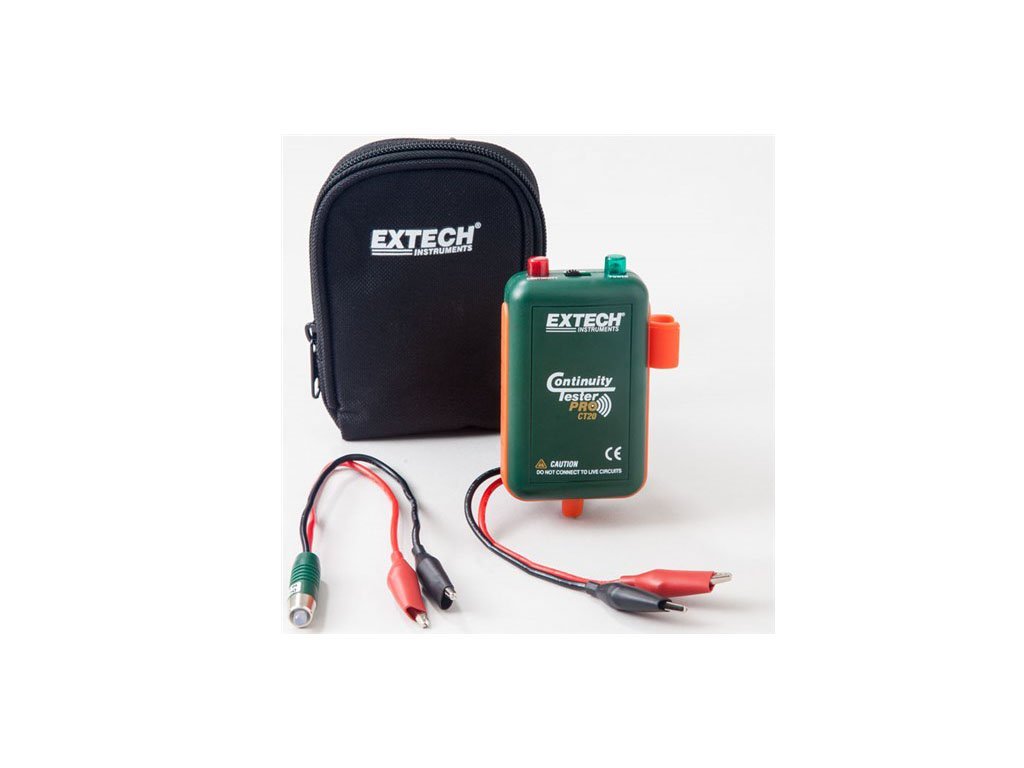

Extech CT20 – Remote & Local Continuity Tester

• Power supply:  9 Volt Battery
• Beeper:  85dB beeper
• Battery life:  Approx. 12 months with normal use.
• Continuity confirmation:  Equal to or less than 2.0 K Ohms
• Continuity drive current: Pulsed (2.0 Hz) 20 – 50mA at 10 Ohms and 2.0mA – 8.0mA at 1000 Ohms.
• Wire Verification Distance:  10,000 ft., 3,000 m (26 Gage min.)

One person operation for wire and cable testing

The CT20 is an electronic tool for electricians, alarm, cable installers and others who routinely need to check circuits for continuity and also identify cables and wires. It allows a single user to quickly identify and label two wires even when the wire ends are located in different rooms. It can accommodate test wire lengths up to 10,000-feet (3,000 meters), 26-gauge minimum. The CT20’s Remote Continuity mode allows the user to check continuity and to identify two or more cables/wires simultaneously.
