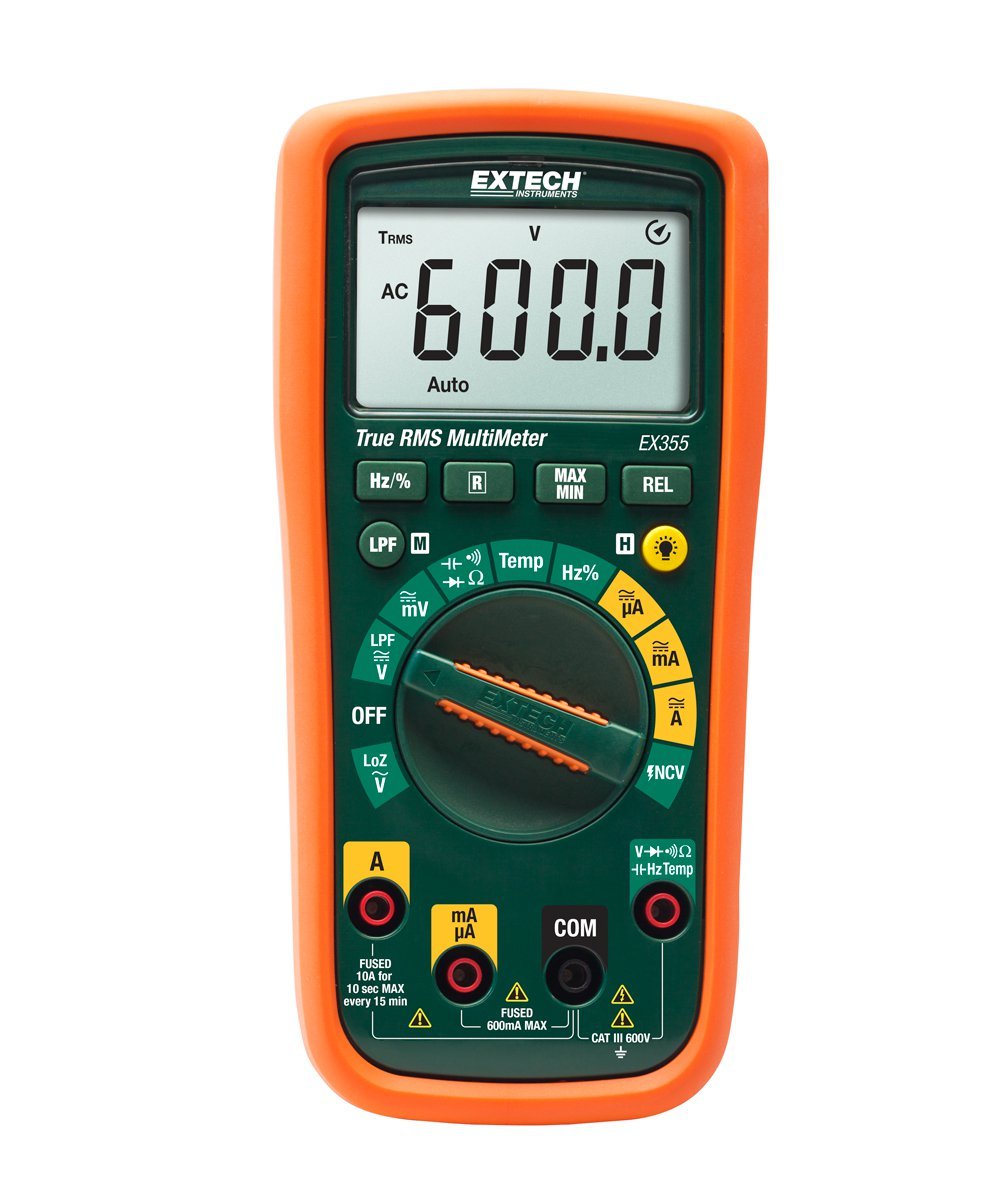

Extech EX355 – True RMS Multimeter + NCV
21 people are viewing this product right now
$117.68
Shipping calculated at checkout.
Estimated delivery:5 days
Multimeter, Professional TRMS w/NCV + Temp
- True RMS for accurate AC measurements
- 6000 count backlit LCD display
- Low Impedance (LoZ) prevents false reading caused by ghost voltages
- Low Pass Filter (LPF) for accurate measurements of variable frequency drive signals
- Built-in non-contact voltage detector (NCV) with LED indicator
- Functions include: NCV, AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Duty Cycle, Diode Test, Continuity
- Data Hold, Min/Max/Max-Min, Auto Power Off
- Relative Mode for Capacitance Zero and offset adjustment
- Complete with test leads, two AAA batteries and general purpose bead wire temperature probe
Guarantee Safe and Secure Payment Checkout
Description
Extech EX355
- Display counts: 6000
- Basic DCV Accuracy: ±0.5%
- NCV Detector: Yes
- DC/AC Voltage: 0.01mV to 600V
- DC/AC Current: 0.1µA to 10.00A
- Resistance: 0.1Ω to 60.00MΩ
- Capacitance: 1pF to 60.00mF
- Frequency: 0.001Hz to 10MHz
True RMS Multimeter + NCV
Professional DMM with Non-Contact Voltage Detector, Low Impedance, Low Pass Filter and Temperature
The EX355 is a professional DMM loaded with advanced features and functions. Low Impedance (LoZ) mode eliminates false readings caused by ghost voltages. Low Pass Filter (LPF)attenuates high frequencies to reduce noise for accurate readings. True RMS provides accurate readings when measuring distorted or noisy waveforms. Built-in Non-Contact AC Voltage Detector quickly checks for the presence of AC Voltage before testing. Features a 6000 count LCD display, data hold, min-max, relative mode, capacitance zero, auto power off, continuity and diode test. This meter will measure AC/DC voltage to 600 V and AC/DC current to 10 amps. Complete with test leads, general purpose bead wire temperature probe, manual and two AA batteries.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | ±0.5% |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | 0.1 to 99.9% |
Product General Attributes | |
| Unique Features | •LoZ prevents false readings caused by ghost voltages •Built-in Non-contact AC Voltage Detector (NCV) with LED indicator •Min/Max/Max-Min captures highest and lowest readings and the difference between them •Auto Power Off conserves battery life •Complete with test leads, two AA batteries, and general purpose bead wire temperature probe |
| Warranty | 3 YEARS |
| Safety Approval | CE, UL Safety Approval cULus |
| Product Weight | 370 GRAMS (0.816 LBS) |
| Product Height | 3.4 IN |
| Product Width | 7.1 IN |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| UPC | 793950393550 |
| Other Information | Depth: 2.2 in Temperature (Type K): -40 to 1832°F (-40 to 1000°C) |
You must be logged in to post a review.
Manuals/Guides
| Weight | 370 lbs |
|---|---|
| Dimensions | 7.1 × 3.4 in |
