Extech HDV600 – Video Borescopes

• Inspect in walls for mold, insect infestation, electrical wire or water pipe location
• Inspect inside ducts, behind motors & compressors
• View inside or around engines & transmissions
• Safety and security inspections
• Inspect weld integrity, process equipment, gears, molding machines
• Aircraft inspections for debris or damages

Inspect More. See More.

From the makers of the best test and measurement instruments comes a new generation of high-definition inspection cameras. Introducing the HDV600 videoscopes, designed for ruggedness, upgradable versatility, and high-definition clarity. HDV600 videoscopes feature a large color display, SD memory, LED illuminated handset probes, and glove-friendly controller handsets. Inspect more, see more, and find more with the Extech HDV600 VideoScope Series.

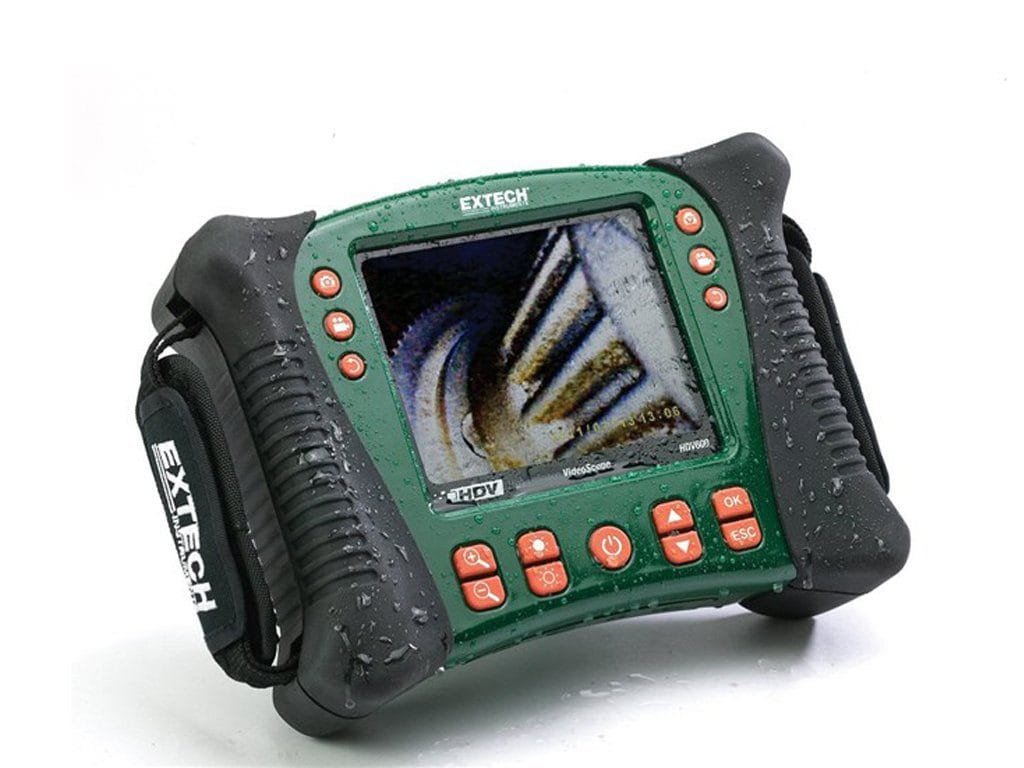

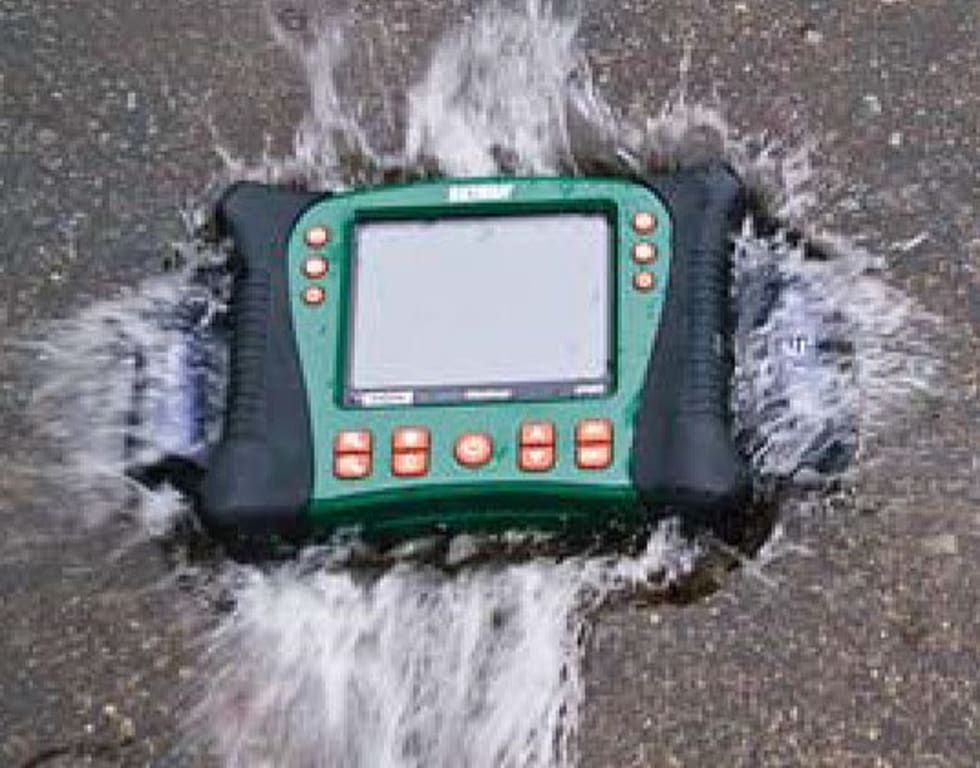

Extech’s durable display unit is built for tough job sites, ready to handle the unexpected drop off a ladder, or torrential rains at an outdoor facility.

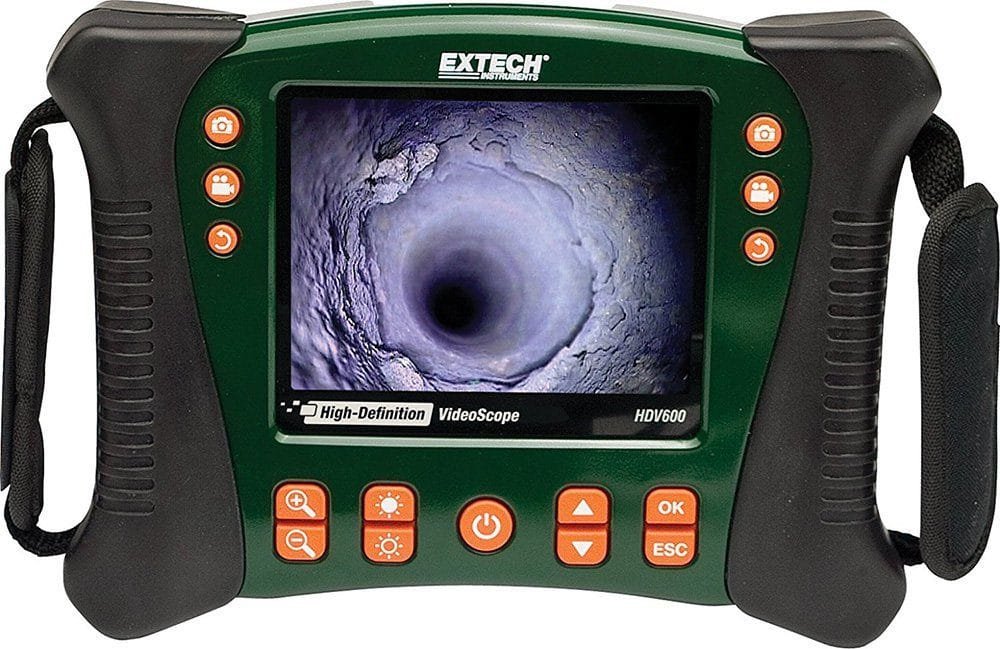

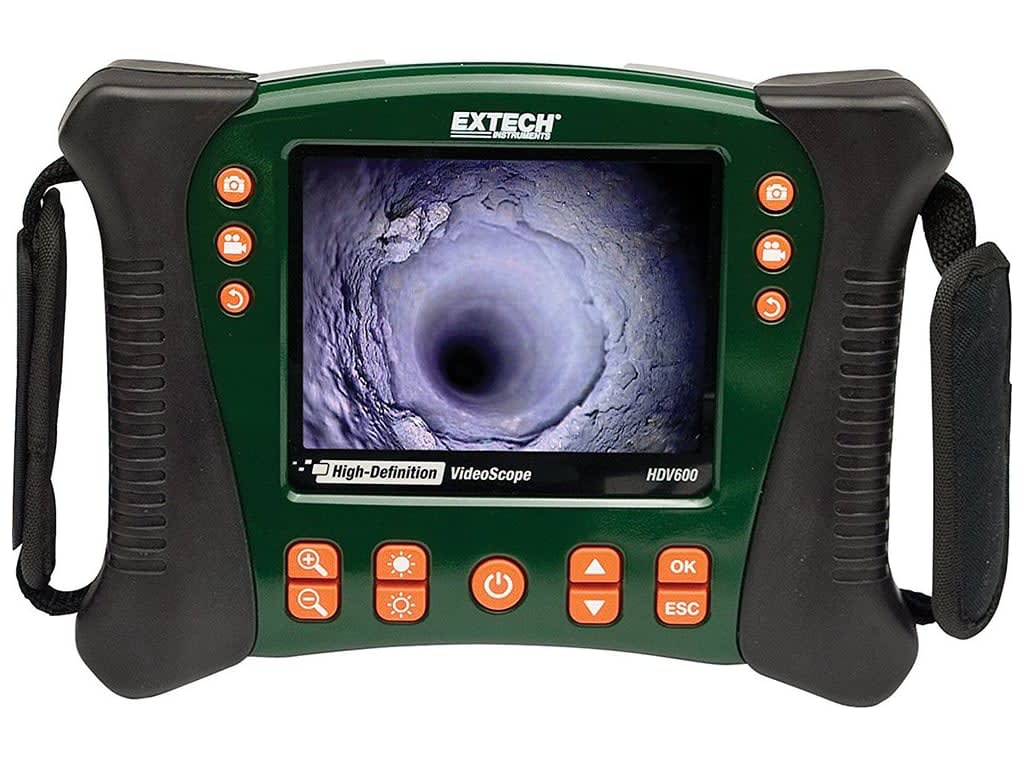

The HDV600 main display unit features a large 5.7″/14.5 cm LCD monitor (5.3″/13.5cm viewable) that is easy to view in bright outdoor sites, cramped and poorly lit industrial spaces, or aircraft maintenance facilities.

• Waterproof display unit
• Oil and chemical resistant
• Drop-proof to 2 meters (6.5′)
• Ergonomic, adjustable grips
• Left/right hand controls

• Industrial Processing & Manufacturing
• Heavy Equipment
• HVAC/Boilers
• Aerospace
• Government & Security
• Insurance
• Mining and Aggregate
• Aviation AOG and FBO
• Power Generation
• Building Inspection & Commissioning
• PetroChem/Refineries
• Infrastructure

Capture clear images and video you can use to quickly find and document problems. Select optics that are ideal for your job requirements. Record nearly 15,000 images or up to 4 hours of video on an easy to transfer SD memory card. Plus, audio annotations can be added to video clips, helping to minimize notetaking.

Learn how different optical camera tips available with the HDV600 videoscopes satisfy varying job requirements. Decide if one or both is right for your job knowing the HDV600 Series offers different optics mated to a range of probes.

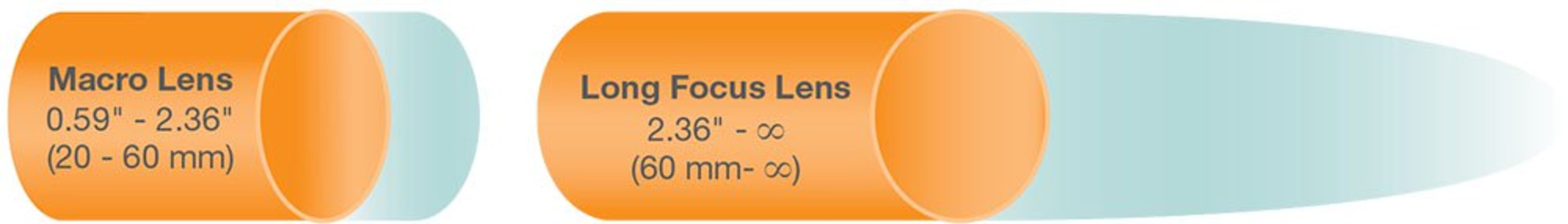

Macro (Short Focal Length) Lenses permit you to examine features and attributes that are up-close to the optical camera tip as illustrated above. For detail-intensive applications, such as turbine blade or boiler tube inspections, where up-close viewing is essential, select a macro tip with a diameter that is compatible with the width of access points or orifices available.

Long Focus Lenses permit you to see further in confined areas. These are ideal for viewing concealed areas or large, otherwise inaccessible locations where areas needing inspection may not be immediately adjacent to the optical tip.

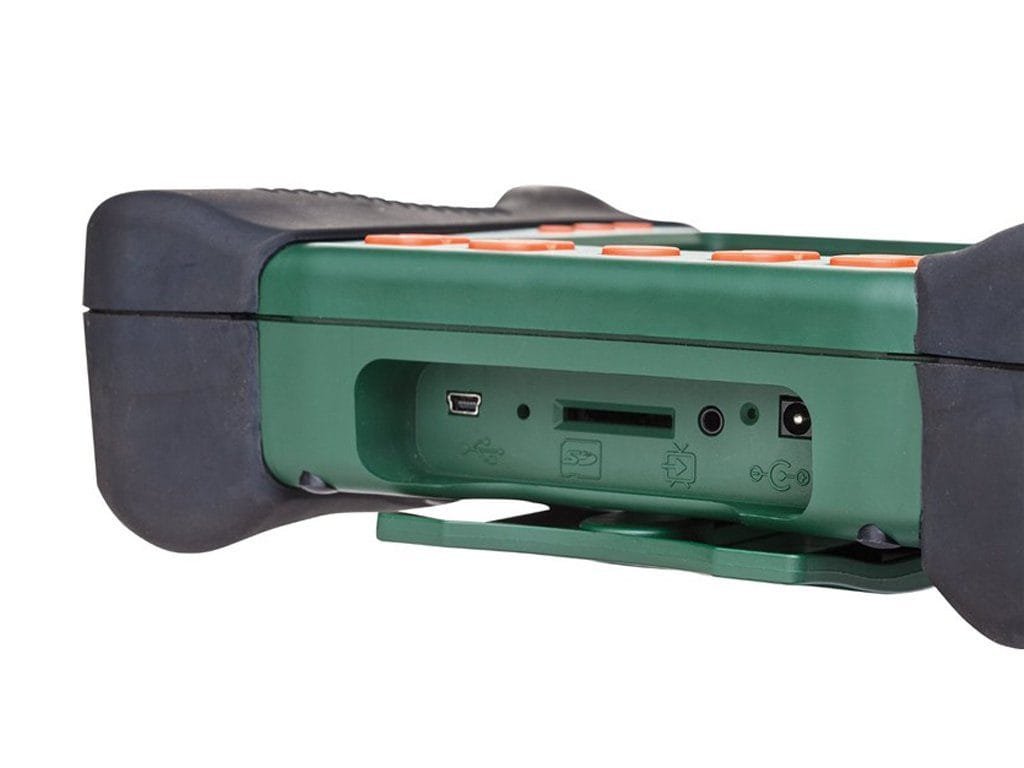

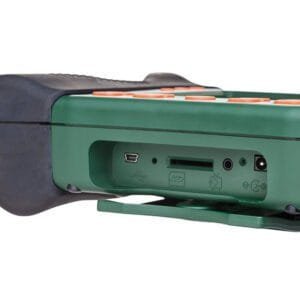

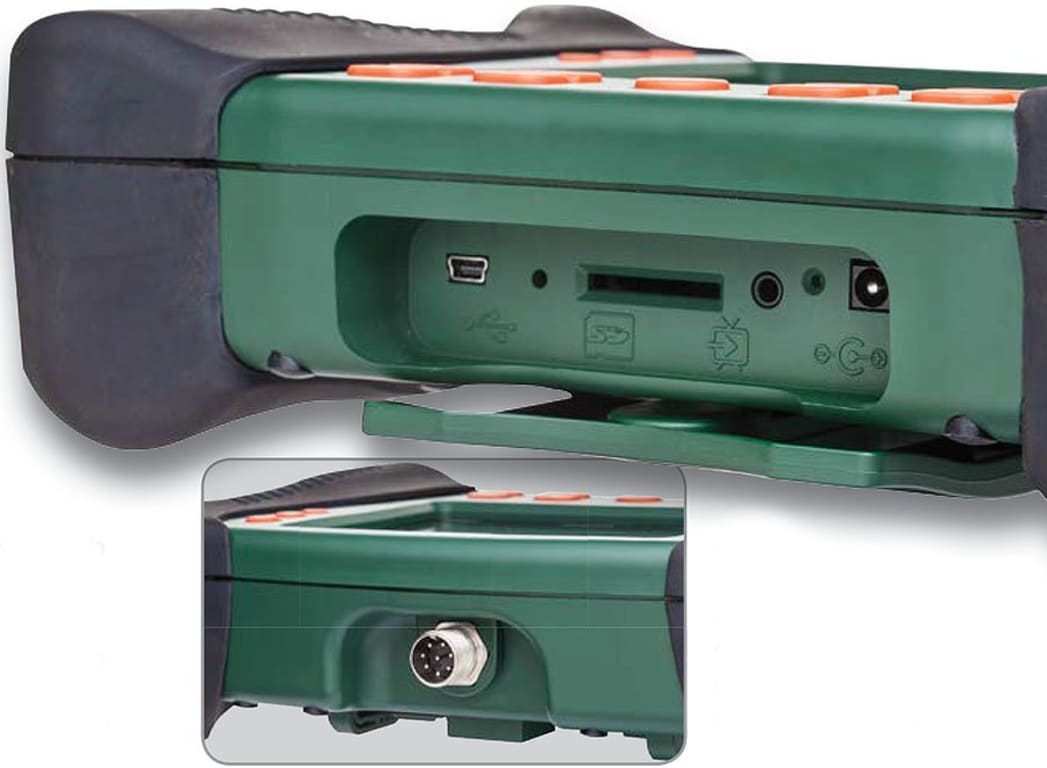

Top: USB, microphone, SD, video out, reset and AC inputs

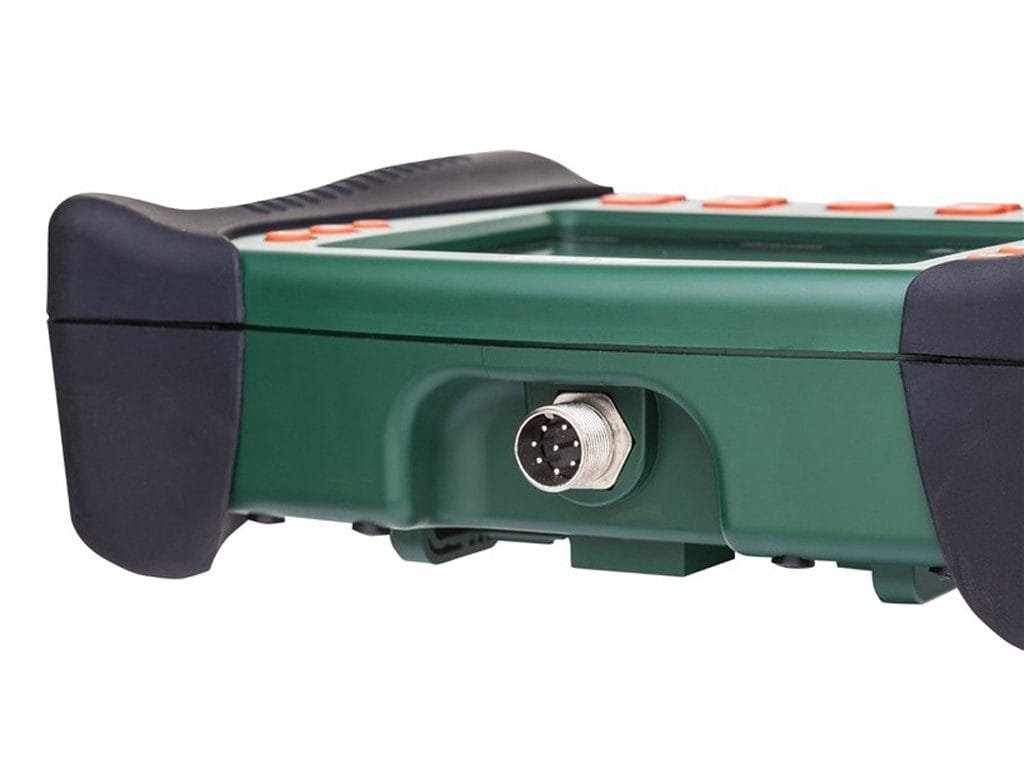

Left: Probe connector

• 640 x 480 VGA pixel resolution* (*320 x 240 for 4mm camera)
• Macro & long focal length optics available
• Easy-to-transfer SD card
• 15,000 JPEG images
• Up to 4 hours AVI video
• 30 fps frame rate (NTSC & PAL)
• Audio annotation

More Convenience. More Control

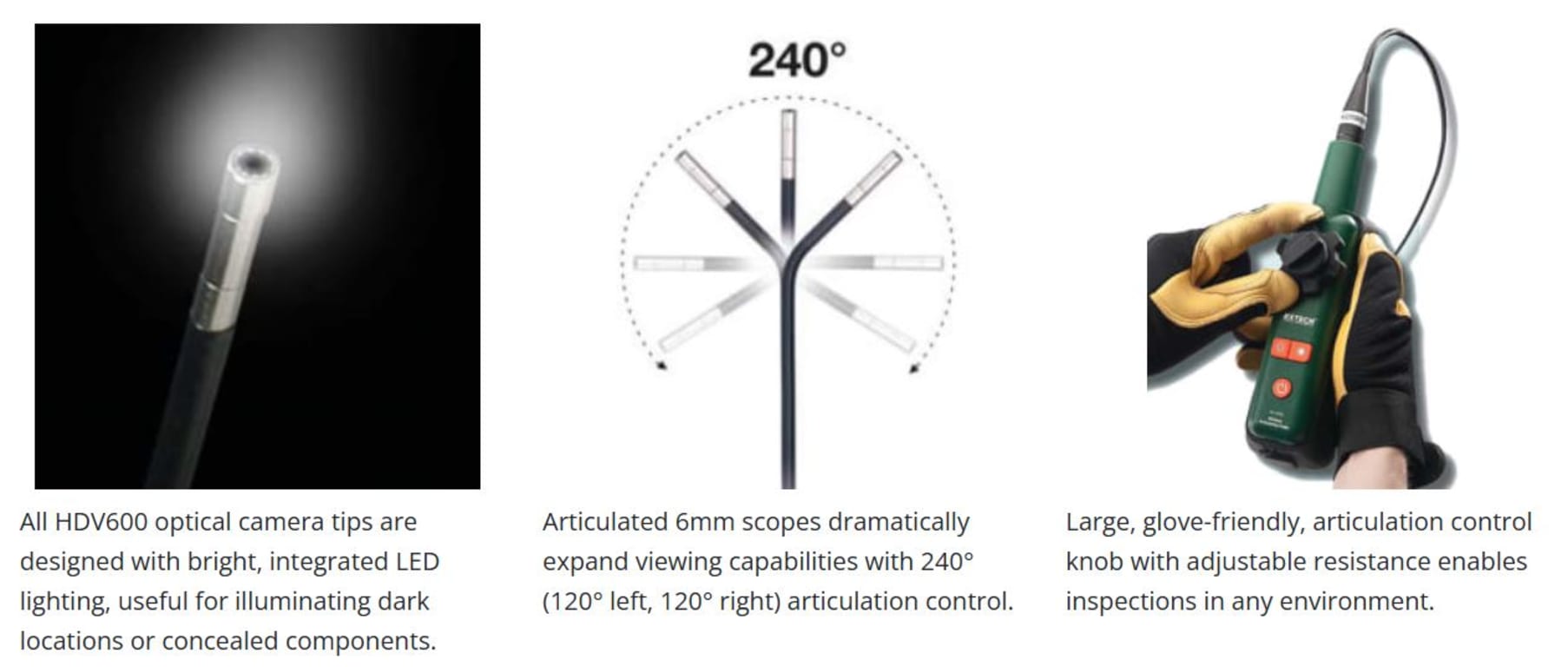

Access impressive versatility with a range of options designed to ensure the right scope for the job, without sacrificing upgrade ability. In addition to probes which connect directly to the main display unit, handset-mounted probes make it easier than ever to inspect difficult-to-access areas.

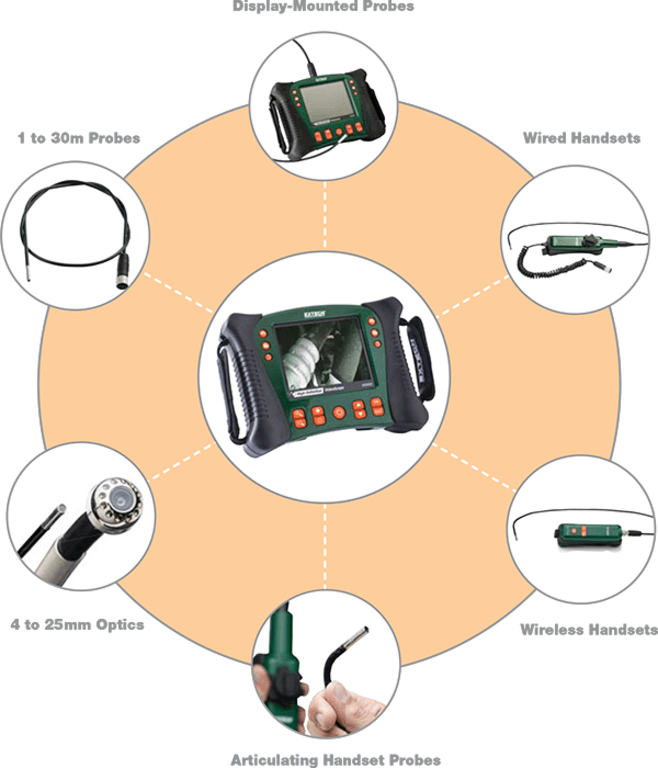

Options include:

• Scope probes connected to videoscope main unit
• Wired handset scope probes (also available separately)
• Wireless handset scope probes for inspections up to 10m away(also available separately)
• Articulating handset probes (wired and wireless models available)
• Semi-rigid, flexible, and long-length scopes available
• Scope lengths range from 1m to 30m
• 4-25mm diameter optics including macro and long focal length options
