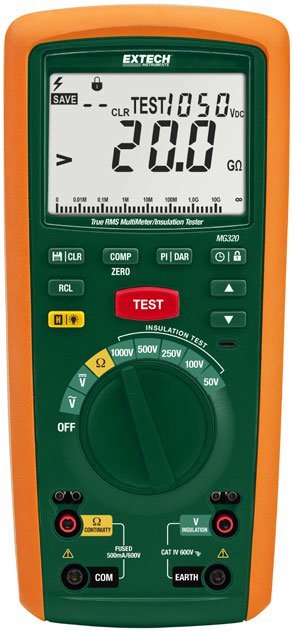

Extech MG320 – CAT IV Insulation Tester/True RMS Multimeter
18 people are viewing this product right now
Original price was: $463.41.$329.98Current price is: $329.98.
Shipping calculated at checkout.
Estimated delivery:5 days
CAT IV Insulation Tester/TRMS Multimeter
- Measure Insulation Resistance to 20GΩ
- 5 Test Voltage ranges
- Polarization Index (PI) and Dielectric Absorption Ratio measurements (DAR)
- Low Resistance measurement with Zero function
- Programmable Timer feature sets the duration of test
- Comparison Mode allows user to set the Pass/Fail values for insulation measurements
- Step Voltage (10% steps at 50% to 120% of range)
- Auto-discharge of voltage test signal
- Lock Power On Function for hands-free operation
- Manually store/recall up to 99 readings
Guarantee Safe and Secure Payment Checkout
Description
Extech MG320
- Insulation Resistance: 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ
- Insulation Test Voltages: 50V, 100V, 250V, 500V, 1000V
- AC/DC Voltage: 600V
- Resistance: 20kΩ
- Continuity: Yes
CAT IV Insulation Tester/True RMS Multimeter
20GΩ/1000V Insulation Tester with a True RMS MultiMeter
Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| CAT Rating | IV |
| CAT Voltage | 600 V |
Product General Attributes | |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 1.5 LBS |
| Product Height | 2.3 IN |
| Product Length | 8.9 IN |
| Product Width | 4.1 IN |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 8.9 × 4.1 × 2.3 in |
