Extech MN36 – Digital Mini Multimeter
8 people are viewing this product right now
Original price was: $47.28.$32.98Current price is: $32.98.
Shipping calculated at checkout.
Estimated delivery:5 days
Multimeter, Autoranging
- Large easy to read digital display
- AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
- Convenient mini size with protective rubber holster and tilt stand
- Data Hold locks reading in the display
- Includes protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads
Guarantee Safe and Secure Payment Checkout
Description

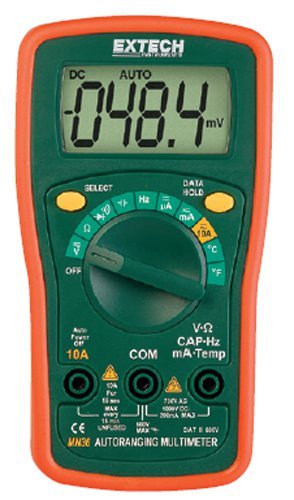

Extech MN36
- Frequency: 5MHz (0.01Hz)
- Capacitance: 100µF (0.001nF)
- Temperature: -4 to 1400°F (1°) -20 to 750°C
- Resistance: 40MΩ (0.1µΩ
- AC Current: 10A (0.1µA)
Digital Mini Multimeter
Compact Autoranging multimeters with 10 functions including Temperature
The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with a protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 V (100 mV) |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Resolution DC Current | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | ± 0.8% Rdg + 4D |
| Counts | 3999 . |
| Backlight | No |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | II |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | Large Easy to Read Digital Display, Convenient Mini Size with Protective Rubber Holster and Tilt Stand |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Shipment, This Warranty does not Apply to Defects Resulting from Action of the User such as Misuse, Improper Wiring, Operation Outside of Specification, Improper Maintenance or Repair, or Unauthorized Modification |
| Product Weight | 5.4 OUNCES (0.338 LBS) |
| Product Height | 1.5 IN |
| Product Length | 5.43 IN |
| Product Width | 2.83 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030840000 HTS/Schedule B Number Value not available |
| ECCN Number | EAR99 ECCN Number Value not available |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered Power Supply Voltage Battery Operated Device |
| Country of Origin | China Country of Origin Value not available |
You must be logged in to post a review.
Manuals/Guides
| Weight | 5.4 lbs |
|---|---|
| Dimensions | 5.43 × 2.83 × 1.5 in |
