Extech MO290 Moisture Meters – Measurement Methods (Moisture Meter): Pin, Pinless, Materials Tested: Wood, Measure Temperature: Yes
15 people are viewing this product right now
$625.90
Shipping calculated at checkout.
Estimated delivery:3 days
8-in-1 Pinless Moisture Psychrometer + IR Thermometer. (Pin-type Moisture Probe included).
- Programmable high/low Moisture and Humidity alarms
- Designed with an IR circuit to measure non-contact surface temperature; 8:1 distance to spot ratio with 0.95 fixed emissivity
- Built-in Humidity/Temperature probe measures Relative Humidity, Air Temperature plus Grains Per Pound (GPP)/(g/kg), Dew Point (DP), Vapor Pressure, and condensation point
- Automatic calculation of differential Temperature (IR – DP) to determine condensation point
- Min/Max and Data Hold
- Auto power off and low battery indication 4-20mA input with readout in 9 units of measure Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC User can select the data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
- Triple LCD simultaneously displays 3 pressure channels Connect to installed transducers (up to 5000psi with 4-20mA output) or optional 30psi, 150psi or 300psi transducers listed below Quickly indicates the moisture content of materials with Pinless technology without damaging the surface; Remote Pin-type probe (MO290-P included) allows for contact moisture readings (3ft/0.9m cable length)
- Works on multiple wood types and other building materials
- Easy to read, large dual display with automatic backlight feature
- Simultaneously displays moisture value of wood or material being tested, Air Temperature, IR Temperature, or Humidity
- Pinless measurement depth to 0.75″(19mm) below the surface
Guarantee Safe and Secure Payment Checkout
Description
Extech MO290
- Automatic calculation of differential Temperature (IR – DP) to determine condensation point
- Easy to read, large dual display with automatic backlight feature
- Pinless measurement depth to 0.75″(19mm) below the surface
- Min/Max and Data Hold
- Works on multiple wood types and other building materials
Pinless Moisture Psychrometer + IR and MO290-P Pin Moisture Probe
The MO290 is an 8-in-1 meter that combines a Pin/Pinless Moisture Meter with a built-in InfraRed Thermometer. Additional measurements include: Temperature, Humidity, Grains per Pound, Dew Point, Vapor Pressure, and Condensation Point. Monitor moisture in wood and other building materials with virtually no surface damage with the Pinless Moisture sensor (Pin-type Moisture Probe included). Measure Humidity and Air Temperature with built-in probe plus non-contact InfraRed Temperature design.
Measure moisture of wall material with non-invasive Pinless technology

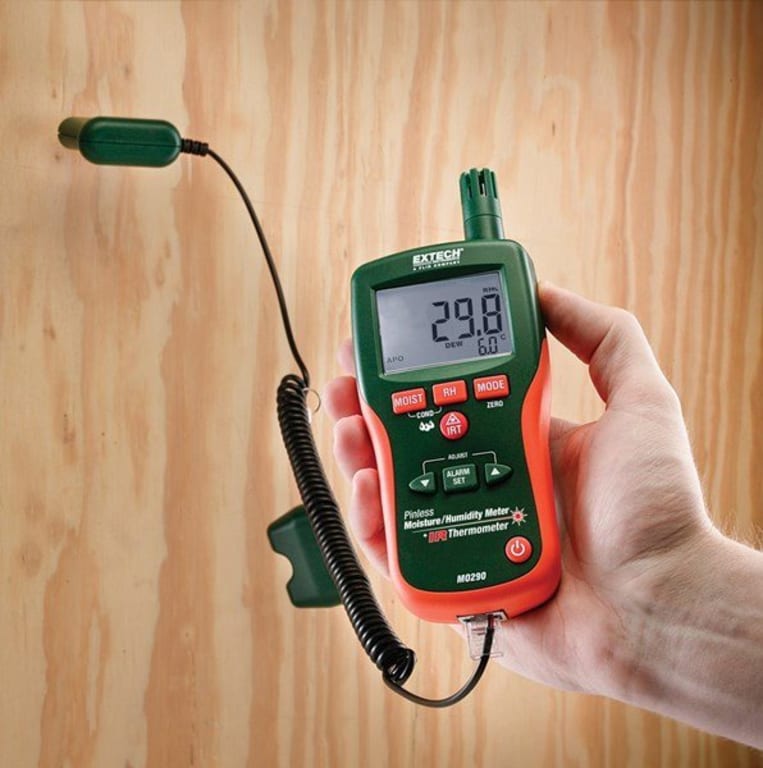

Pin Moisture Probe included for making contact moisture measurements
Patented IR thermometer design locates cold spots on walls, which identifies surfaces subject to condensation (direct differential display of IR – DP)

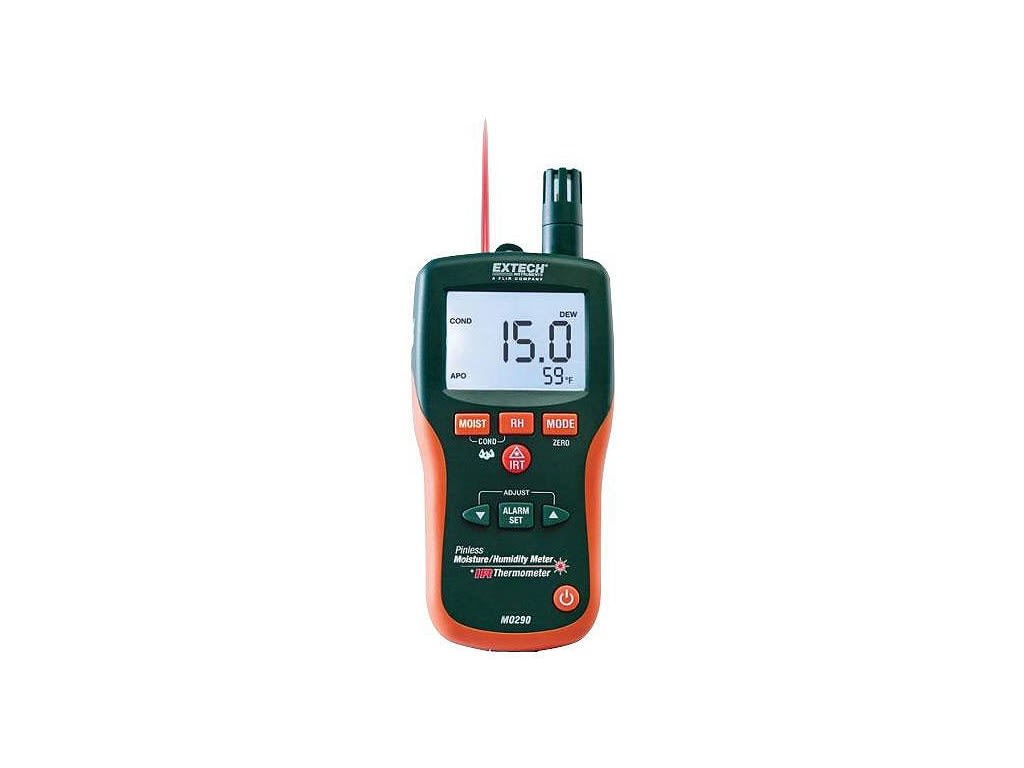

Meter Description
1. IR temperature sensor
2. Laser pointer
3. Humidity sensor
4. Temperature sensor
5. LCD display
6. Relative Humidity button
7. Mode/Zero Button
8. IR thermometer button
9. Alarm set button
10. Alarm adjust down button
11. ON/OFF power button
12. Remote pin probe input jack (bottom)
13. Battery compartment (rear)
14. Alarm adjust up button
15. Moisture/Relative button
16. Protective cap

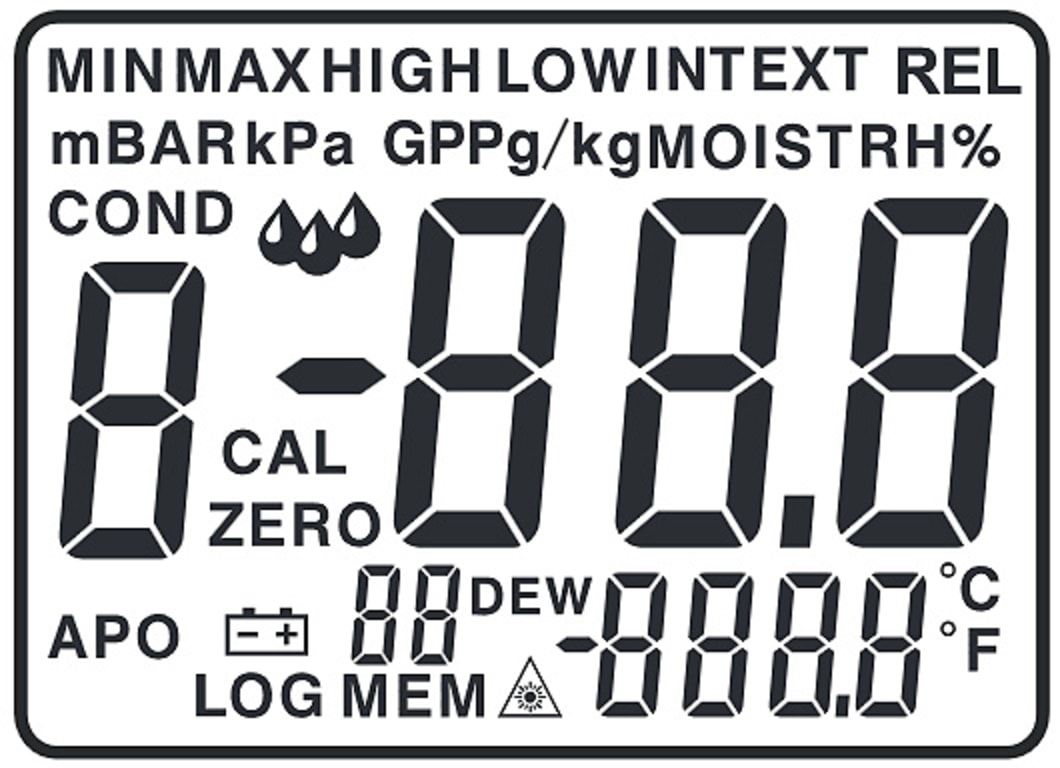

LCD Display
1. MIN MAX – Minimum and maximum value
2. HIGH LOW – Alarm limits
3. INT EXT – Internal/External probe
4. mBar – Vapor pressure
5. kPa – Vapor pressure
6. GPP – Grains per Pound
7. g/kg – Grains per kilogram
8. MOIST – Moisture mode
9. RH% – Relative Humidity mode
10. COND – Condensation mode
11. APO – Auto power off
12. DEW – Dew Point temperature
13. C/F – Temperature units
14. – Low battery
15. MEM – Memory location indicator
General Attributes | |
|---|---|
| Warranty | 1 YEARS |
| Product Weight | 7.4 OUNCES (0.462 LBS) Product Weight 210 gr. |
| Product Height | 2.8 IN |
| Product Length | 1.5 IN Product Length 165x70x38mm |
| Product Width | 6.5 IN |
| Country of Origin | China |
Environmental Testers / Physical Property/Moisture Meters Template | |
| Measurement Methods (Moisture Meter) | Pin, Pinless |
| Materials Tested | Other, Wood |
| Measure Temperature | Yes |
| Measure Humidity | Yes |
| Dew Point | Yes |
| Data Hold | Yes |
| Self Calibration | No |
| Min/Max Memory | Yes |
Product General Attributes | |
| Unique Features | 8-in-1 Meter with Patented Built-in IR Thermometer Monitor moisture in wood and other building materials with virtually no surface damage with the Pinless Moisture sensor (Pin-type Moisture Probe included). Measure Humidity and Air Temperature with built-in probe plus non-contact InfraRed Temperature with patented IR design. |
| Safety Approval | CE |
| Data Logging | No |
| Calibration Included | Factory Calibration Calibration Included See Extech MO290-NISTL for NIST certification |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
| Weight | 7.4 lbs |
|---|---|
| Dimensions | 1.5 × 6.5 × 2.8 in |
