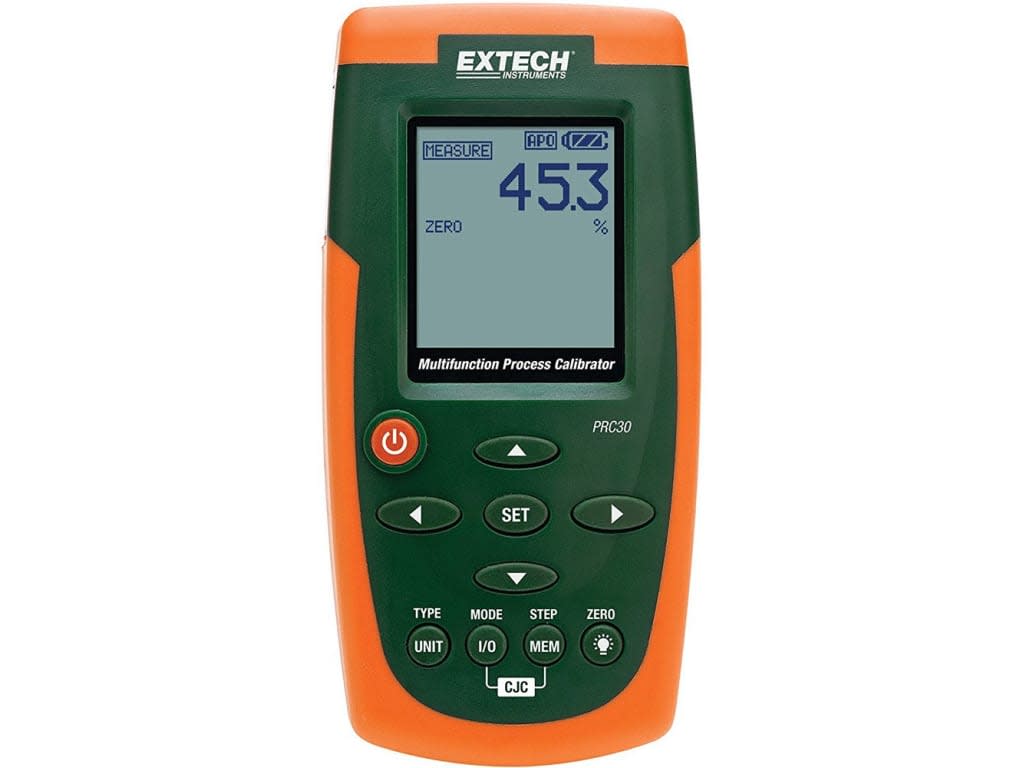

Extech PRC30 – Multifunction Process Calibrator
12 people are viewing this product right now
$713.90
Shipping calculated at checkout.
Estimated delivery:3 days
Multifunction Calibrator
- Palm-sized double molded housing and large dot-matrix backlit LCD
- Measures DC process signals
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Up to five user adjustable calibration presets
- Displays output in terms of millivolts or temperature based on thermocouple tables
- 24V Loop Power
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple inputs
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Guarantee Safe and Secure Payment Checkout
Description
Extech PRC30
- Zero adjustments, auto zero when power on and change mode
- 24V Loop Power
- Up to five user-adjustable calibration presets
- External power adapter for continuous work cycle
- Displays output in terms of millivolts or temperature based on thermocouple tables
Multifunction Process Calibrator
Precision Current & Voltage & Thermocouple Source/Measure Calibrator
The PRC30 is a Multifunction Process Calibrator. This calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices. Featuring 24 volt loop power, five user adjustable calibration presets, and temperature output in Fahrenheit, Celsius, and millivolts.
Applications
- Lab and Field Calibration and Verifi cation Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
- Temperature Control Process Troubleshooting
- Process devices calibration and simulation: Transducers, Transmitters, Indicators, Controllers, and Recorders
- Field test and service
- Bench research and development
Process / Calibration/Multifunction Calibrators Template | |
|---|---|
| Type | Hand Held |
Product General Attributes | |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Safety Approval | CE |
| Product Weight | 8.4 OUNCES (0.525 LBS) |
| Product Height | 1.7 IN |
| Product Length | 6.3 IN |
| Product Width | 3.2 IN |
| HTS/Schedule B Number | 9025.80.1000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA Battery Type six 1.5V AA batteries |
| Power Supply Voltage | 120V/220V Universal, Battery Powered Power Supply Voltage 100V-240V AC Universal Adaptor with 4 plugs, |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 8.4 lbs |
|---|---|
| Dimensions | 6.3 × 3.2 × 1.7 in |
