Extech PRC30-NIST – Multifunction Process Calibrator w/NIST
8 people are viewing this product right now
$928.40
Shipping calculated at checkout.
Estimated delivery:5 days
Multifunction Calibrator W/NIST- <span style=”color:gray;”>PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.</span>
- Palm-sized double molded housing and large dot-matrix backlit LCD
- Measures DC process signals
- High accuracy calibration function simulates precision thermocouple outputs for use in calibrating thermometers, transmitters, controllers or recorders
- Up to five user adjustable calibration presets
- Displays output in terms of millivolts or temperature based on thermocouple tables
- 24V Loop Power
- Zero adjustment, auto zero when power on and change mode
- Standard banana I/O ports and mini thermocouple inputs
- Large battery bank for extended work cycle
- External power adapter for continuous work cycle
Guarantee Safe and Secure Payment Checkout
Description
Extech PRC30-NIST
- Up to five user-adjustable calibration presets
- External power adapter for continuous work cycle
- Displays output in terms of millivolts or temperature based on thermocouple tables
- Zero adjustments, auto zero when powered on and change mode
- 24V Loop Power
Multifunction Process Calibrator w/NIST
Precision Current & Voltage & Thermocouple Source/Measure Calibrator

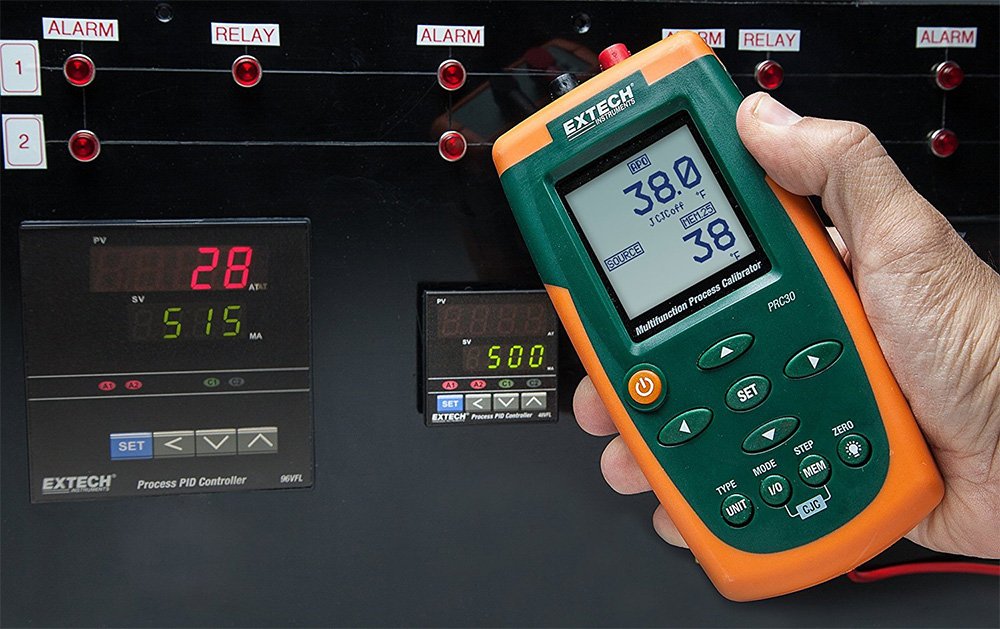

The PRC30 is a Multifunction Process Calibrator. This calibrator provides precision sourcing and measurements for thermocouples (eight types), current (mA), and voltage (mV and V) devices. Featuring 24 volt loop power, five user-adjustable calibration presets, and temperature output in Fahrenheit, Celsius, and millivolts.
Applications
- Lab and Field Calibration and Verification Operations of Sensors, Thermocouple Probes, Controllers, Panel meters & Testing tools.
- Temperature Control Process Troubleshooting
- Process devices calibration and simulation: Transducers, Transmitters, Indicators, Controllers, and Recorders
- Field test and service
- Bench research and development
Process / Calibration/Multifunction Calibrators Template | |
|---|---|
| Type | Hand Held |
Product General Attributes | |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Safety Approval | CE |
| Product Weight | 8.4 OUNCES (0.525 LBS) |
| Product Height | 1.7 IN |
| Product Length | 6.3 IN |
| Product Width | 3.2 IN |
| Calibration Included | NIST Calibration |
| Battery Type | AA Battery Type six 1.5V AA batteries |
| Power Supply Voltage | 120V/220V Universal, Battery Powered Power Supply Voltage 100V-240V AC Universal Adaptor with 4 plugs, |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
| Weight | 8.4 lbs |
|---|---|
| Dimensions | 6.3 × 3.2 × 1.7 in |
