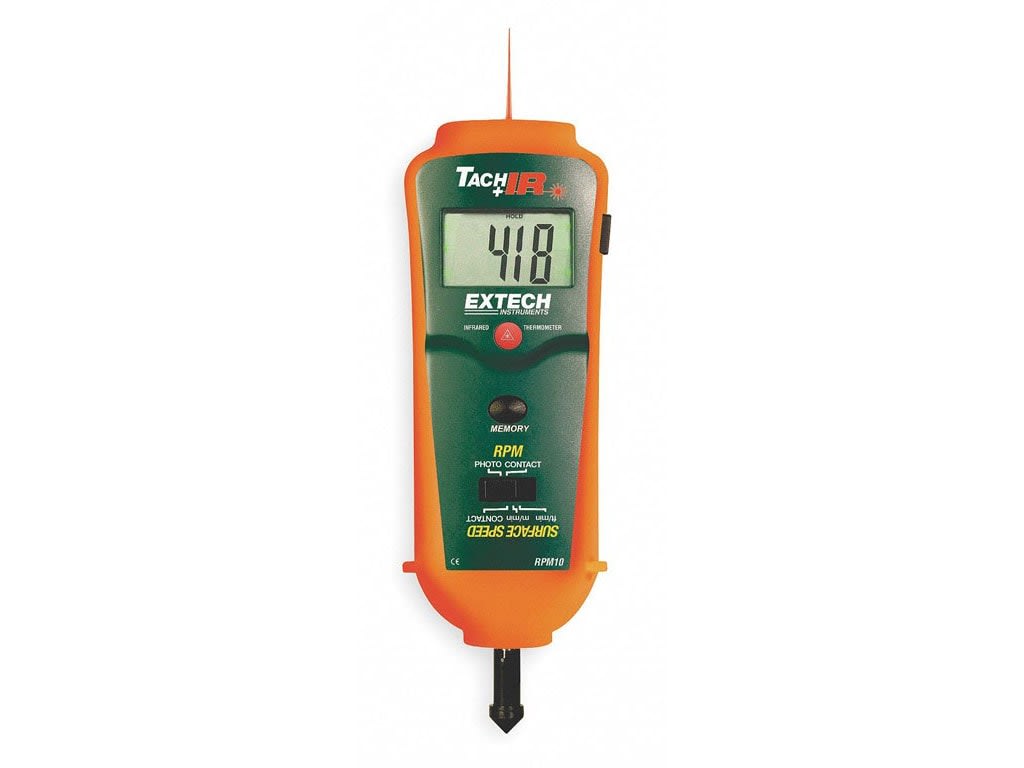

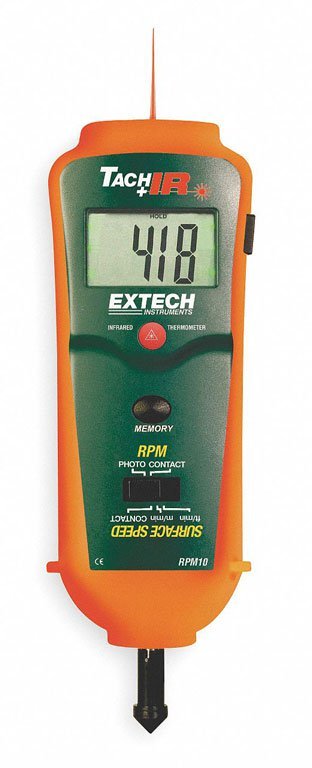

Extech RPM10-NIST – Photo/Contact Tachometer with built-in InfraRed Thermometer with NIST Calibration
22 people are viewing this product right now
$530.73
Shipping calculated at checkout.
Estimated delivery:3 days
Tachometer/IR W/NIST RPM10- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.
- Built-in IR thermometer with laser measures remote surface temperature on motors and rotating parts
- Wide Temperature range of -4 to 600°F (-20 to 315°C)
- Fixed 0.95 emissivity, 6:1 distance to target ratio
- Provides wide RPM (photo and contact) and Linear Surface Speed (contact) measurements
- Accurate to 0.05% with max resolution of 0.1rpm in either photo or contact mode
- Large 0.4″ (5 digit) LCD display
- Non-contact Photo tachometer uses a Laser for greater measuring distance up to 6.5ft (2m)
- Contact tachometer for RPM and surface speed measurements
- Memory stores Min/Max/Last
- Characters on display reverse direction depending on mode
- Double molded housing
Guarantee Safe and Secure Payment Checkout
Description
Extech RPM10-NIST
- Double molded housing
- Non-contact Photo tachometer uses a Laser for greater measuring distance up to 6.5ft (2m)
- Fixed 0.95 emissivity, 6:1 distance to target ratio
- Contact tachometer for RPM and surface speed measurements
- Memory stores Min/Max/Last
Photo/Contact Tachometer with built-in InfraRed Thermometer with NIST Calibration
The RPM10 is a combination tachometer that provides both contact and non-contact RPM measurements, making this device useful in virtually all applications. The RPM10 also features a built-in IR thermometer with laser pointer for measuring surface temperature from -4 to 600 degrees F (-20 to 315 degrees C), making it ideal for checking the operating temperature of motors, bearings, and machinery. Complete with wheels for linear surface speed (0.2 to 6560 ft. /minute; 0.05 to 1999.9 m/minute) or RPM measurements, 4 AA batteries, 23 in. (0.6 m) reflective tape, carrying case, and user manual.
Reliability / Preventative Maint / Rotational/Tachometers Template | |
|---|---|
| Detection Type | Contact, Non-Contact Photo |
| Display (Tachometer) | LCD |
| Style of Tachometer | Handheld |
| Max Working Distance for Non-Contact | 6.5 Ft |
| Max RPM | 99999 RPM |
| Min RPM | 0.5 RPM |
| Measurement Modes | Last, Maximum, Minimum |
| Accuracy for Tachmometers | ±(0.05%rdg+1 digit) |
| Memory(Tachometers) | Yes |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
