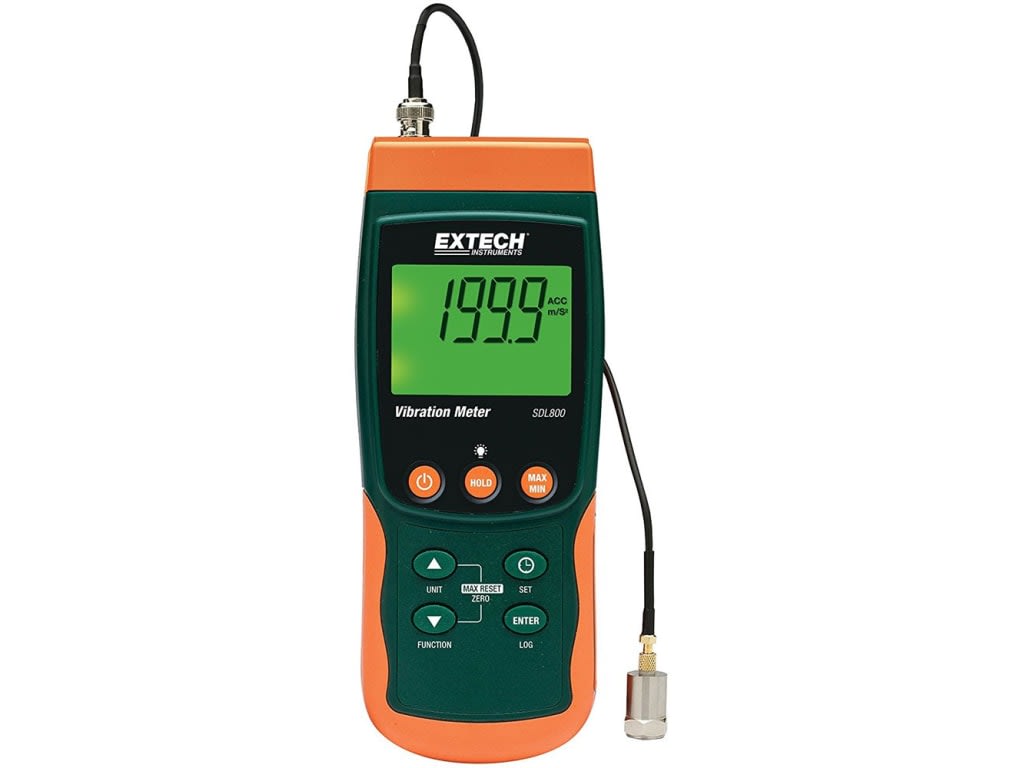

Extech SDL800-NIST – Vibration Meter/Datalogger
10 people are viewing this product right now
$1,393.15
Shipping calculated at checkout.
Estimated delivery:5 days
Vibration Meter SD Logger W/NIST- PLEASE NOTE: If not in stock: NIST calibration takes between 7-14 days once stock is available.
- Remote vibration sensor with magnetic adapter on 47.2″ (1.2m) cable
- Wide frequency range of 10Hz to 1kHz
- Large backlit LCD
- Stores 99 readings manually and 20M readings via SD card
- Record/Recall MIN, MAX readings
- Data Hold plus Auto power off with disable function
- Basic accuracy of ±(5% + 2 digits); Meets ISO2954
- RMS, Peak Value or Max Hold measurement modes
- Adjustable data sampling rate: 1 to 3600 seconds
- Datalogger date/time stamps and stores readings on an SD card in Excel ® format for easy transfer to a PC
- Offset adjustment used for zero function to make relative measurements
Guarantee Safe and Secure Payment Checkout
Description
Extech SDL800-NIST
- Adjustable data sampling rate: 1 to 3600 seconds
- Built-in PC interface
- Stores 99 readings manually and 20M readings via 2G SD card
- Record/Recall MIN, MAX readings
- RMS, Peak Value or Max Hold measurement modes
Vibration Meter/Datalogger
Records data on an SD card in Excel format
The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2″(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format.
Reliability / Preventative Maint / Rotational/Vibration Meter Template | |
|---|---|
| Velocity Resolution | 0.1 mm/sec |
| Accerlation Range | 200 m/sec2 |
| Accerlation Resolution | 0.1 m/sec2 |
| Frequency Range | 1 kHz (1000 Hz) |
| Single Axis Measurement | No |
| Tri-Axial Measurement | No |
| Tachometer Capability | No |
| Peak/Hold | Yes |
Product General Attributes | |
| Unique Features | Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC Selectable data sampling rate: 1 to 3600 second Manually datalog up to 99 readings Basic accuracy of ±(5% + 2 digits) RMS, Peak Value or Max Hold measurement modes Data Hold freezes the reading in the display Zero function Auto shut-off saves battery life Meets ISO2954 |
| Warranty | 3 YEARS |
| Safety Approval | CE |
| Interfaces I/O | RS-232 |
| Storage | SD Card |
| Product Weight | 21.1 OUNCES (1.32 LBS) |
| Product Height | 2.9 IN |
| Product Length | 1.9 IN |
| Product Width | 7.2 IN |
| Data Logging | Yes |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec SheetsApplication Notes
| Weight | 21.1 lbs |
|---|---|
| Dimensions | 1.9 × 7.2 × 2.9 in |
