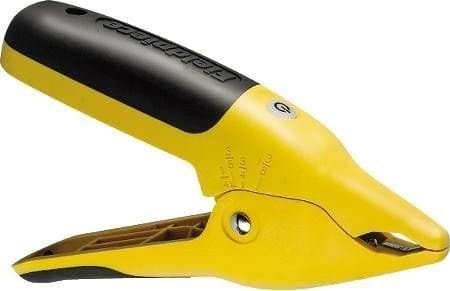

Fieldpiece JL3PC – Job Link System Premium Pipe Clamp Probe

• Pipe clamp probe for Job Link systems
• Compatible with SM380V and SM480V
• Powerful 350′ wireless range w/no transmitter required
• Communicates with Job Link App
• Needle nose to fit in tight spaces

The Fieldpiece JL3PC pipe temperature wireless clamps feature patent pending Rapid Rail Sensor Technology that uses electrically conductive pipe to complete the circuit so readings stabilize in 3 seconds and are not affected by ambient air. One beep with a slow green blinking light indicates a closed circuit. If the pipe is corroded the circuit will be open and will not read temperature. The clamp will indicate the open loop with a double beep and rapid blinking light. Simply clean the pipe to enable the circuit to be closed and allow fast readings with +/- 1° F accuracy.

350′ Wireless Range

Connect pipe clamps directly to the Job Link app, or connect directly to the new SM380V or SM480V refrigerant manifolds. There is no JL2 transmitter required for either application.
