Fieldpiece SM382V – Package with 3 Port Wireless Refrigerant Manifold and Fieldpiece HR3B Ball Valve Hose Set

• Package with Fieldpiece SM382V and HR3B hose set

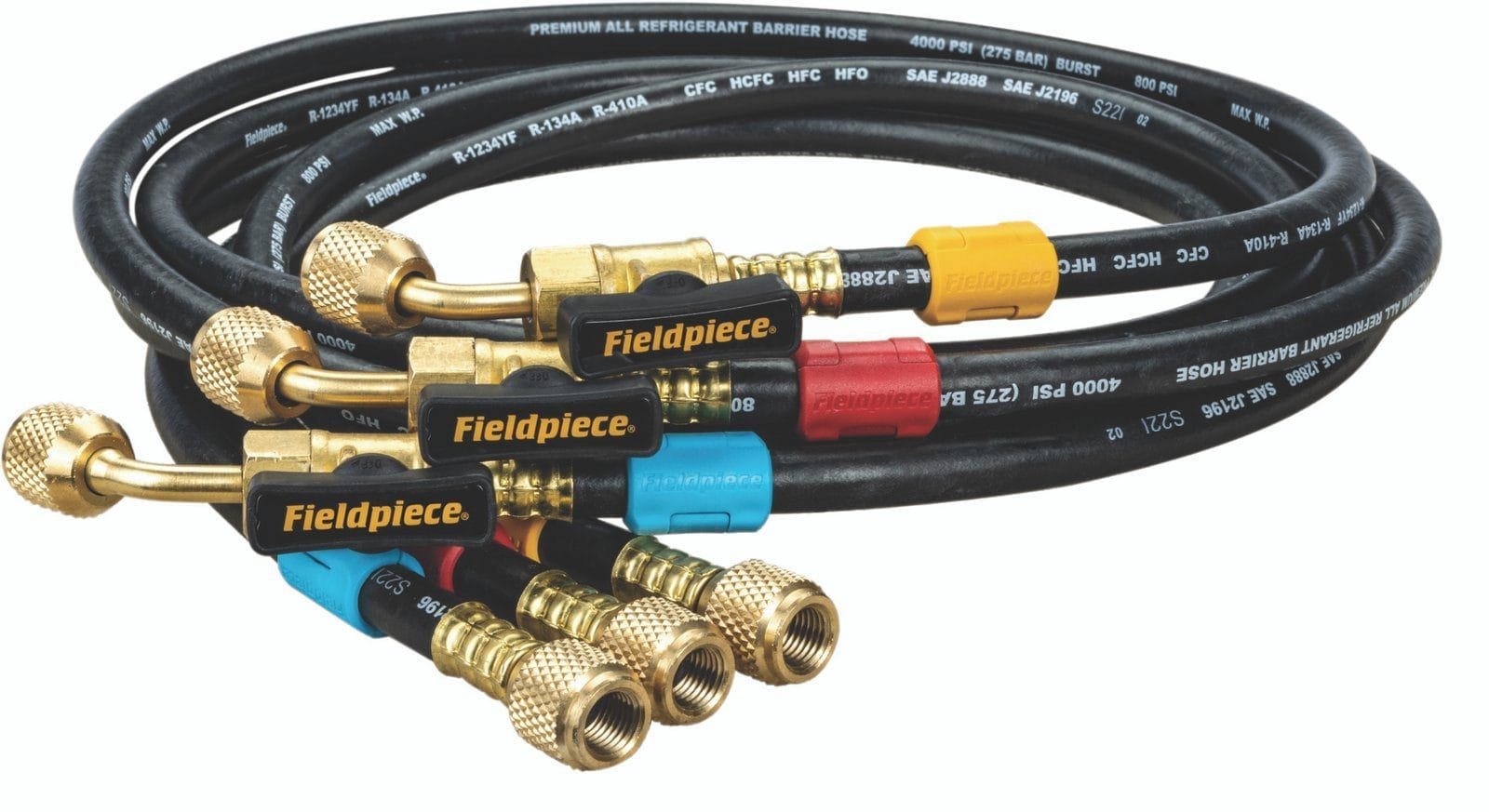

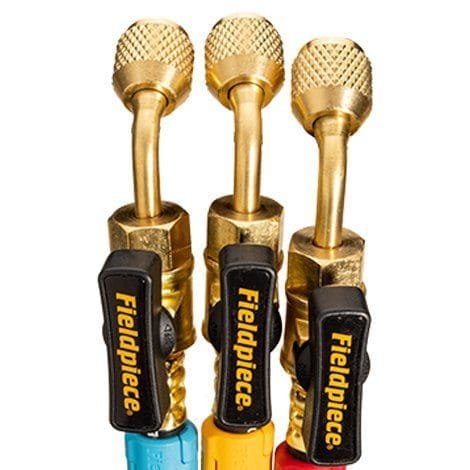

• HR3B are ¼” diameter, 60” length, black with colored tags and ball valve fittings
• Supports over 70 refrigerants – A2L Compatible
• Features an integrated vacuum gauge
• Measures line pressures, pipe temperatures, dry bulb temperature, and system vacuum

This item is a package with the Fieldpiece SM382V three-port refrigerant manifold and Fieldpiece HR3B hose set. The HR3B is a three-pack of hoses (black with colored tags) and are ¼” diameter, 60” length with ball valve fittings.

Taking the pulse of an HVACR system requires experience, precision, and reliability – everything you can count on with the SMAN Refrigerant Manifolds.

SMAN measures calculates, and helps you diagnose with ease. View live pressure, temperature, and vacuum readings on the large, 5-inch screen and connect your Job Link wireless tools for a full system view on the display.

The SMAN Refrigerant Manifold offers a comprehensive HVACR system view in one place to streamline your job.

• Measures
• Line pressures, pipe temperatures, dry bulb temperature, and system vacuum
• Calculates
• Superheat, subcooling, vapor saturation, liquid saturation, and delta T
• Live target delta T and target evaporator exit temperature with optional Job Link tools
• Temperature-compensated pressure differential for nitrogen pressure testing
• Logs Data
• Store up to 9 jobs internally
• Log up to 168 continuous hours
• Is Customizable
• Select the measurements to display
• Wireless on/off
• Set high and low vacuum alarms
• Field update with new refrigerants

Add Job Link System wireless tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SR47 Refrigerant Scale. Place pipe clamps in the perfect location. View live air measurements and calculations while making adjustments. Monitor and record refrigerant weight for precise recovery and charging documentation.

Streamline and simplify your call even further with the Job Link System App. See your measurements up to 1000’ away on your mobile device. Document your work and provide professional reports, including refrigerant recovery and charge weight, by simply connecting to the Job Link System app.

This manifold can be used with the refrigerants below. As new refrigerants are added, your instrument can be easily updated with the latest Fieldpiece firmware.

*Maximum pressure: 870 Psig (6000kPa)
