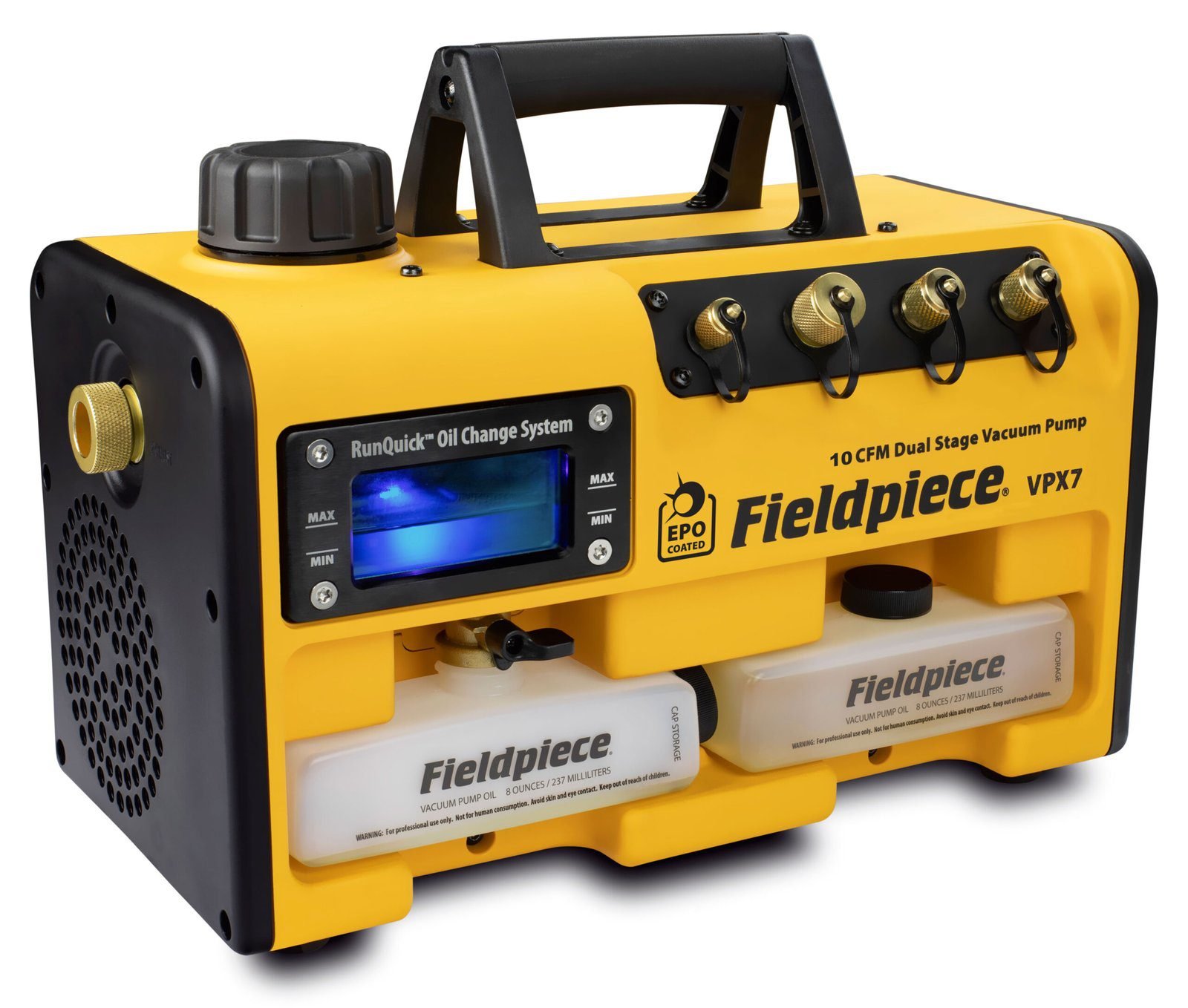

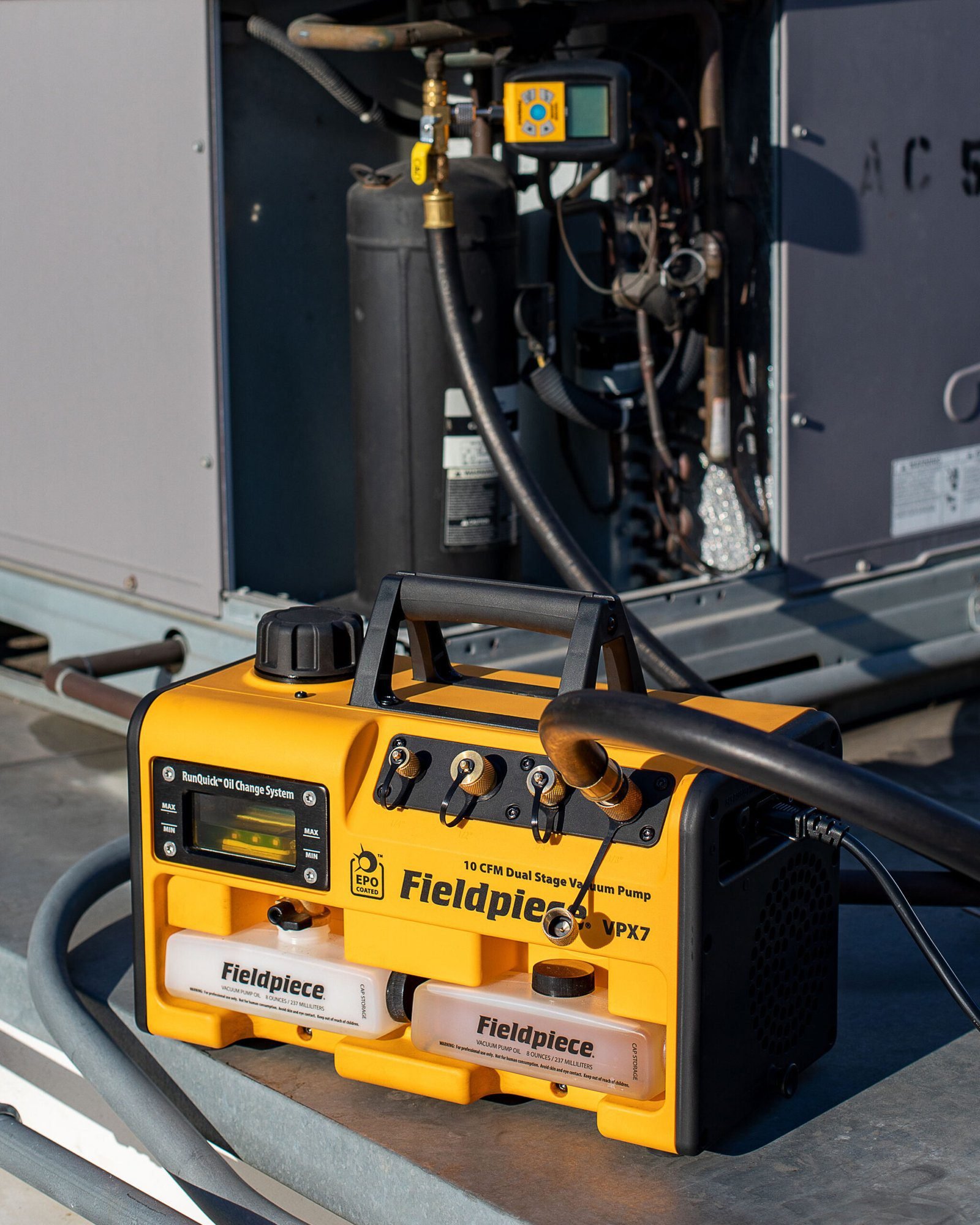

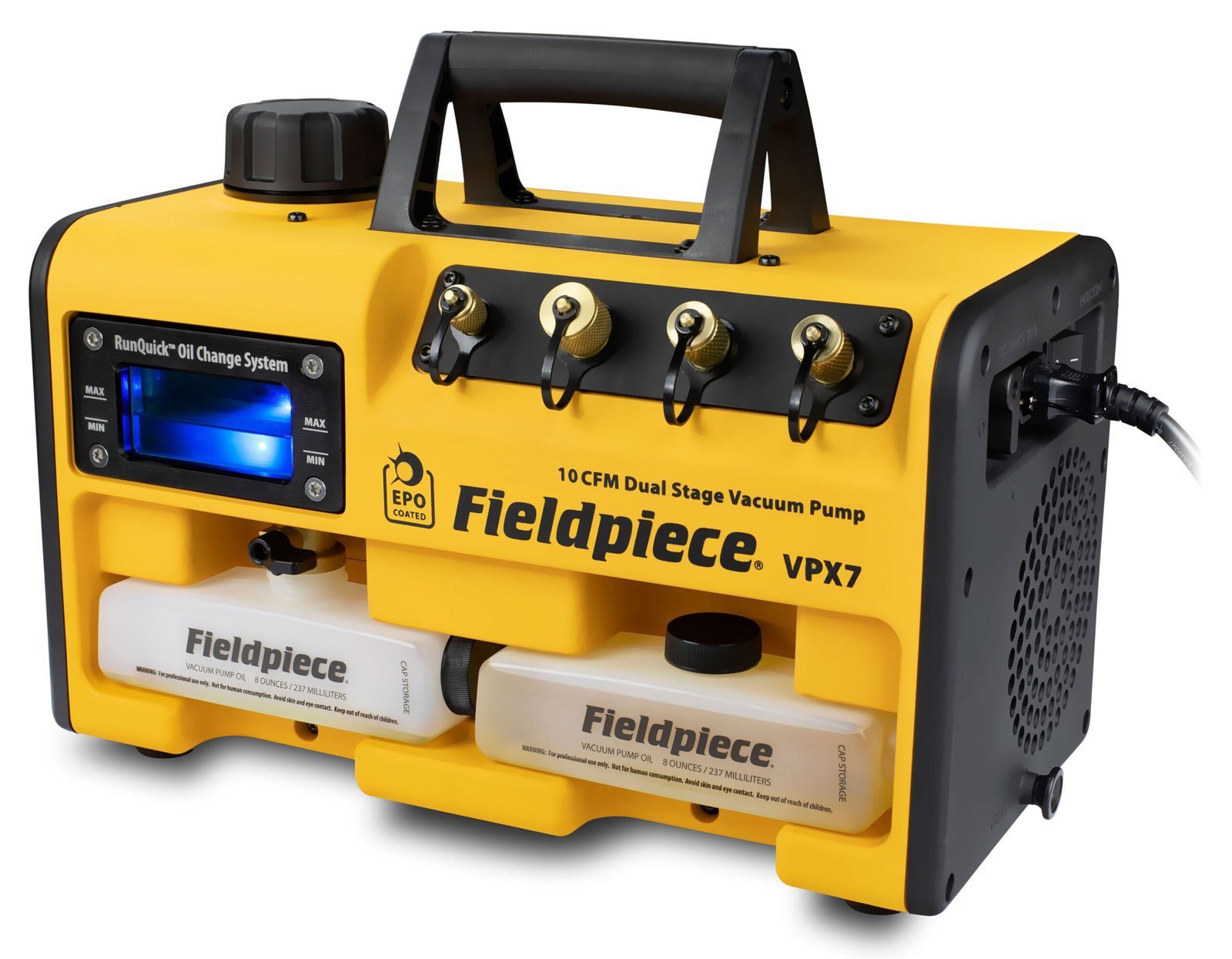

Fieldpiece VPX7 – 10 CFM Vacuum Pump

• 10 CFM flow rate
• Light weight and portable – 24 pounds
• 4 inline intake ports – (1) 1/4”, (2) 3/8”, (1) 1/2”
• Uses the revolutionary RunQuick Oil Management System
• 3/4 HP DC motor

The latest industry innovations from Fieldpiece have arrived. The VPX7, VP87 and VP67 vacuum pumps offer best in class flow rates that get the job done fast. These easy to use pumps were designed to be lightweight and portable, making it easier for technicians to carry up ladders, across long distances or wherever else the job requires.

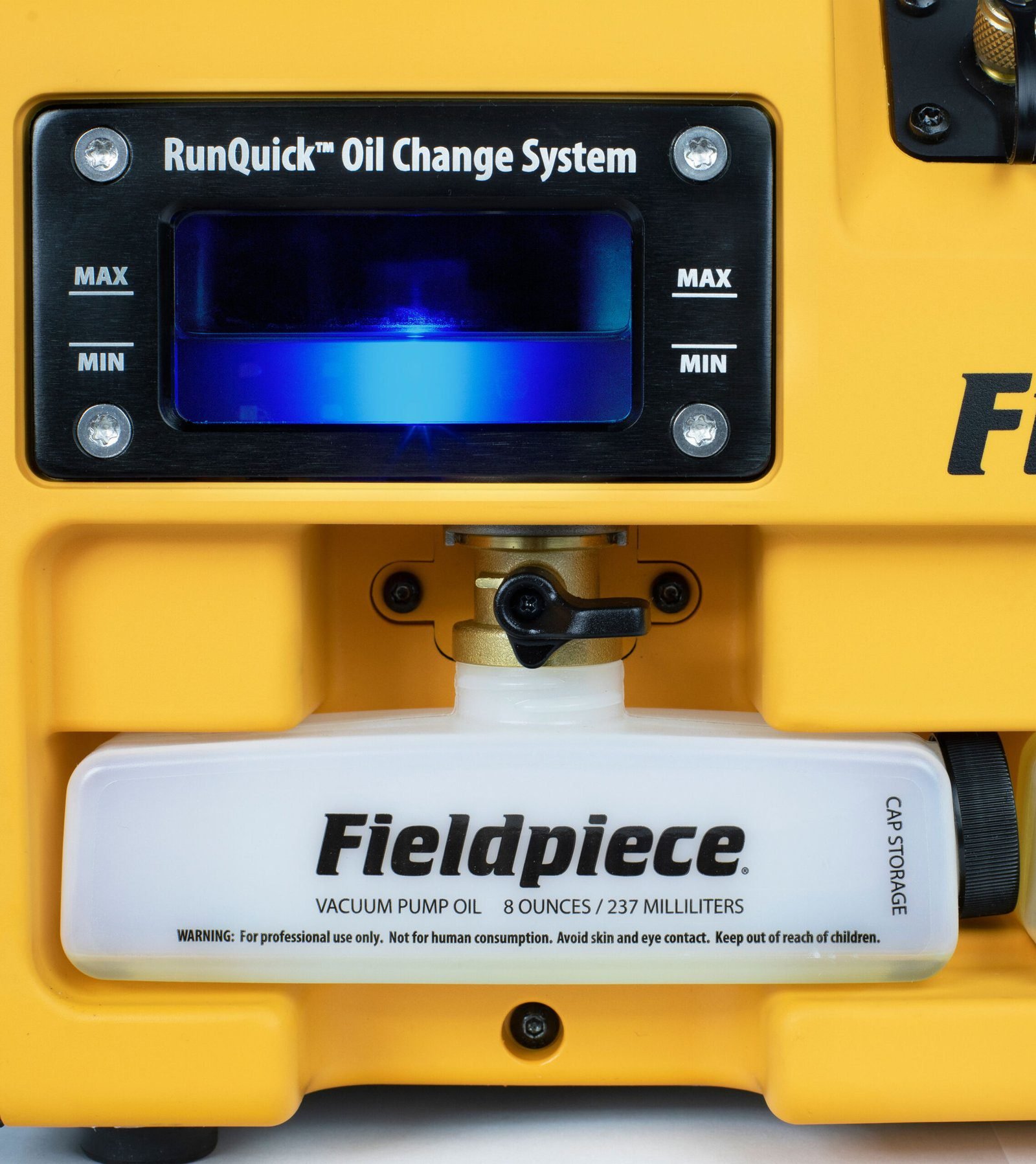

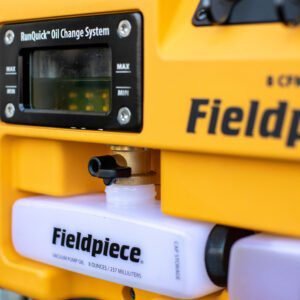

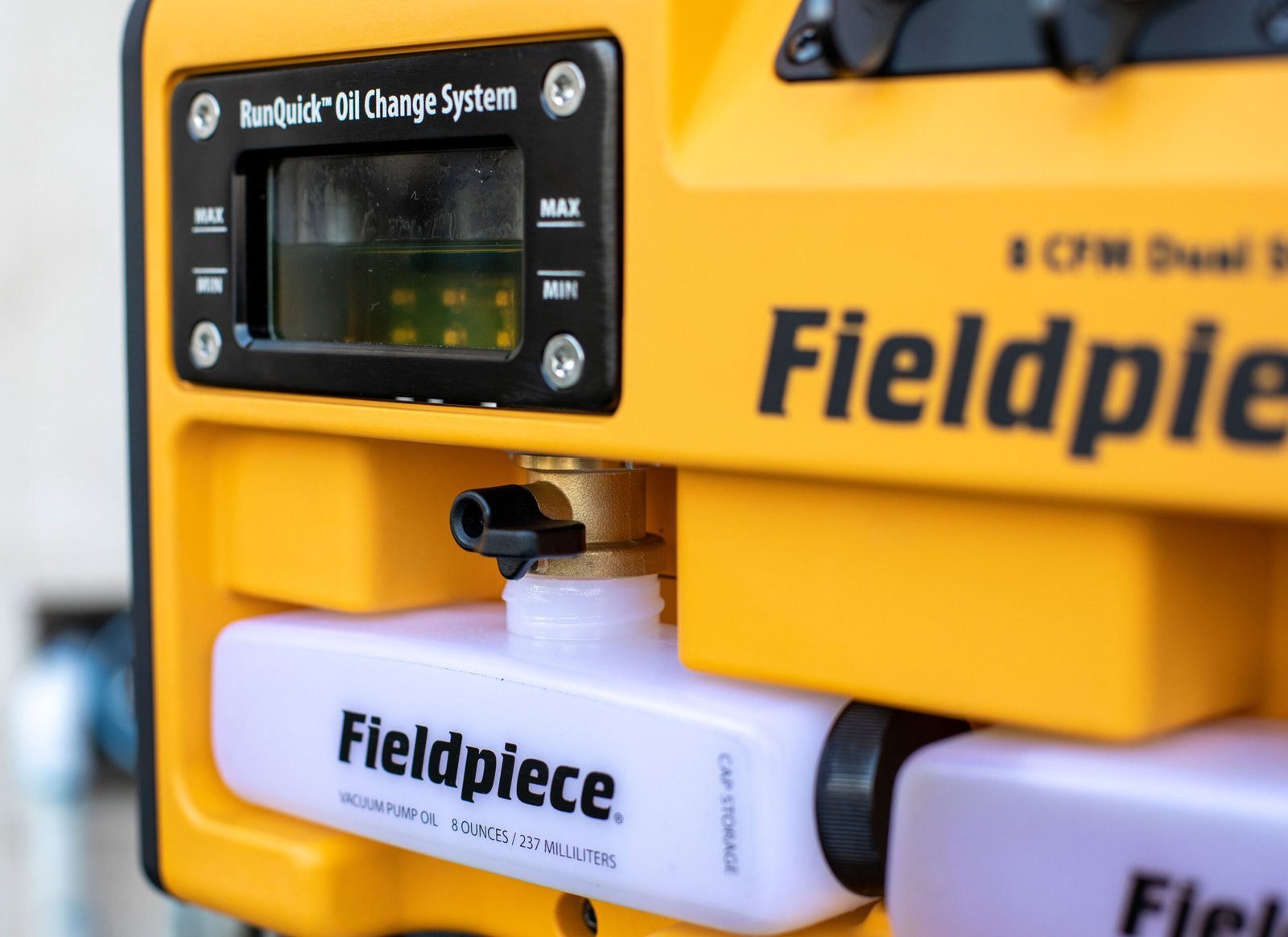

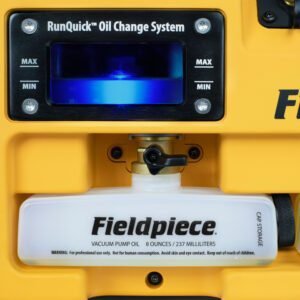

These new pumps optimize the revolutionary RunQuick Oil Management System with an extra bottle and a massive backlit, removable window. Good oil is a key ingredient of every evacuation. Clearly view the pump oil to see the condition of the oil and the system. Use only 8 ounces and replace the oil in under 20 seconds, even while the pump is running, without losing vacuum. When it’s time to change the oil, it’s quick, clean and easy.

The window for viewing oil quality is backlit in the signature Fieldpiece blue and is also removable for cleaning of the window and the oil reservoir. An extra empty oil bottle included for all models, and seating of (holding in place) the oil bottle is much easier to minimize oil dripping in the oil change process.

Each pump model contains four connection ports – 1/4″, 3/8″ and 1/2″. This enables the pump to accommodate multiple hose diameters, providing technicians with more options. Techs are able to use what hoses are easy and available for the size of the AC compressor.

A2L certification

A2L certification by a third party, (Fieldpiece used CSA Canada Standards Association) is going to be required around the world in the next few years due to global regulations on refrigerants. The world has already been migrating through generations of refrigerants to address known negative impacts on the environment. New refrigerants while better for the environment, are more flammable. Therefore, certain products like vacuum pumps have to be tested and certified to be safe to use around the new more flammable refrigerants. A2L certification of Fieldpiece tools means it was designed and tested and certified by a third party to work with the next generation of refrigerants that are already being mandated in EU and APAC regions and soon in the Americas.

Several versions available

Fieldpiece offers 3 models in its latest vacuum pump series – the VPX7, VP87 and VP67. These models offer different pumping capacities, motor styles, and much more. The VPX7 and VP87 feature DC motors, which when compared to AC are lighter, pack more power, are friendlier in low voltage situations and are better for cold starts.

The VPX7 also features a pump body made with the EPO aluminum alloy (patent pending). EPO stands for Electro Plasma Oxidation and is a durable coating of the aluminum pump. This coating ensures the lightweight aluminum is more durable, making it the lightest and most powerful pump for evacuation. This new EPO coated pump has been rigorously tested by Fieldpiece, sustaining thousands of hours of use, and testing continues.

The chart below highlights a few main differences in each:
