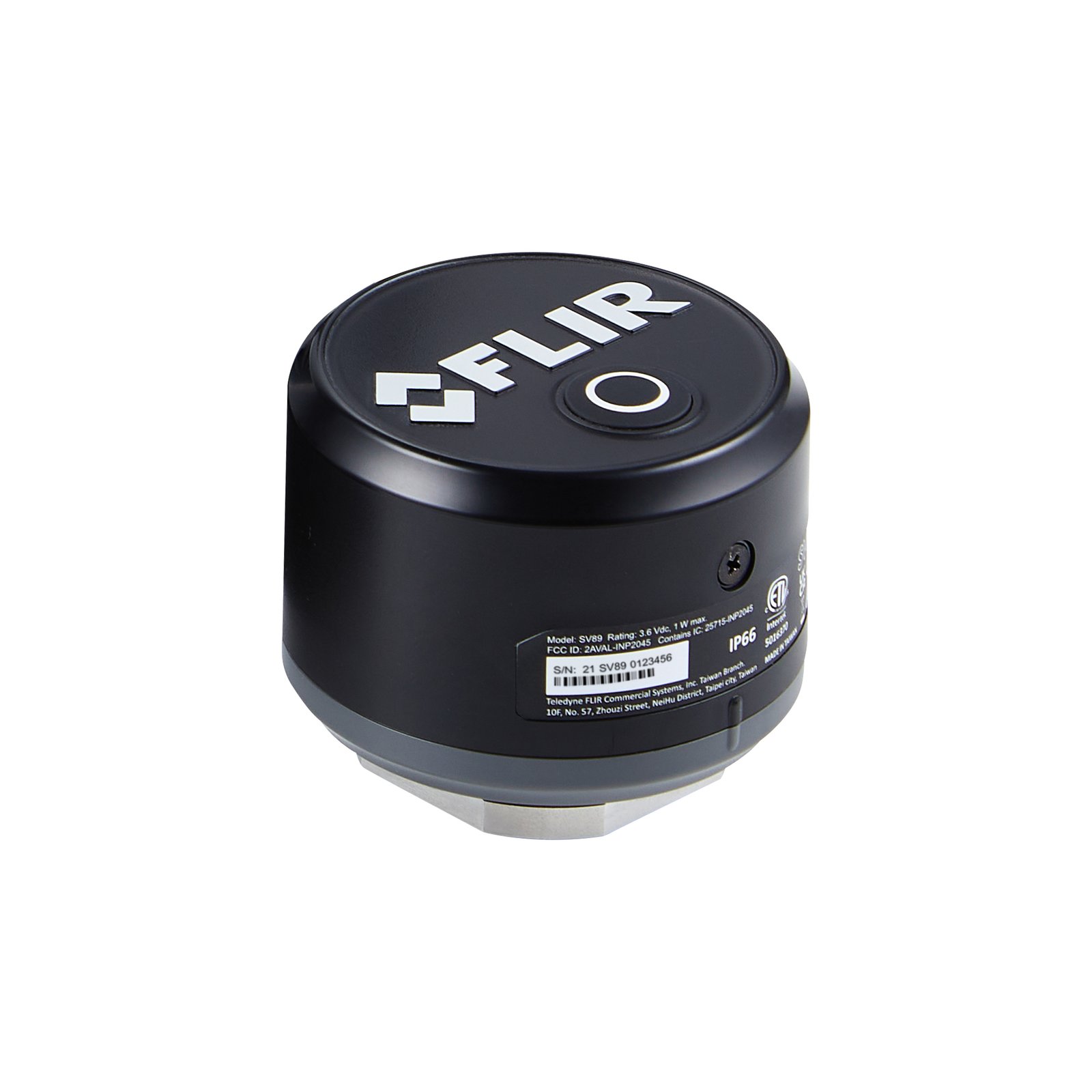

FLIR SV89 – Vibration/Temperature Remote Sensor (10 kHz 1 Axis)

• Wireless vibration monitoring sensor for data-driven condition monitoring of critical equipment

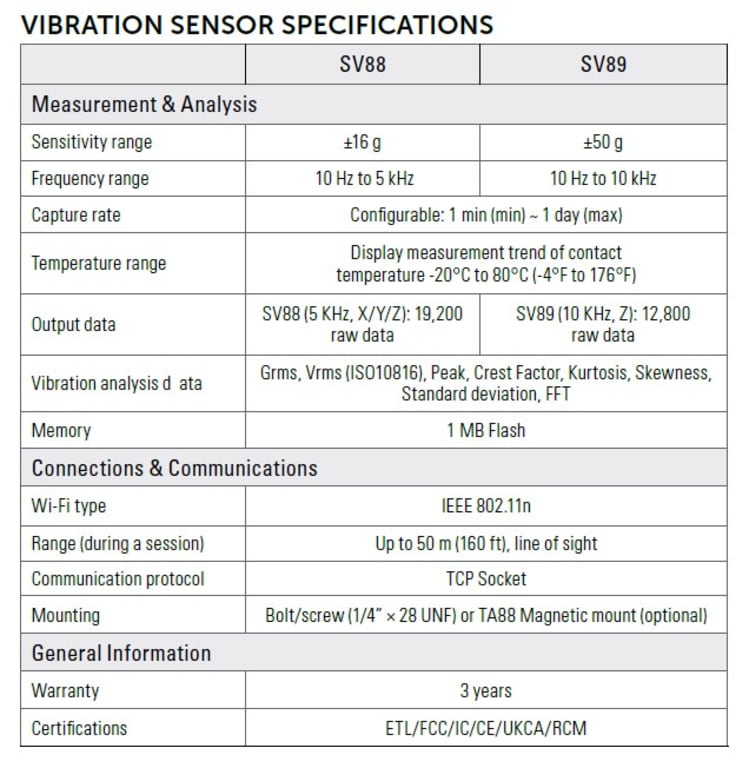

• Sensitivity Range: +/- 50 g
• Frequency Range: 10 Hz to 10 kHz
• Output Data: (10 kHz, Z axis): 100 raw data
• Temperature Range: -20°C to 80°C (-4°F to 176°F)

The FLIR SV89 Vibration and Temperature Remote Sensor is a wireless sensing solution designed for continuous vibration and temperature monitoring of critical equipment. By continuously analyzing vibrations from rotating equipment, it enables the necessary insights to utilize predictive maintenance strategies. Vibration trending and data analysis can help detect serious problems with industrial machines long before the damage can be seen, making it ideal for manufacturing environments that use rotating machinery, industrial pumps, fans, gearboxes, and motors.

The FLIR SV89 makes precise measurements of GRMS, VRMS, peak, crest factor, kurtosis, skewness, standard deviation, and FFT analysis provides users with detailed insights into the vibrational characteristics of monitored equipment to prevent costly downtime. The rugged, IP66 rating ensures reliable performance in demanding environments subject to moisture, dust, or debris.

The FLIR GW66 Remote Monitoring Gateway (sold separately) is an integral part of the vibration monitoring system. The GW66 Remote Monitoring Gateway Web GUI is accessed through WiFi to easily deploy, monitor, and manage remote sensors. The GW66 features edge computing of vibration analysis (FFT) through WiFi connectivity. The Gateway has multi-communication protocols (Modbus, MQTT, OPC UA) for integration with advanced analysis tools. With Gateway connection options including Power-Over-Ethernet or WiFi, this vibration monitoring system will seamlessly implement into existing operations.

• Condition monitoring of critical equipment: By continuously analyzing vibrations from rotating equipment, it enables the necessary insights to utilize predictive maintenance strategies.
• Fault detection of vibration patterns is indicative of potential faults such as: misalignment, bearing defects, or gear damage.
• Data-driven decision making for reliability-centered maintenance to help identify patterns, trends, potential failure modes and the severity of detected issues

• Precise measurements of GRMS, VRMS, peak, crest factor, kurtosis, skewness, standard deviation, and FFT analysis provides users with detailed insights into the vibrational characteristics of their equipment to prevent costly downtime.
• Wireless capability enhances flexibility in installation, allowing for easy deployment in various industrial environments.
• Rugged, IP66 rating ensures reliable performance in demanding conditions subject to moisture, dust, or debris.
• The GW66 Gateway (sold separately) has multi-communication protocols (Modbus, MQTT, OPC UA) for integration with advanced analysis tools.
