FLIR VS290-00 – Videoscope Display and Battery for VS290 Series (Probe Sold Separately)
42 people are viewing this product right now
$2,229.00
Shipping calculated at checkout.
Estimated delivery:5 days
VS290 Thermal MSX VideoScope (Main Unit, without Camera)
- Probe sold separately
- For a full package with probe, please see FLIR VS290-32
- Industrial thermal and visual videoscope
- Quickly and safely find hidden dangers in difficult-to-access locations
- Troubleshoot problems from a safe distance
- 160 x 120 true thermal imager and 2 MP visual camera
- Easily inspect underground electrical distribution vaults, inside large gearboxes, motors and other industrial applications
- View findings clearly on the large 3.5-inch color display
- Save images and videos using the included SD memory card, and upload to a PC via USB-C Cable
- Quickly create and share reports with team members to prioritize repairs using FLIR Thermal Studio
Guarantee Safe and Secure Payment Checkout
Description
FLIR VS290-00 – Videoscope Display and Battery for VS290 Series (Probe Sold Separately)
- Probe sold separately
- For a full package with probe, please see FLIR VS290-32
- Industrial thermal and visual videoscope
- Quickly and safely find hidden dangers in difficult-to-access locations
- Troubleshoot problems from a safe distance

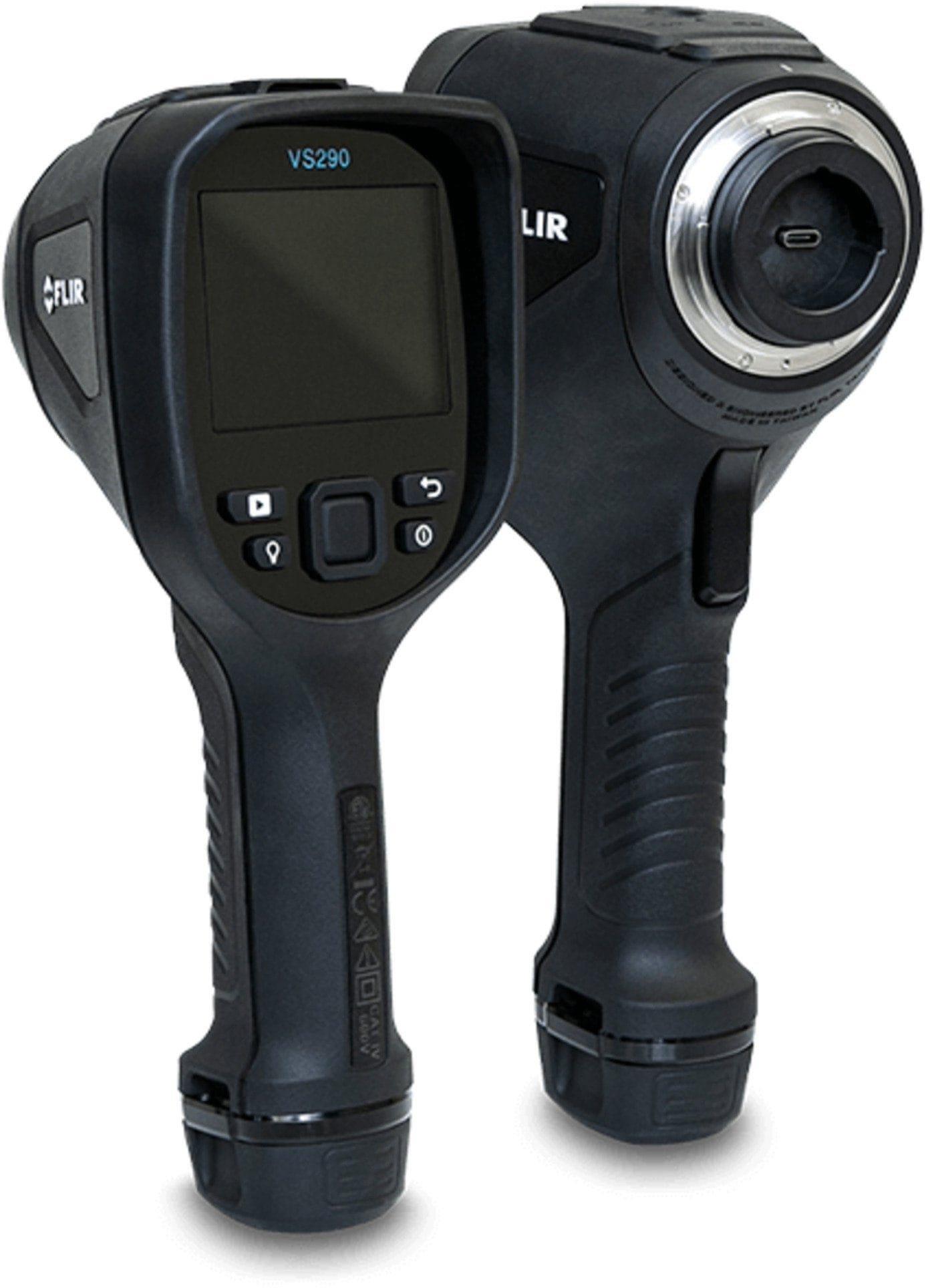

The FLIR VS290-00 is an industrial thermal and visual videoscope designed to help professionals quickly and safely find hidden dangers in difficult-to-access locations, especially underground electrical distribution vaults. Featuring a 160 × 120 true thermal imager and FLIR MSX® (Multi-Spectral Dynamic Imaging), the VS290-00. enables users to catch hot spots before a failure occurs to maintain uptime.
***Please note, the VS290-00 does not include a probe. For a full package with probe, please see the FLIR VS290-32.***
INSPECT INACCESSIBLE AREAS SAFELY
Quickly find hidden faults without entering difficult-to access locations and other hard-to-reach spaces
- Troubleshoot problems from a safe distance with the 160 × 120 true thermal imager and 2 MP visual camera
- Easily maneuver the narrow 2 m field-replaceable camera probe to inspect underground electrical distribution vaults, inside large gearboxes, motors, attics, crawl spaces, and other industrial applications
- Instantly recognize the location of a temperature issue with FLIR MSX, which extracts scene details from the built-in visual camera and embosses them onto the full thermal image
IDENTIFY, DOCUMENT, AND SHARE
Improve workflow and communicate potential issues before they become major problems
- View findings clearly on the large 3.5-inch color display, and use color alarms (isotherms) to quickly identify areas of concern
- Save images and videos using the included SD memory card, and upload to a PC via USB-C Cable
- Quickly create and share reports with team members to prioritize repairs using FLIR Thermal Studio
VERSATILE, RUGGED, AND RELIABLE
Use the VS290-32 in the most demanding environments
- Provides a high level of protection against dust and water (IP67 rated camera tip, IP54 rated base unit and probe)
- Easily replace the camera probe while in the field
- Conduct electrical inspections safely (CAT IV 600 V rated)
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 160 x 120 Sensor |
| Thermal Sensitivity | 100 mK (NETD) |
| Temperature Range Max | 752 F |
| Temperature Range Min | 14 F |
| Image Frequency | 8.7 Hz |
| Field of View | 57 x 44 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | No |
| Touch Screen Display | No |
| Minimum Focus Distance | 0.15 M |
| Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F) 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Battery operating time Continuous | 5 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Borescopes / Boroscopes/Video Borescopes Template | |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Resolution (Boroscopes) | 320×240 |
| Image Resolution | 320×240 |
| IP Rating | IP54, IP67 |
Product General Attributes | |
| Product Weight | 1.41 LBS |
| Product Height | 4.3 IN |
| Product Length | 10.4 IN |
| Product Width | 4.3 IN |
| Shipping Weight | 2.3 LBS |
| HTS/Schedule B Number | 9013809000 |
| ECCN Number | 6A993 |
| Country of Origin | Taiwan |
You must be logged in to post a review.
Manuals/Guides
Spec Sheets
| Weight | 2.3 lbs |
|---|---|
| Dimensions | 10.4 × 4.3 × 4.3 in |
