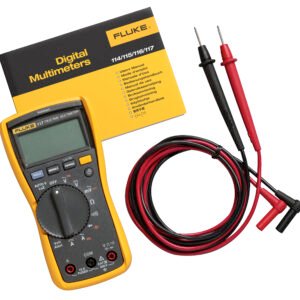

Fluke 117 – Electrician’s Multimeter with Non-Contact Voltage Detection
32 people are viewing this product right now
Original price was: $318.98.$256.24Current price is: $256.24.
Shipping calculated at checkout.
Estimated delivery:5 days
Fluke 117 True-RMS AC/DC Electrician Multimeter with Non-Contact Voltage Detection
- Compact true-RMS digital multimeter for electricians
- Integrated VoltAlert non-contact voltage detection
- LoZ – Low input impedance prevents false readings due to ghost voltage
- AutoVolt feature for automatic AC/DC voltage selection
- Measures AC/DC voltage and current, resistance, capacitance, diode testing, frequency and more
- Measure up to 600V / 10A AC/DC
- 3.5 digits / 6000 counts
- Backlight for use in dimly lit areas
- Compatible with Fluke TPAK magnetic meter hanging kit (sold separately)
- CAT III 600V safety rating
Guarantee Safe and Secure Payment Checkout
Description
Fluke 117
- Compact true-RMS digital multimeter for electricians
- Integrated VoltAlert non-contact voltage detection
- LoZ – Low input impedance prevents false readings due to ghost voltage
- AutoVolt feature for automatic AC/DC voltage selection
- Measures AC/DC voltage and current, resistance, capacitance, diode testing, frequency and more
Electrician’s Multimeter with Non-Contact Voltage Detection
The Fluke 117 Electrician’s Multimeter is a compact, CAT III 600 V, True-rms meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly.
With a quick turn of the dial, you can get measurements for:
- Voltage
- Current
- Resistance
- Continuity
- Frequency
- Capacitance
Non-contact voltage detection
The Fluke 117 features integrated VoltAlert technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.
Automatic AC/DC selection
Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.
Meter display
| 1. VoltAlert non-contact voltage detection mode | 10. Measurement units |
| 2. Continuity | 11. Direct or alternating current |
| 3. Diode test | 12. Low battery |
| 4. Negative value | 13. Range selection |
| 5. Unsafe voltage | 14. Bar graph |
| 6. Display hold enabled | 15. AutoVolts; manual/auto ranging |
| 7. MIN MAX AVG enabled | 16. Bar graph polarity |
| 8. Red LED – VoltAlert detection indicator | 17. Input is too large |
| 9. LoZ – low input impedance | 18. Test lead alert |
Several versions available
Fluke offers several meters in its 110 meter series. The charts below outline several main differences in each.
In this chart,
- VoltAlert refers to non-contact voltage detection
- VCHEK is a LoZ low impedance measurement function to simultaneously test for voltage/continuity
- LoZ is Low input impedance measurement to prevent false readings due to “ghost voltage”
To view additional selection information on the 110 series, please click here.
To view the selection information for Fluke digital multimeter product line, please click here.
| 110 | 113 | 114 | 115 | 116 | 117 | |
| Counts | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| True RMS | AC | AC | AC | AC | AC | AC |
| Basic DC accuracy | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| AC bandwidth | 1kHz | 1kHz | 1kHz | 1kHz | 1kHz | 1kHz |
| Auto/manual ranging | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| AC/DC voltage | 600V | 600V | 600V | 600V | 600V | 600V |
| AC/DC current | 10A | 600µA | 10A | |||
| Resistance | 40MΩ | 60kΩ | 40MΩ | 40MΩ | 40MΩ | 40MΩ |
| Frequency | 100kHz | 100kHz | 100kHz | |||
| Capacitance | 9999µF | 9999µF | 9999µF | 9999µF | ||
| Temperature | 752°F | |||||
| Continuity/diode | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| VoltAlert | ✔ | |||||
| VCHEK | ✔ | |||||
| LoZ | ✔ | ✔ | ✔ | |||
| Microamps | ✔ |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV Resolution AC Volts Range / Resolution |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV Resolution DC Volts Range / Resolution |
| Maximum Current AC | 10.0 A Maximum Current AC 20 A for 30 seconds max., |
| Minimum Current AC | 0.001 A (1 mA) Minimum Current AC Accuracy +/- 1.5 % + 3 counts |
| Resolution AC Current | 0.001 A (1 mA) Resolution AC Current Range / Resolution |
| Maximum Current DC | 10.00 A |
| Minimum Current DC | 0.001 A (1 mA) Minimum Current DC Accuracy: +/- 1.0 % + 3 counts |
| Resolution DC Current | 0.001 A (1 mA) Resolution DC Current Range / Resolution |
| Basic Accuracy V DC | 0.5% Basic Accuracy V DC +/- 0.5% + 2 counts |
| # Digit Display | 3.5 # Digit Display 6,000 counts, updates 4/sec; Bar Graph: 33 segments, updates 32/sec |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes Resistance Range / Resolution |
| Frequency | Yes Frequency Range / Resolution |
| Capacitance | Yes Capacitance Range / Resolution |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | •VoltAlert™ technology for non-contact voltage detection •AutoVolt automatic ac/dc voltage selection •Low input impedance: helps prevent false readings due to ghost voltage •Large white LED backlight to work in poorly lit areas •True-rms for accurate measurements on non-linear loads •Measures 10 A (20 A overload for 30-seconds) •Resistance, continuity, frequency and capacitance •Min/Max/Average with elapsed time to record signal fluctuations •Compact ergonomic design for one-handed operation •Compatible with optional magnetic hanger (ToolPak™) for hands free operation •CAT III 600 V safety rated |
| Warranty | 3 YEARS |
| Safety Approval | CSA, UL Safety Approval ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP42 |
| Product Weight | 1.34 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Data Logging | No |
| ECCN Number | 3A991 |
| Calibration Included | Factory Calibration Calibration Included Factory Calibration without certification. |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| UPC | 095969324205 |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsApplication NotesOther
| Weight | 1.34 lbs |
|---|---|
| Dimensions | 6.57 × 3.31 × 1.82 in |
