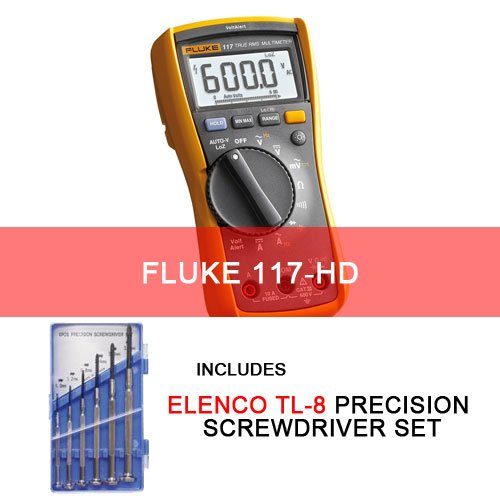

Fluke 117-HD – Handheld Multimeter with Screwdriver Set
25 people are viewing this product right now
Original price was: $323.37.$269.48Current price is: $269.48.
Shipping calculated at checkout.
Estimated delivery:5 days
Electricians True RMS Multimeter with 6 Piece Precision Screwdriver Set
- Includes Elenco TL-8 6 Piece Precision Screwdriver Set
- VoltAlert technology for non-contact voltage detection
- AutoVolt automatic ac/dc voltage selection
- LoZ: helps prevent false readings due to ghost voltage
- Large white LED backlight to work in poorly lit areas
- True-rms for accurate measurements on non-linear loads
- Measures 20 A (30 seconds momentary; 10 A continuous)
- Resistance, continuity, frequency and capacitance
- Min/Max/Average to record signal fluctuations
- Compatible with optional magnetic hanger (ToolPak) for hands free operation
- CAT III 600 V safety rated
- True RMS
- .5% Accuracy
- 28% larger digits
- 6000 counts
- Bargraph
- Case Features
- 10.25″ X 6.5″ X 3.4″
- Hard Plastic Exterior
- Pick and Pack Foam Interior
- Convenient Carrying Handle
Guarantee Safe and Secure Payment Checkout
Description
Fluke 117-HD
- Compact, true-rms digital multimeter for electricians
- Includes multimeter, 4mm silicone test leads, holster and manual
- Integrated non-contact voltage detection keeps you safe
- Prevent false readings from ghost voltage with selectable low-impedance mode
- Includes Elenco TL-8 6 Piece Precision Screwdriver Set
Handheld Multimeter with Screwdriver Set

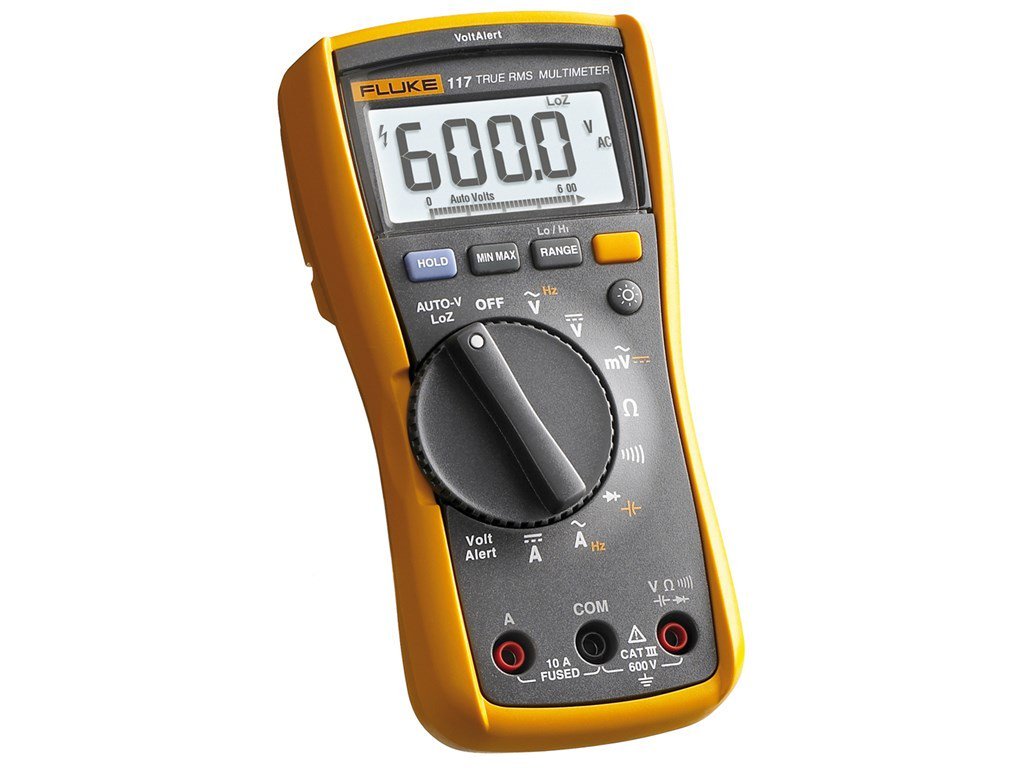

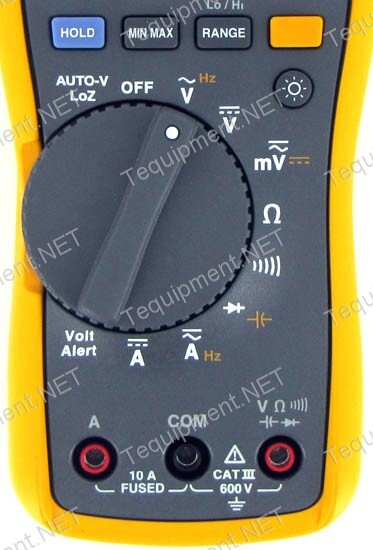

The Fluke 117 Electricians Multimeter is a compact, CAT III 600 V, True-RMS meter that includes an easy-to-use interface with a bright backlight for darker worksites. It saves you time and enables you to move from job to job more quickly. With a quick turn of the dial you can get measurements for:
- Resistance
- Continuity
- Frequency
- Capacitance
- Min/Max/Average
For the everyday

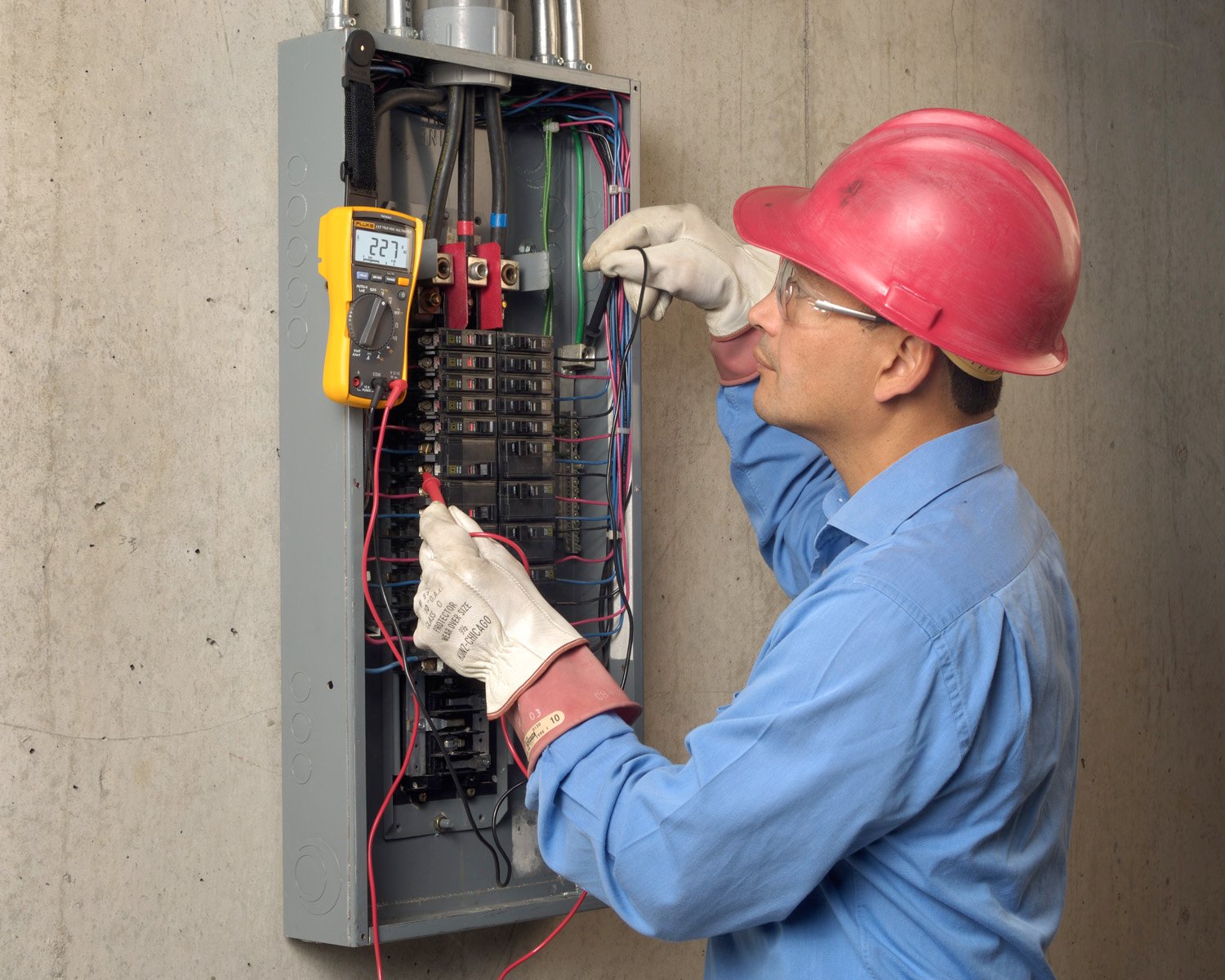

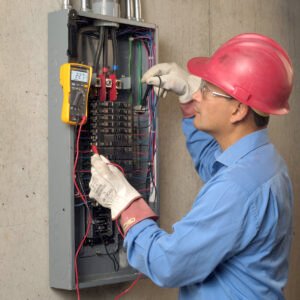

A digital multimeter designed to be hauled everywhere with you, part of your everyday tools. The 117 is built for demanding applications like:
- Commercial buildings
- Hospitals
- Schools
Non-contact voltage detection

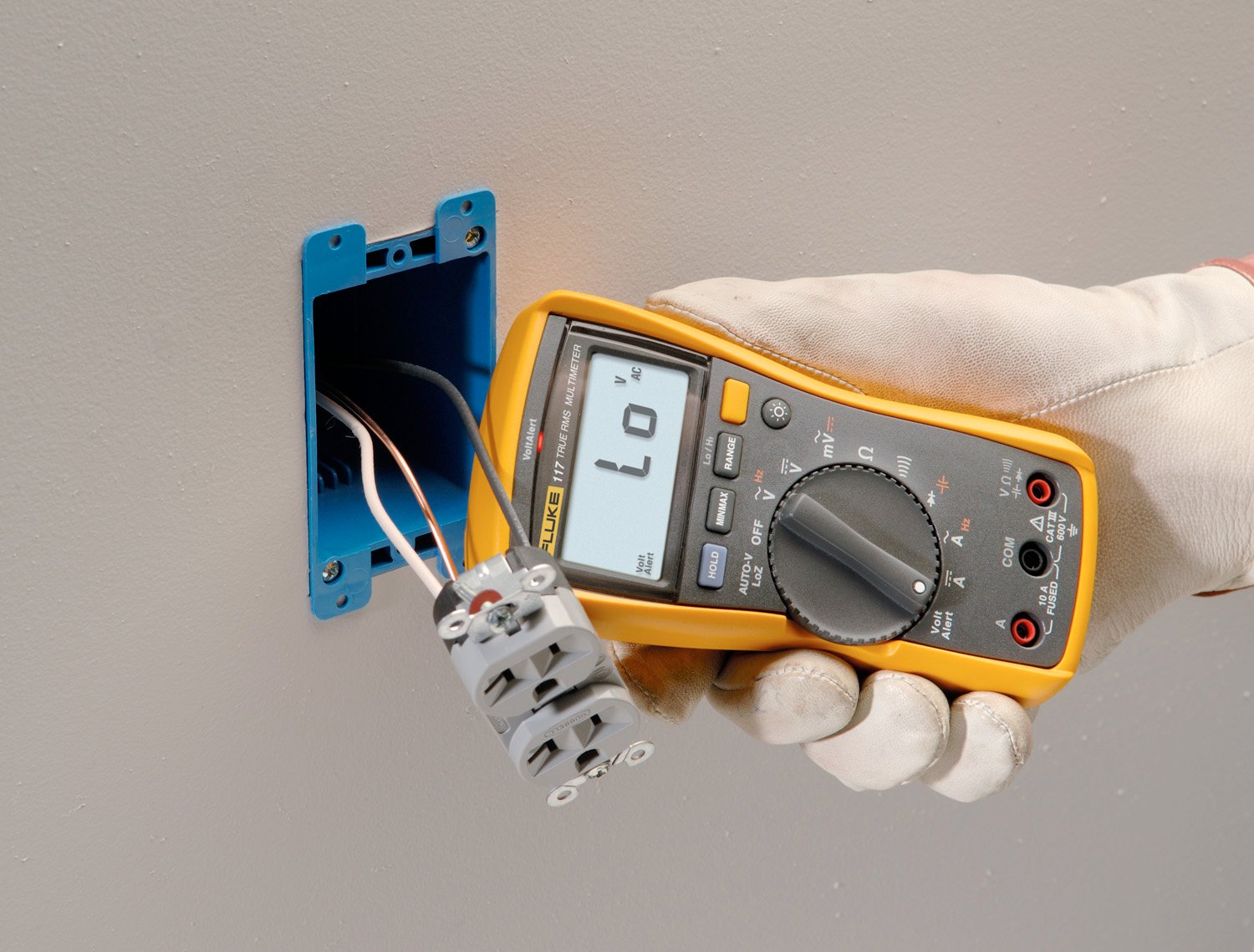

Keep yourself safer with integrated VoltAlert™ technology. Fast, go/no go non-contact voltage detection built into your multimeter saves you from having to carry around or find an extra tool to get the work started.
Automatic AC/DC selection
Set the dial and get your measurement quickly with AutoVolt. This automatic AC/DC voltage selector makes it easier for you to get the measurement you need and move on quicker.
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10.0 A |
| Minimum Current AC | 0.001 A (1 mA) |
| Resolution AC Current | 0.001 A (1 mA) |
| Maximum Current DC | 10.00 A |
| Minimum Current DC | 0.001 A (1 mA) |
| Resolution DC Current | 0.001 A (1 mA) |
| Basic Accuracy V DC | 0.5% Basic Accuracy V DC 0.5% + 2 |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | •VoltAlert™ technology for non-contact voltage detection •AutoVolt automatic ac/dc voltage selection •Low input impedance: helps prevent false readings due to ghost voltage •Large white LED backlight to work in poorly lit areas •True-rms for accurate measurements on non-linear loads •Measures 10 A (20 A overload for 30-seconds) •Resistance, continuity, frequency and capacitance •Min/Max/Average with elapsed time to record signal fluctuations •Compact ergonomic design for one-handed operation •Compatible with optional magnetic hanger (ToolPak™) for hands free operation •CAT III 600 V safety rated |
| Warranty | 3 YEARS |
| Safety Approval | CSA, UL Safety Approval ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN |
| IP Rating | IP42 |
| Product Weight | 1.34 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Shipping Weight | 1.34 LBS |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 5.91 IN |
| UPC | 095969324205 |
| Shipping Length | 12.99 IN |
| Shipping Width | 11.02 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsApplication NotesOther
| Weight | 1.34 lbs |
|---|---|
| Dimensions | 6.57 × 3.31 × 1.82 in |
