Fluke 1550C FC Kit w/IR3000 Insulation Resistance Tester Kit
47 people are viewing this product right now
$7,127.99
Shipping calculated at checkout.
Estimated delivery:3 days
FLUKE-1550C 5K Insul Tester Kit w/IR3000
Fluke 1550C Kit
- Test voltages up to 10 kV provides solutions for all applications
- CAT III 1000 V, CAT IV 600 V safety rating
- Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
- Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2TΩ
- Timer settings up to 99 minutes for timed tests
Fluke IR3000FC
- Fluke Connect IR 3000 Connector allows you to wirelessly transfer data from your existing Fluke tools to your smart phone
- Fits over the IR port of your existing Fluke tools
- Upgradeable by USB
- Immediately enables you to graph, save, and share the tool’s readings with your team from your smart phone
Guarantee Safe and Secure Payment Checkout
Description
Fluke 1550C Insulation Resistance Tester

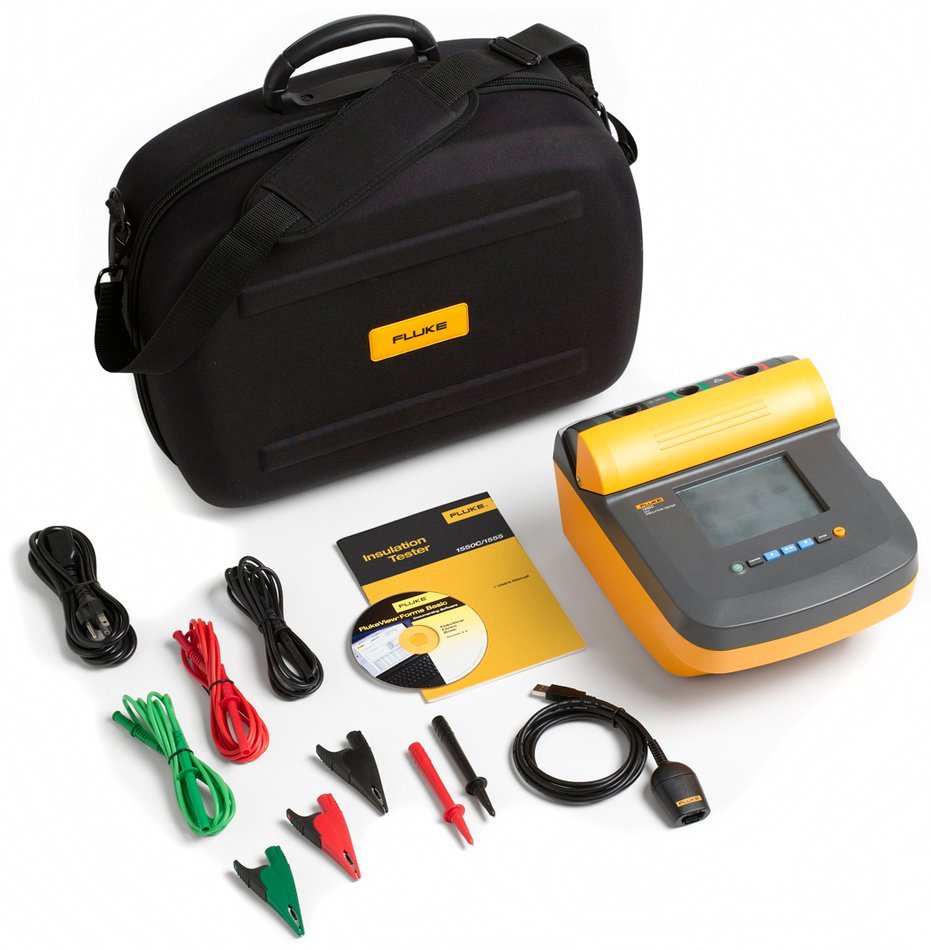

The exceptional Fluke 1550C now comes in a kit for the electrician’s best service. The 1550C/KIT includes the Fluke 1550C insulation resistance tester that offers digital insulation testing up to 10 kV, the Fluke IP67 Hard Case, ruggedized Alligator Clips and NIST Traceable Certificate of Calibration.
The redesigned Fluke 1550C insulation resistance testers offer digital insulation testing up to 10kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 and 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
Fluke Connect™ IR3000 Connector
Connect your Fluke test tool with the IR3000 connector and get all the benefits of the Fluke Connect mobile application.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect™ mobile app is available for Android™ and iOS smart phones and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And there is more on the way.
If you already have one of the tools below in your tool box or tool belt you can communicate with Fluke Connect using one of these IR 3000 Connectors.
Review the information on both models below to ensure you are selecting the one that supports your existing Fluke tool. Next, download the Fluke Connect mobile app from the Apple or Google app store and get started.
Fluke Connect
See it. Save it. Share it. All the facts, right in the field.
Fluke Connect with ShareLive ™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android ™ and iOS and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
LEARN MORE ABOUT FLUKE CONNECT
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 2,500 V, 250 V, 5,000 V, 500 V |
| Maximum Insulation Resistance | 2 G Ohms |
| Automated Test Results | Dielectric Absorption Ratio, Other Automated Test Results Polarization Index (PI) |
| Type | Battery |
| Minimum Insulation Resistance | 200 K Ohms (0.0002 G Ohms) |
| Variable Incremental Voltage | Yes Variable Incremental Voltage Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V |
| Display (Megohmmeter) | Digital |
| Continuity Test | No |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Battery |
| Timer | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V CAT Voltage CAT III 1000 V, CAT IV 600 V |
Product General Attributes | |
| Unique Features | Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall. Long battery life gives the user over 750 tests between charges. Ramp function for breakdown testing. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Interfaces I/O | IR, USB |
| IP Rating | IP40 |
| Product Weight | 8.2 LBS |
| Product Height | 6.3 IN |
| Product Length | 10.6 IN |
| Product Width | 10.9 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.33.0040 |
| ECCN Number | 3A992 |
| Calibration Included | |
| Battery Type | Other Battery Type 12 V lead-acid rechargeable battery |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
| Shipping Height | 9.00 IN |
| Shipping Length | 22.00 IN |
| Shipping Width | 18.00 IN |
| Other Information | Display: 75 mm x 105 mm Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 Charger Input (AC): 85 V ac 50/60 Hz 20 VA |
You must be logged in to post a review.
| Weight | 8.2 lbs |
|---|---|
| Dimensions | 10.6 × 10.9 × 6.3 in |
