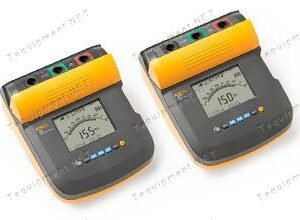

Fluke 1550C Insulation Resistance Tester
13 people are viewing this product right now
$6,299.99
Shipping calculated at checkout.
Estimated delivery:5 days
Fluke 1550C Megohmmeter/Insulation Resistance Tester, 5kV, > 2 teraohm
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Test voltages up to 10 kV provides solutions for all applications
- CAT III 1000 V, CAT IV 600 V safety rating
- Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
- Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2TΩ
- Timer settings up to 99 minutes for timed tests
- 3-year warranty
Guarantee Safe and Secure Payment Checkout
Description
Fluke 1550C – Insulation Resistance Tester
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Test voltages up to 10 kV provides solutions for all applications
- CAT III 1000 V, CAT IV 600 V safety rating
When you look for an insulation resistance tester, you probably look for one that can test a wide range of high voltage equipment. The redesigned Fluke 1550C insulation resistance tester offers digital insulation testing up to 10 kV, making it possible to test a large range of high voltage equipment such as switchgear, motors, generators and cables. When you work with the Fluke 1550C you can store your measurements in up to 99 memory locations that are assigned uniquely and defined by you. While the provided long battery life makes it possible for you to conduct up to 750 tests between chargings, the Fluke 1550C insulation testers have a 3 year warranty and CAT IV 600 V safety rating.
Digital insulation testing up to 10kV

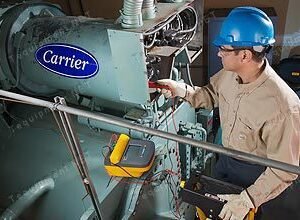

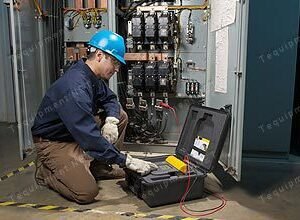

The redesigned Fluke 1550C insulation resistance testers offer digital insulation testing up to 10kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators, and cables. Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3-year warranty, and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 and 1550C are perfect tools for preventative or predictive maintenance programs designed to identify potential equipment failures before they occur.
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 2,500 V, 250 V, 5,000 V, 500 V |
| Maximum Insulation Resistance | 2 G Ohms |
| Automated Test Results | Dielectric Absorption Ratio, Other Automated Test Results Polarization Index (PI) |
| Type | Battery |
| Minimum Insulation Resistance | 200 K Ohms (0.0002 G Ohms) |
| Variable Incremental Voltage | Yes Variable Incremental Voltage Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V |
| Display (Megohmmeter) | Digital |
| Continuity Test | No |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Battery |
| Timer | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V CAT Voltage CAT III 1000 V, CAT IV 600 V |
Product General Attributes | |
| Unique Features | Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall. Long battery life gives the user over 750 tests between charges. Ramp function for breakdown testing. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Interfaces I/O | IR, USB |
| IP Rating | IP40 |
| Product Weight | 8.2 LBS |
| Product Height | 6.3 IN |
| Product Length | 10.6 IN |
| Product Width | 10.9 IN |
| Data Logging | Yes |
| Calibration Included | |
| Battery Type | Other Battery Type 12 V lead-acid rechargeable battery |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | United States |
| Other Information | Display: 75 mm x 105 mm Power: 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 Charger Input (AC): 85 V ac 50/60 Hz 20 VA |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec SheetsApplication Notes
| Weight | 8.2 lbs |
|---|---|
| Dimensions | 10.6 × 10.9 × 6.3 in |
