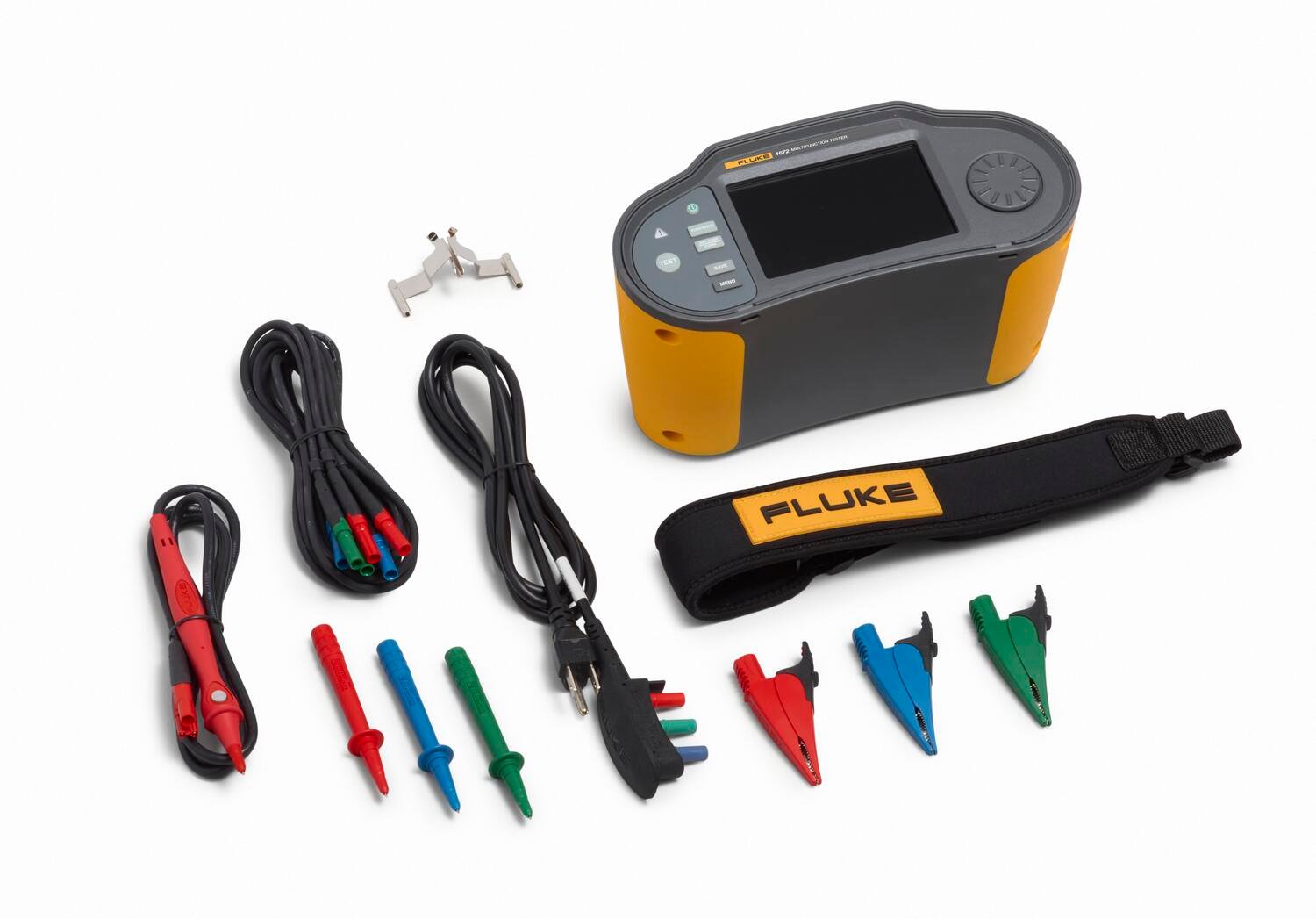

Fluke 1672 US – Multifunction Installation Tester
11 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
1672 US, INSTALLATION TESTER W/MEM
- Verify the safety of electrical installations in domestic, commercial and industrial applications
- Meets the requirements of IEC/HD 60364-6 and all relevant local installation test standards
- Enables users to perform tests faster and spend less time on documentation
- Color touchscreen display can be used with and without safety gloves
- USB-C port for charging, data transfer and firmware updates
- Compact and lightweight (less than 3.5lbs) with padded neck strap
- Rechargeable 2500 mAh Li-ion to cover a full day of testing
Guarantee Safe and Secure Payment Checkout
Description
Fluke 1672 US
- Verify the safety of electrical installations in domestic, commercial and industrial applications
- Meets the requirements of IEC/HD 60364-6 and all relevant local installation test standards
- Enables users to perform tests faster and spend less time on documentation
- Color touchscreen display can be used with and without safety gloves
- USB-C port for charging, data transfer and firmware updates
Multifunction Installation Tester
The Fluke 1670 Series Multifunction Installation Testers transform installation testing with an ergonomic design, seamless user interface, integrated data management capabilities, wireless connectivity (1673 FC and 1674 FC), and comprehensive reporting software. The 1670 Series sets the new standard for an integrated installation testing solution, simplifying installation testing and reducing documentation time.
Reliable installation testing is crucial for ensuring the safety, optimal functionality, and integrity of a facility’s electrical systems. The 1670 Series’ rugged design allows you to verify the safety of electrical installations in domestic, commercial, and industrial applications while meeting the requirements of IEC/HD 60364-6 and all relevant local installation test standards. With the 1670 Series, you’ll be able to perform your required testing quickly and accurately, reducing the time you spend on documentation, all while having confidence in the data you’re collecting. The Fluke 1670 Series Multifunction Installation Testers simplify installation testing, making it more efficient and effective.
Voltage drop measurements
- Measurement of the voltage drop as absolute value (V) and relative value (%)
- Performs a line impedance measurement at the origin of supply and the end of a circuit
- Nominal load current of the circuit selectable
- Limit set to 4% acc. to IEC 60364-xx or also user defined
Several versions available
Fluke offers three versions of its 1670 installation tester. The chart below highlights several main features of each.
1670 features
| 1672 | 1673 FC | 1674 FC | |
| Full color touch screen | x | x | x |
| Insulation PreTest safety function | x | ||
| Insulation at L-N, L-PE, N-PE inputs | x | x | x |
| Auto Test sequence | x | x | |
| Auto pass/fail results | x | x | x |
| Loop and line impedance – mΩ resolution | x | ||
| Continuity at L-N, L-PE, N-PE inputs | x | x | x |
| Test smooth DC sensitive RCDs (Type B/B+) | x | x | |
| Earth resistance | x | x | |
| Voltage AC, DC and frequency | x | x | x |
| Wiring polarity checker, detects broken PE and N wires | x | x | x |
| Insulation resistance | x | x | x |
| Continuity and resistance | x | x | x |
| Measure motor windings and continuity test (@10mA) | x | x | x |
| Loop and line impedance | x | x | x |
| Prospective Earth Fault Current (PEFC/IK) | x | x | x |
| Prospective Short-Circuit Current (PSC/IK) | x | x | x |
| RCD trip time | x | x | x |
| RCD trip current (ramp test) | x | x | x |
| Measure trip time and current for RCD type AC, A and F in 1 test | x | x | x |
| RCD variable test current | x | x | x |
| Automatic RCD test sequence | x | x | x |
| Phase test sequence | x | x | |
| Voltage drop measurement | x | x | x |
| Insulation monitoring device (IMD) test | x | ||
| Surge protection device (SPD) test | x | ||
| Fluke Connect compatibility | x | x | |
| Fluke Cloud storage | x | x | |
| On/off switchable auto start for continuity, RCD and loop test | x | x | x |
| Illuminated display | x | x | x |
| Z Max memory | x | x | |
| Memory | x | x | x |
| USB-C, BLE interface | USB-C | USB-C/BLE | USB-C/BLE |
1670 packages
Within each model, there are also packages with additional products including Fluke TruTest software and the 1630-2 FC earth ground clamp. The chart below provides an overview of each. Please refer to each item’s individual product page for specific contents.
| Model | Instrument | TruTest | 1630-2 FC |
| 1672 US | 1672 US | No | No |
| 1672 US FTT | 1672 US | Yes | No |
| 1673FC US | 1673FC US | No | No |
| 1673FC US FTT | 1673FC US | Yes | No |
| 1674FC US | 1674FC US | No | No |
| 1674FC US FTT | 1674FC US | Yes | No |
| 1674FC US/1630 | 1674FC US | No | Yes |
| 1674FC US/1630/FTT | 1674FC US | Yes | Yes |
