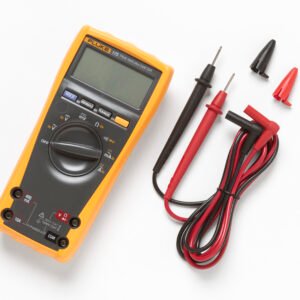

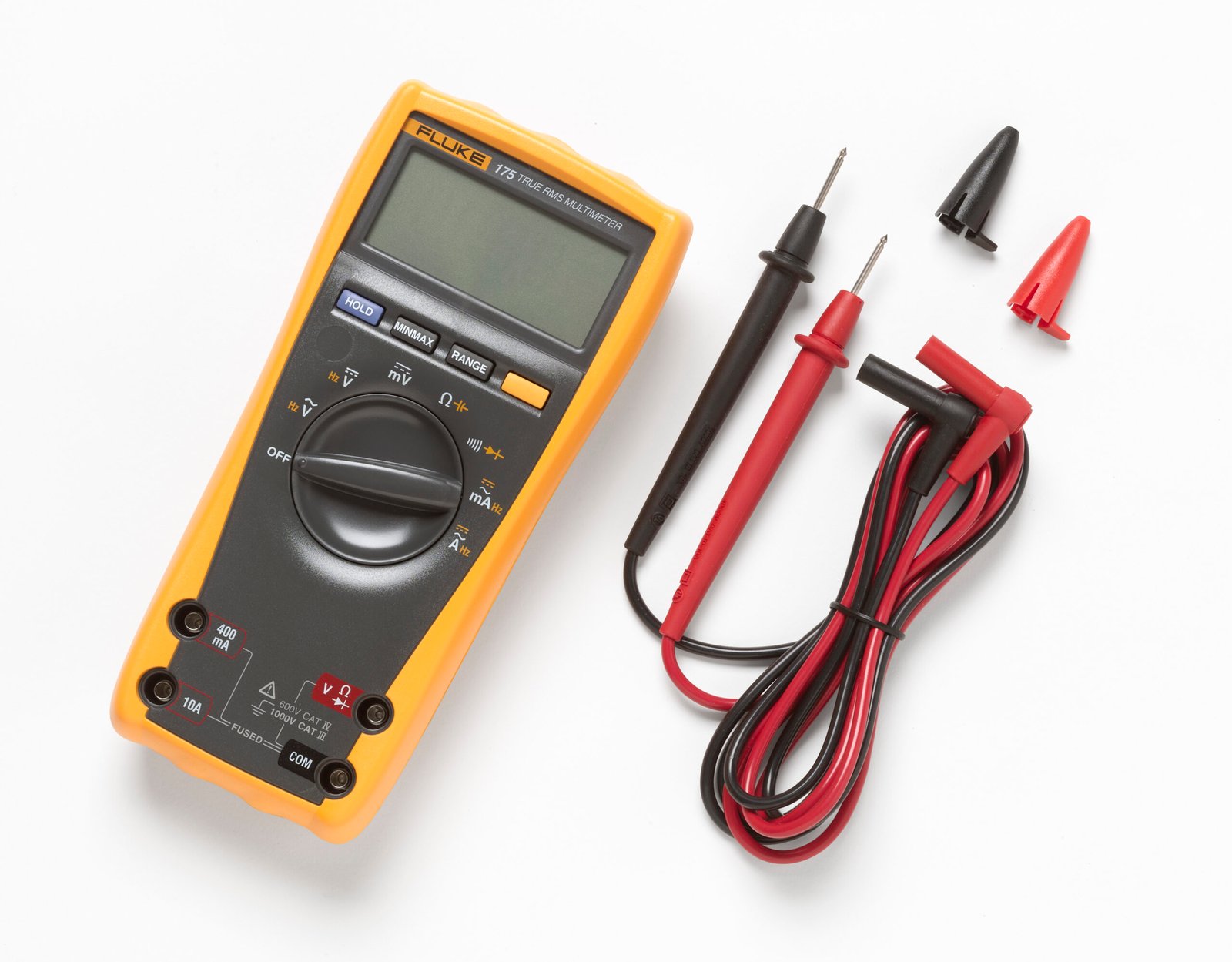

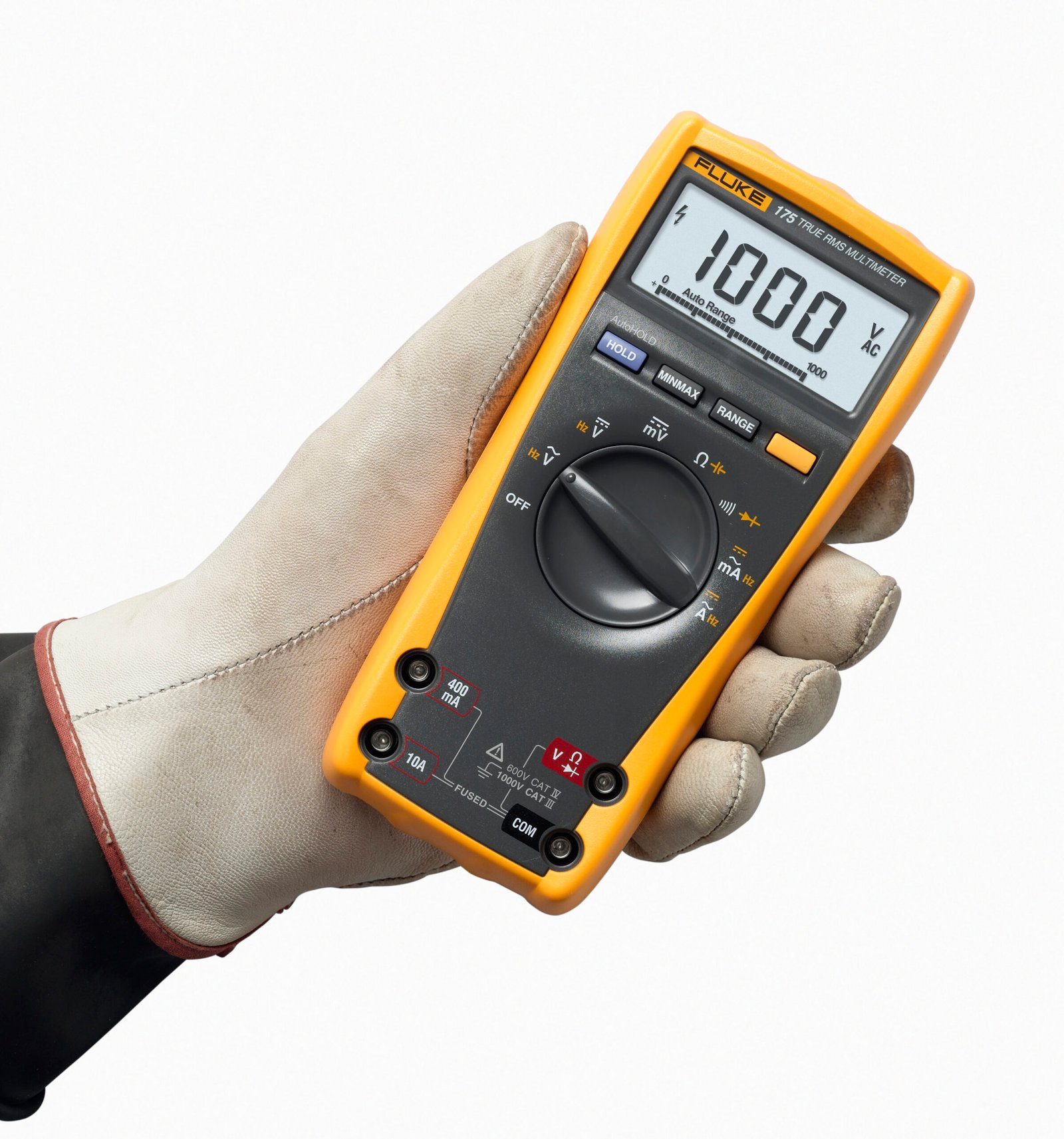

Fluke 175 – True RMS Digital Multimeter for General Purpose Applications
28 people are viewing this product right now
Original price was: $456.48.$388.28Current price is: $388.28.
Shipping calculated at checkout.
Estimated delivery:3 days
Fluke 175 ESFP True-RMS AC/DC Digital Multimeter, 1000V
- Digital multimeter for general-purpose applications
- Provides baseline general purpose features required by professional technicians
- Troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode
- True RMS for accurate voltage and current readings when measuring complex AC signals
- 0.15% basic DC accuracy
- This model does not have a backlight or measure temperature
- AC/DC voltage: 1000V
- AC/DC current: 10A
- 3.5 digits / 6000 counts
- CAT III 1000V, CAT IV 600V
Guarantee Safe and Secure Payment Checkout
Description
Fluke 175
- Provides baseline general-purpose features required by professional technicians
- Basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode
- True RMS for accurate voltage and current readings when measuring complex AC signals
- 0.15% basic DC accuracy
- This model does not have a backlight or measure temperature
True RMS Digital Multimeter for General Purpose Applications
The Fluke 175 True RMS Digital Multimeter delivers the baseline general-purpose features required by professional technicians around the world. You can find problems fast with all the basic troubleshooting measurements such as frequency, capacitance, resistance, continuity, and diode. And Display Hold and Auto Hold will help you capture significant events.
Safety rated for industrial use
All inputs on the 175 are protected to IEN61010-1 CAT IV 600V/CAT III 1000V. UL, CSA, TUV listed, and VDE Pending. You can rely on the Fluke 175 for accurate, true-RMS readings through years of reliable service.
Other useful features:
- Safety rated CAT III 1000V, CAT IV 600V
- Comes with a lifetime warranty
- Allows closed-case calibration through the front panel
- Includes ergonomic case with integrated protective holster
Several versions available
The chart below outlines the features of the 170 series. The main differences include basic DC accuracy, temperature, and backlight.
For more information on the 170 series, please click here.
For selection criteria on the Fluke digital multimeter portfolio, please click here.
| 175 | 177 | 179 | |
| Counts | 6000 | 6000 | 6000 |
| True RMS readings | ✓ | ✓ | ✓ |
| Basic DC accuracy | 0.15% | 0.09% | 0.09% |
| AC bandwidth | 1 kHz | 1 kHz | 1 kHz |
| AC/DC voltage | 1000V | 1000V | 1000V |
| AC/DC current | 10A | 10A | 10A |
| Resistance | 50MΩ | 50MΩ | 50MΩ |
| Frequency | 100 kHz | 100 kHz | 100 kHz |
| Capacitance | 9999µF | 9999µF | 9999µF |
| Temperature | – | – | 752°F |
| Continuity/diode | ✓ | ✓ | ✓ |
| Analog bar graph | ✓ | ✓ | ✓ |
| Backlight | – | ✓ | ✓ |
| CAT III rating | 1000V | 1000V | 1000V |
| CAT IV rating | 600V | 600V | 600V |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV Resolution AC Volts Range / Resolution |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV Resolution DC Volts Range / Resolution |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA Resolution AC Current AC Amps – (True-rms) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 mA Resolution DC Current AC Amps – (True-rms) |
| Basic Accuracy V DC | 0.15 Basic Accuracy V DC ± (0.15%+2 counts ) |
| # Digit Display | 3.75 |
| Counts | 6000 . Counts Updates 4 x second |
| Backlight | No |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes Resistance Accuracy ± (0.9%+1 counts ) Range / Resolution |
| Frequency | Yes Frequency Accuracy* ± (0.1%+1) |
| Capacitance | Yes Capacitance Accuracy* ± (1.2%+2 counts ) Range / Resolution |
| Temperature | No |
| Diode Testing | Yes Diode Testing Range: 2.400V |
| CAT Rating | IV CAT Rating Overvoltage category |
| CAT Voltage | 1,000 V, 600 V CAT Voltage EN 61010-1 to 1000 V CAT III |
| Intrinsically Safe | No |
| Peak Hold | No Peak Hold HOLD: freezes the display at the push of a button |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | •Manual and automatic ranging •Display Hold and Auto Hold •Frequency and capacitance measurements •Resistance, continuity and diode measurements •Min-max-average recording •Closed case calibration through front panel •Ergonomic case with integrated protective holster |
| Warranty | 1 LIMITED LIFETIME (1 YEARS) |
| Warranty Details | Limited Lifetime Warranty |
| Safety Approval | CSA, UL Safety Approval TUV listed and VDE Pending |
| Interfaces I/O | Analog Output, Analog Input |
| Product Weight | 0.93 LBS |
| Product Height | 1.69 IN |
| Product Length | 7.28 IN |
| Product Width | 3.54 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration Calibration Included Factory Certification without certification |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
