Description

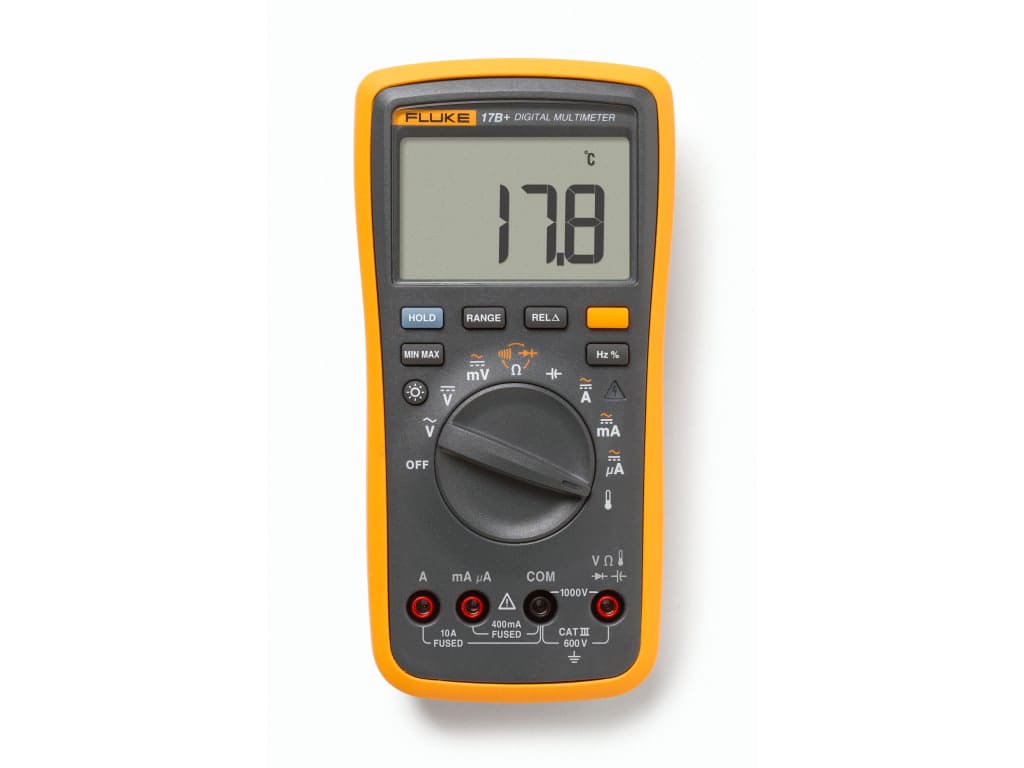

Fluke 17B+
- Includes several functions not found on 15B+, including temperature and frequency
- AC/DC voltage: 1000V
- AC/DC current: 10A
- Frequency: 10 Hz to 100 kHz
- Temperature: -55 to 400°C (thermocouple included)
Digital Multimeter (1000V/10A) with Temperature and Frequency

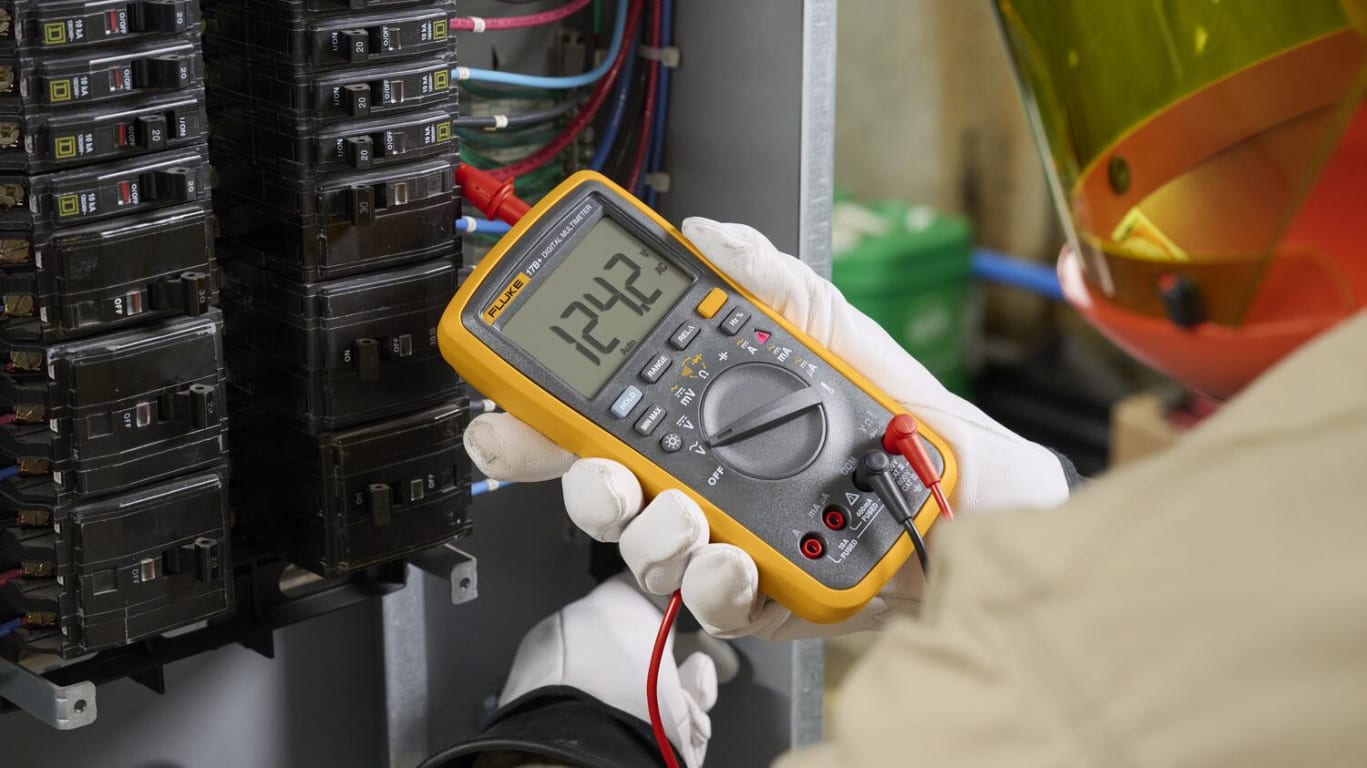

The Fluke 17B+ Digital Multimeter is a great tool for electricians and DIY enthusiasts who want quality, accuracy, and safety. It features AC/DC voltage and current measurements up to 1000V and 10A, along with resistance, continuity, diode, capacitance, frequency, and temperature testing capabilities. Its CAT III 600V rating and overload protection give you confidence in your safety, and its large backlit display, small size, and ruggedness make it ideal for on-the-go electrical system testing.
It is ideal for a variety of testing applications, including residential, commercial, and industrial electrical systems, HVAC systems, and electronic equipment.
Large backlit display
The Fluke 17B+ Multimeter has a large, easy-to-read display with bright white backlight, ideal for reading measurements in any lighting condition. Work in dimly lit areas with ease, enhancing your efficiency and accuracy.

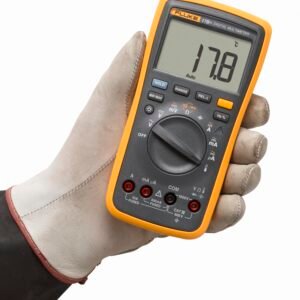

Note: image shows meter with optional TPAK magnetic hanger.

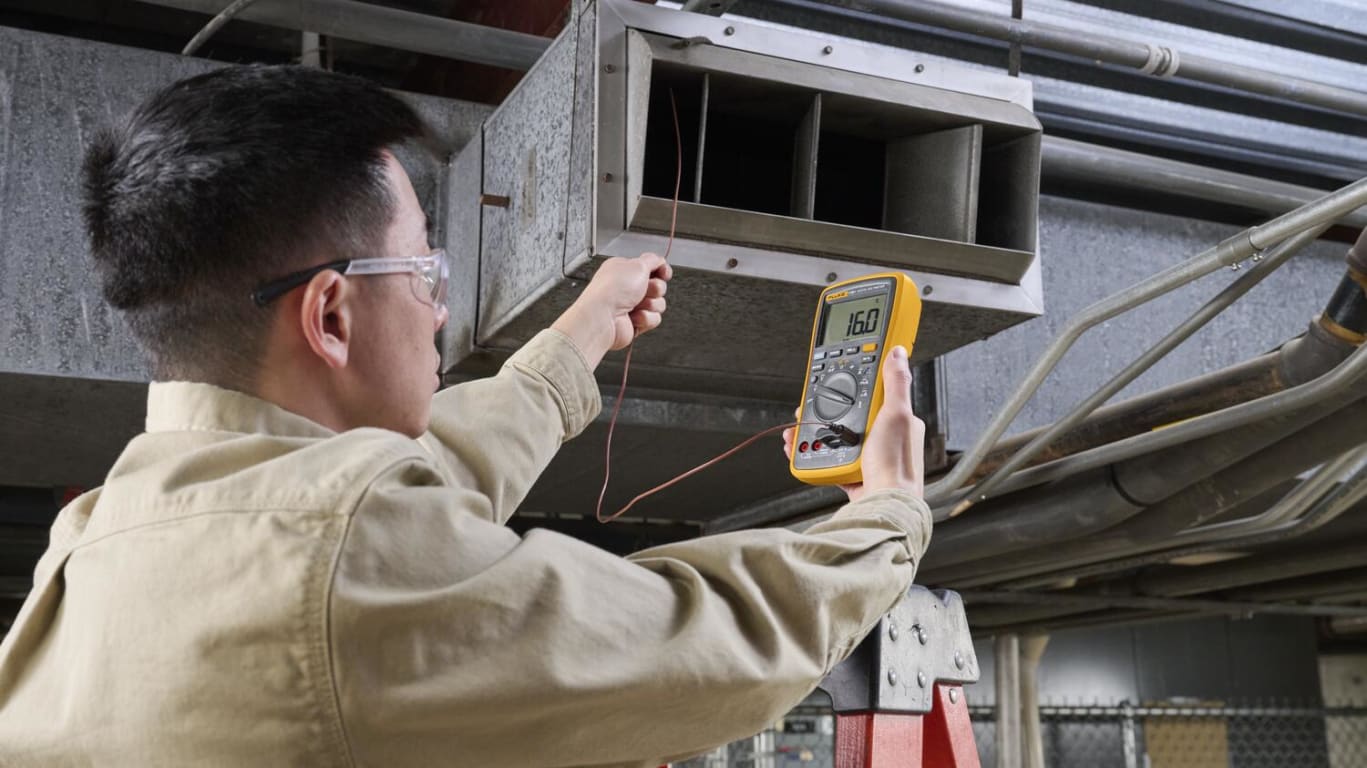

Temperature measurement
The Fluke 17B+ multimeter features a temperature measurement function, allowing you to easily monitor heating and cooling systems with its included type K thermocouple, with a measurement range up to 400C.
Product comparison
The 15B+ and 17B+ offer similar feature sets, however the 17B+ was designed to provide several additional testing functions, including temperature and frequency.
The chart below outlines several main features of each. For more detailed information, please click here.
| 15B+ | 17B+ | |
| AC/DC voltage | 1000V | 1000V |
| AC/DC current | 10A | 10A |
| Resistance | 40MΩ | 40MΩ |
| Capacitance | 1000µF | 1000µF |
| Diode test | ✔ | ✔ |
| Continuity | ✔ | ✔ |
| Backlight | ✔ | ✔ |
| Frequency | ✔ | |
| Duty cycle | ✔ | |
| Temperature | ✔ | |
| CAT III rating | 600V | 600V |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Resolution DC Current | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | 0.5 |
| Counts | 4000 . |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | 1 % to 99 % with 0.1 % resolution |
Product General Attributes | |
| Warranty | 1 YEARS |
| IP Rating | IP40 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
