Description

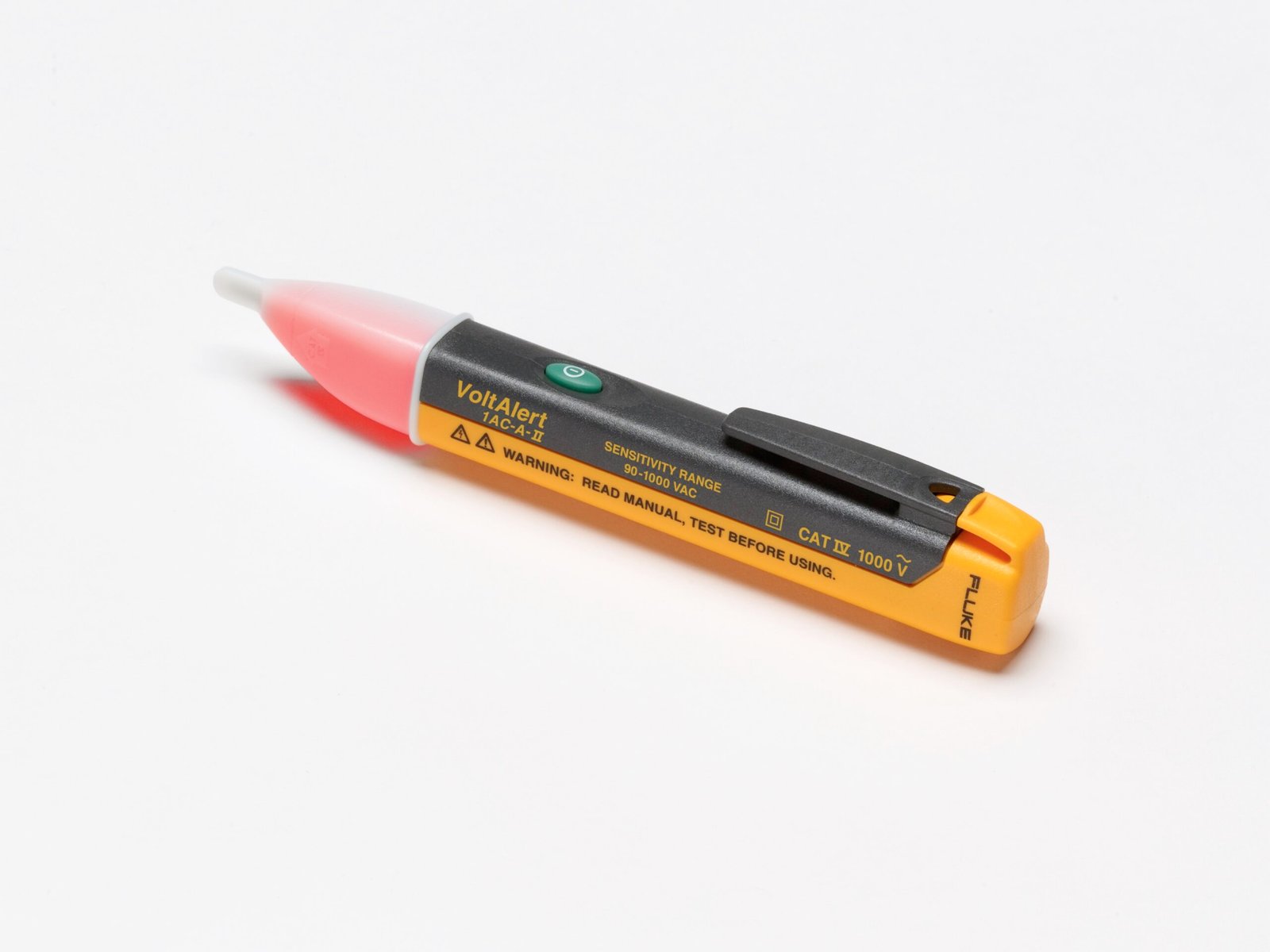

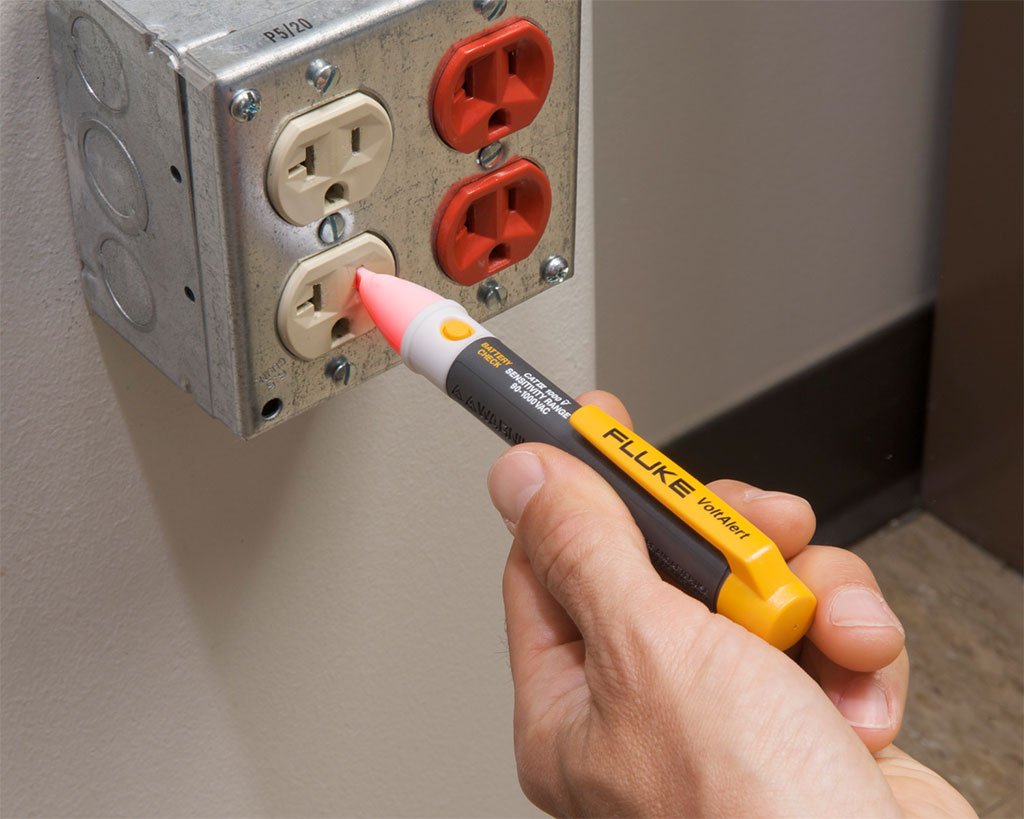

Simply touch the tip to a terminal strip, outlet or cord. When the tip glows red, and the unit beeps, you know there’s voltage in the line. Electricians, maintenance, service, safety personnel can quickly test for energized circuits and defective grounds on the factory floor, in the shop. Continually tests its battery and its circuit integrity with a periodic double flash visual indication using fluke voltbeat technology. It comes with a two year warranty. It detects line voltage from 90vac – 600vac (1AC-AI-II).
Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template | |
|---|---|
| Style (voltage) | Pen |
| Voltage Range (voltage detector) | 1kV |
| AC Volts | Yes |
| DC Volts | No |
| Voltage Display | No |
| Audible Alert | Yes |
| Visual Alert | Yes |
| Flashlight Option | No |
| Data Hold | No |
| Resistance Testing | No |
| Continuity Test | No |
| Diode Testing | No |
| CAT Rating | IV |
| CAT Voltage | 1,000 V |
Product General Attributes | |
| Unique Features | Voltbeat™ technology and continuous self-test – so you always know it’s working. Upon detection, tip glows and beeper sounds. CAT IV 1000 V for added protection. Expanded range: 90 V AC to 1000 V AC. 20 V to 90 V AC control circuit model also available. Two-year warranty. Batteries included. On/Off Button. Audible/Silent. |
| Warranty | 2 YEARS |
| Safety Approval | CSA |
| Product Weight | 2.37 LBS |
| Product Height | 1.57 IN |
| Product Length | 10.24 IN |
| Product Width | 2.99 IN |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| UPC | 09596939193 |
