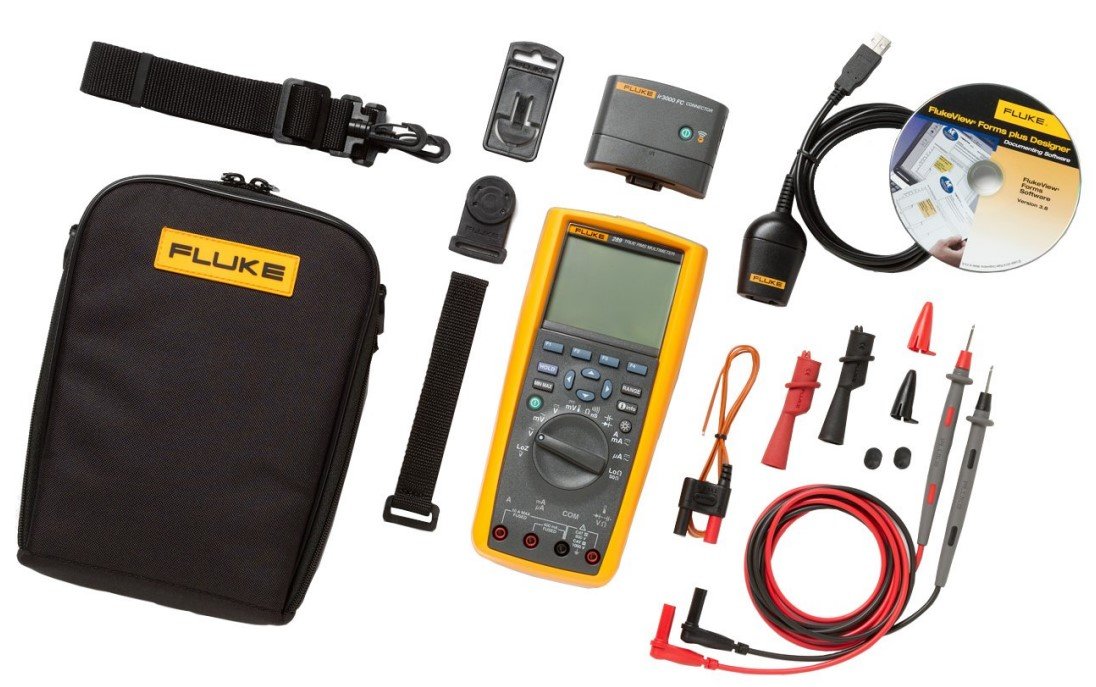

Fluke 287/FVF/IR3000 – FlukeView Forms Combo Kit with IR3000FC Connector

• Package with Fluke 287, FlukeView Forms software and more
• Includes IR3000FC infrared connector for FlukeConnect
• Compatible with Fluke Connect mobile app and all Fluke FC enabled test tools
• Let your team see what you see with ShareLive video call using the Fluke Connect app and IR3000
• FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements

Maximize productivity with the combined Fluke 287 and FlukeView Forms Combo Kit. With built-in data logger and TrendCapture capability, the 287 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Using FlukeView Forms software allows you to overlay your logged data from six meters or six time periods to find cause and affect relationships or for condition monitoring. Turn your data into meaningful graphs and tables for a professional report or analyze individual readings or series of measurements.

The 287 is compatible with the Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit, which now includes the ir3000 FC Connector, gives you a practical and affordable approach to predictive maintenance.

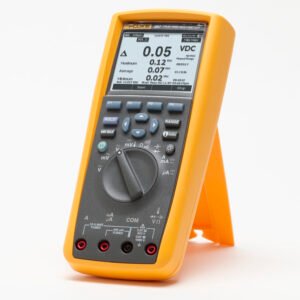

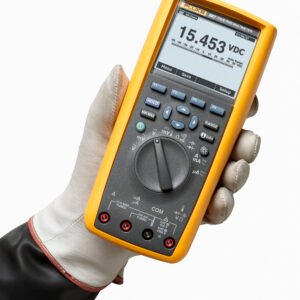

The Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before.

Logging Function with TrendCapture is an essential tool for documenting the performance of your designs, processes or systems, monitoring unattended while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time, storing up to 10,000 readings. Using on-board TrendCapture, you can graphically view logged readings without a PC. (Software and interface cable not included in all packages)

“i” button gives you instant access to on-board help screens for every measurement function. Unsure about a function? Select it and Press the “i” button for more information.

The MIN MAX Record mode captures minimum, average, and maximum input values. When the input goes below the recorded minimum value or above the recorded maximum value, the meter beeps and records the new value. The meter stores the elapsed time since the recording session was started at the same time. The MIN MAX mode also calculates an average of all readings taken since the MIN MAX mode was activated.

This mode is for capturing intermittent readings, recording minimum and maximum readings unattended, or recording readings while equipment operation precludes watching the meter. The MIN MAX mode is best for recording power supply surges, inrush currents, and finding intermittent failures.

Peak record is very similar to the MIX MAX function, with a signification difference being the shorter response time for peak recording: 250 μs. With this short response time, the actual peak values of a sinusoidal signal are measurable. Transients are more accurately measured using the peak record feature.

In the secondary area of the display, the maximum and minimum peak values as well as the average value are shown along with their respective time stamps. The time stamp next to the average value indicates the elapsed time of the peak recording session. The peak recording session start time is shown along the bottom of the page area of the display.

When the peak value of the input signal goes below the recorded minimum value or above the recorded maximum value, the Meter beeps and records the new value. At the same time, the elapsed time since the peak recording session was started is stored as the recorded value’s time stamp.

The Meter is capable of displaying voltage as a dB value, either relative to 1 milliwatt (dBm), a reference voltage of 1 volt (dBV) or a user-selectable reference value.

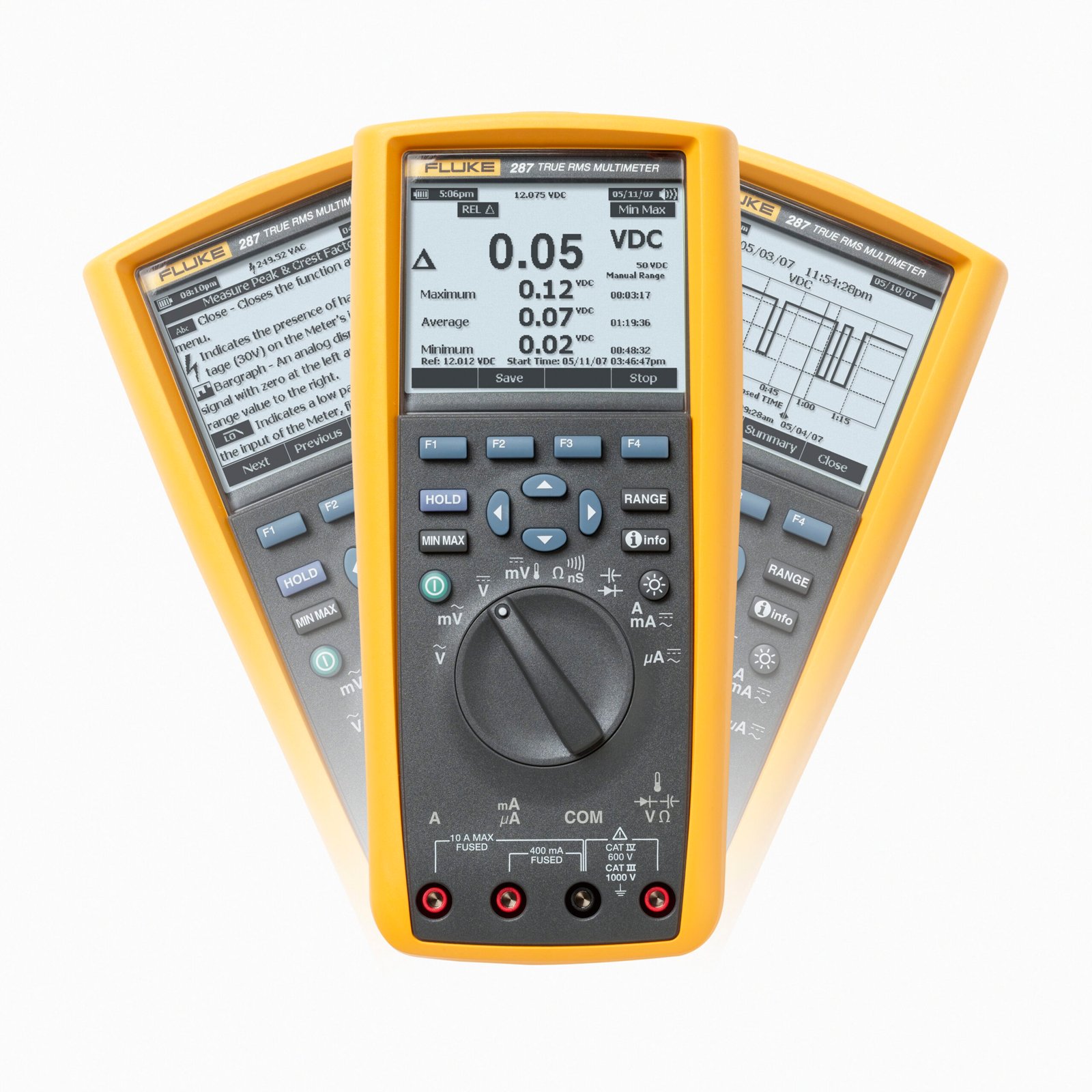

1. Softkey labels – Indicates the function of the button just below the displayed label

2. Bar graph – Analog display of the input signal

3. Relative – Indicates the displayed value is relative to a reference value

4. Minus sign – Indicates a negative reading

5. Lightning bolt – Indicates hazardous voltage present at the Meter’s input

6. Remote communication – Indicates activity over the communication link

7. Battery level – Indicates the charge level of the six AA batteries

8. Time – Indicates the time set in the internal clock

9. Mode annunciators – Indicates the meter’s mode

10. Mini measurement – Displays the lightning bolt (when necessary) and the input value when the primary and secondary displays are covered by a menu or pop-up message

11. Date – Indicates the date set in the internal clock

12. Beeper – Indicates the meter’s beeper is enabled (not associated with continuity)

13. Units – Indicates the units of measure

14. Auxiliary units – Indicates unitless measurements such as Crest Factor

15. Range indicator – Indicates the range the Meter is in and the ranging mode (auto or manual)

16. Secondary display – Displays secondary measurement information about the input signal

The chart below outlines main features and differences between the Fluke 287 and 289.
