Description

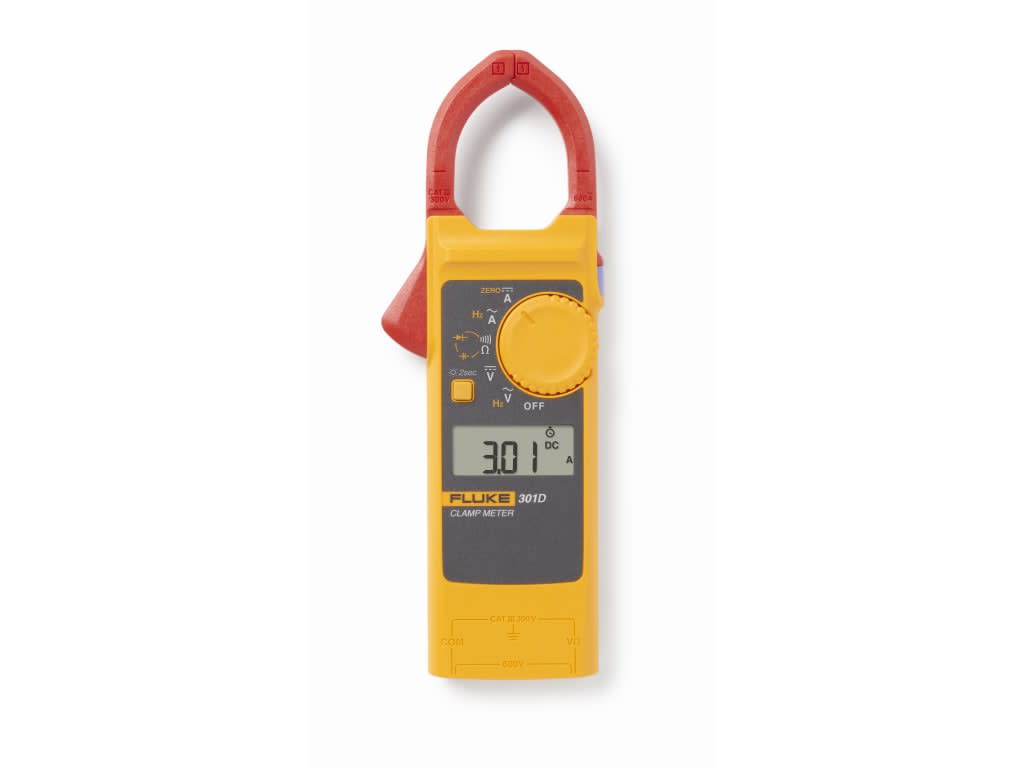

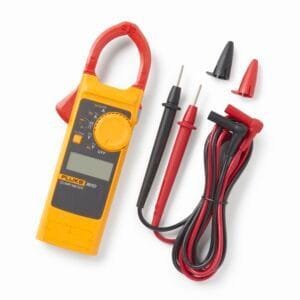

Fluke 301D
- 600 A AC/DC range, 0.01 A high resolution
- Slim, thin 10 mm jaw easily fits into tight spaces
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
600A AC/DC Clamp Meter with Slim Body and Thin Jaw Arm
The Fluke 301D AC/DC Clamp Meter is a versatile tool that is designed to make your job easier. Its lightweight and compact body make it easy to carry in your pocket, and its slim and thin jaw allows it to fit into cabinets that are tightly packed with wires. With the ability to test current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode testing, the 301D can handle multiple test needs in a single tool. With its AC/DC function, it can be used for a wide range of applications including building wiring, lighting, switches, outlets, motors, and electronics.
Features and Controls
The 301D features a compact design and easy-to-use controls with a logical layout.
1. Jaw
2. Tactile Barrier
3. Hold
4. Control Knob
5. Display
6. Extends the function selection to yellow items on the control knob. Push >2 s to turn on/ turn off the backlight.
7. Trigger
8. COM terminal
9. Volts/Ohm input terminal
Display
The display of the 301D makes it simple to read test results and instrument settings at a glance.
1. Hazardous voltage
2. Diode test selected
3. Continuity selected
4. Display hold enabled
5. Zero indication
6. Auto Power off
7. Low battery. Replace battery.
8. DC or AC measurement
9. Farads for capacitance
10. Unit of measurement for voltage or current
11. Unit of Resistance or Frequency
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | No |
| Maximum Current AC | 600 A |
| Maximum Current DC | 600 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
Product General Attributes | |
| Warranty | 1 YEARS |
| Battery Type | AAA |
