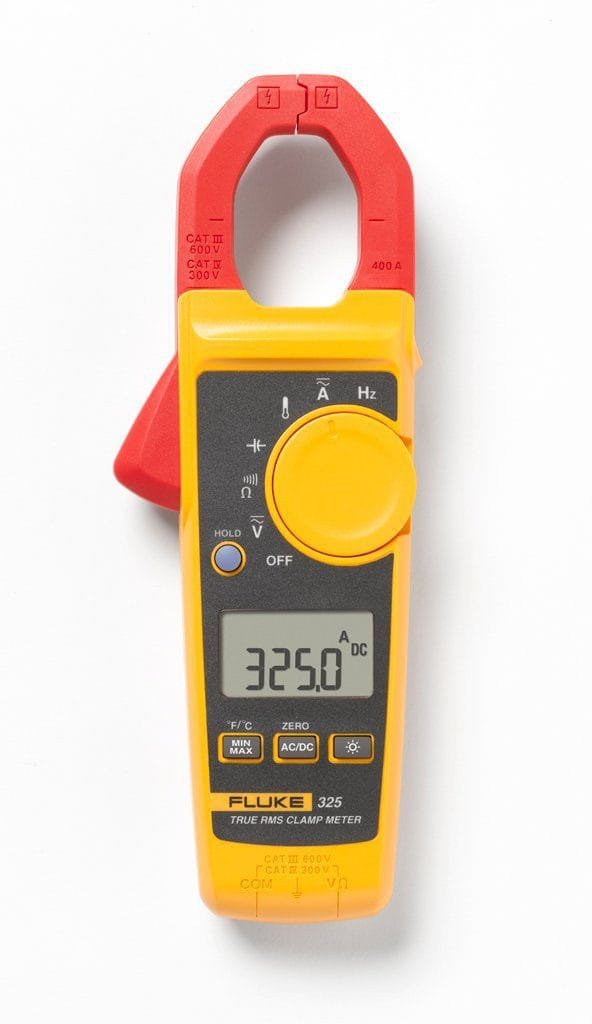

Fluke 325 CAL – True RMS Clamp Meter (Includes NIST Traceable Calibration with Data)
29 people are viewing this product right now
Original price was: $769.98.$654.95Current price is: $654.95.
Shipping calculated at checkout.
Estimated delivery:4 days
400A AC/DC TRUE RMS CLAMP METER W/TEMP, CAL TRACEABLE W DATA
- Includes NIST traceable calibration with data
- Versatile tool performs most front-line measurement tasks
- AC/DC voltage: 0 to 600V
- AC/DC current: 0 to 40A/400A
- Capacitance: 100µF to 1000µF
- Frequency: 5Hz to 500Hz
- Temperature: 14 to 752°F with included K-type thermocouple
- Resistance: 0 to 40k ohms
- Min/max function records important values
- Jaw opening: 30mm (1.18 inch) and CAT IV 300V, CAT III 600V
Guarantee Safe and Secure Payment Checkout
Description
Fluke 325 CAL
- Includes NIST traceable calibration with data
- Versatile tool performs most front-line measurement tasks
- AC/DC voltage: 0 to 600V
- AC/DC current: 0 to 40A/400A
True RMS Clamp Meter (Includes NIST Traceable Calibration with Data)

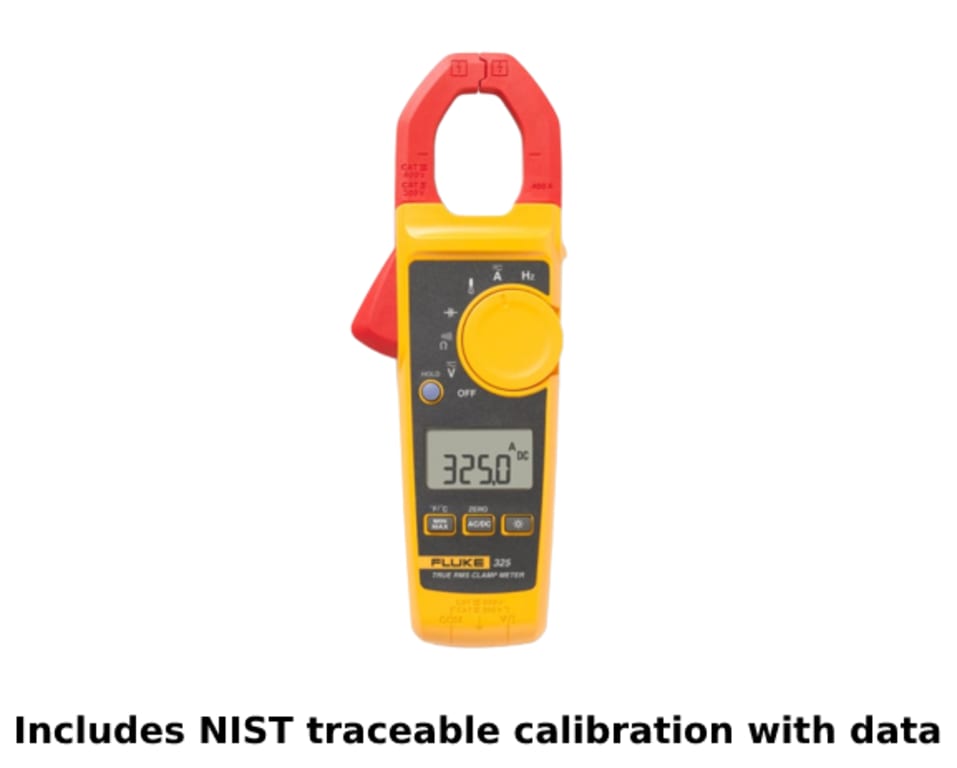

This version of the Fluke 325 includes NIST traceable calibration with data.
The Fluke 325 True-RMS Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the 325 measures:
- DC current
- DC voltage
- Temperature
- Frequency
You’ll carry fewer tools in your bag and get more work done.
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use, and affordable. This clamp meter offers True-RMS AC voltage and current measurements on non-linear signals. Paired with the CAT III 600V, and CAT IV 300V safety ratings the clamp meter can also measure:
- Measures AC/DC current up to 400 A through jaw
- AC/DC voltage to 600V using test leads
- Measures frequency from 5Hz to 500Hz; resistance to 40kΩ
- Measures temperature from -10°C to 400°C with included K-type thermocouple
- Min/Max function records important values
Several versions available
Fluke offers several clamp meters in its 320 series. The chart below outlines several main features of each.
For more information on the Fluke 320 series, please click here.
For an overview of the Fluke clamp meter portfolio, please click here.
| 323 | 324 | 325 | |
| AC current | 400A | 40A/400A | 40A/400A |
| DC current | – | – | 40A/400A |
| AC voltage | 600V | 600V | 600V |
| DC voltage | 600V | 600V | 600V |
| Resistance | 400Ω/4000Ω | 400Ω/4000Ω | 400Ω/4000Ω/40kΩ |
| Continuity | ≤ 70Ω | ≤ 30Ω | ≤ 30Ω |
| Capacitance | – | 100µF to 1000µF | 100µF to 1000µF |
| Frequency | – | – | 5Hz to 500Hz |
| AC response | True RMS | True RMS | True RMS |
| Backlight | – | Yes | Yes |
| Data hold | Yes | Yes | Yes |
| Contact temp | – | 14 to 752°F | 14 to 752°F |
| Min max | – | – | Yes |
| CAT III | 600V | 600V | 600V |
| CAT IV | 300V | 300V | 300V |
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A Maximum Current AC Dual Scale: 40A/400A |
| Maximum Current DC | 400 A Maximum Current DC Dual Scale 40A/400A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) Maximum Conductor Size 600MCM |
| Resistance | Yes Resistance 400.0Ω/4000Ω |
| Capacitance | Yes Capacitance 100.0 μF to 1000 μF |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Product General Attributes | |
| Unique Features | Slim, ergonomic design. Large, easy to read backlight display. CAT IV 300V/CAT III 600 V safety rating. Hold button. Two-year warranty. Soft carrying case. |
| Warranty | 2 YEARS |
| Safety Approval | CE, CSA |
| Product Weight | 1.59 LBS |
| Product Height | 2.95 IN |
| Product Length | 9.65 IN |
| Product Width | 4.33 IN |
| Data Logging | No |
| Calibration Included | NIST Calibration |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| UPC | 095969623766 |
