Description
Versatile and rugged tools for applications with high currents.

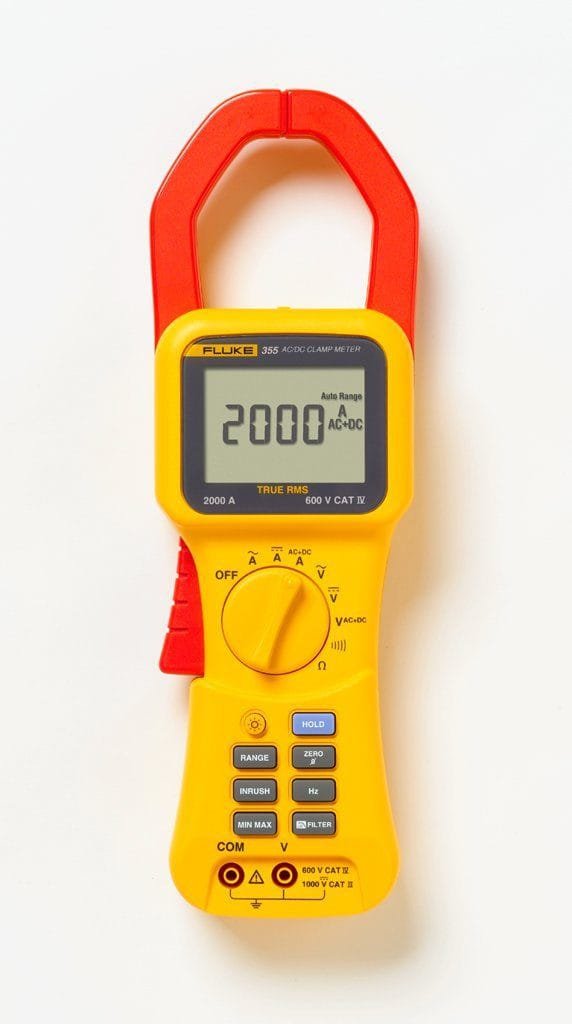

Confidently take reliable readings with the True-rms, Fluke 355 and 353 digital clamp meters; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.
Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads. The 355 also measures voltage and resistance, making this an ideal clamp meter for utilities, electrical contractors and industrial service technicians.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1400 A |
| Maximum Current DC | 2000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 2.18 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Product General Attributes | |
| Unique Features | The large 58 mm (2.3 in) jaw capacity is suitable for large, or multiple conductors. In-rush current measurement captures ‘power-on’ surge current with accuracy and repeatability. A large backlit display allows for easy visibility in low-lit areas. |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| IP Rating | IP42 |
| Product Weight | 1.8 LBS |
| Product Height | 2 IN |
| Product Length | 12 IN |
| Product Width | 3.75 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Calibration Included | |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 4.25 IN |
| Shipping Length | 14.00 IN |
| Shipping Width | 8.50 IN |
