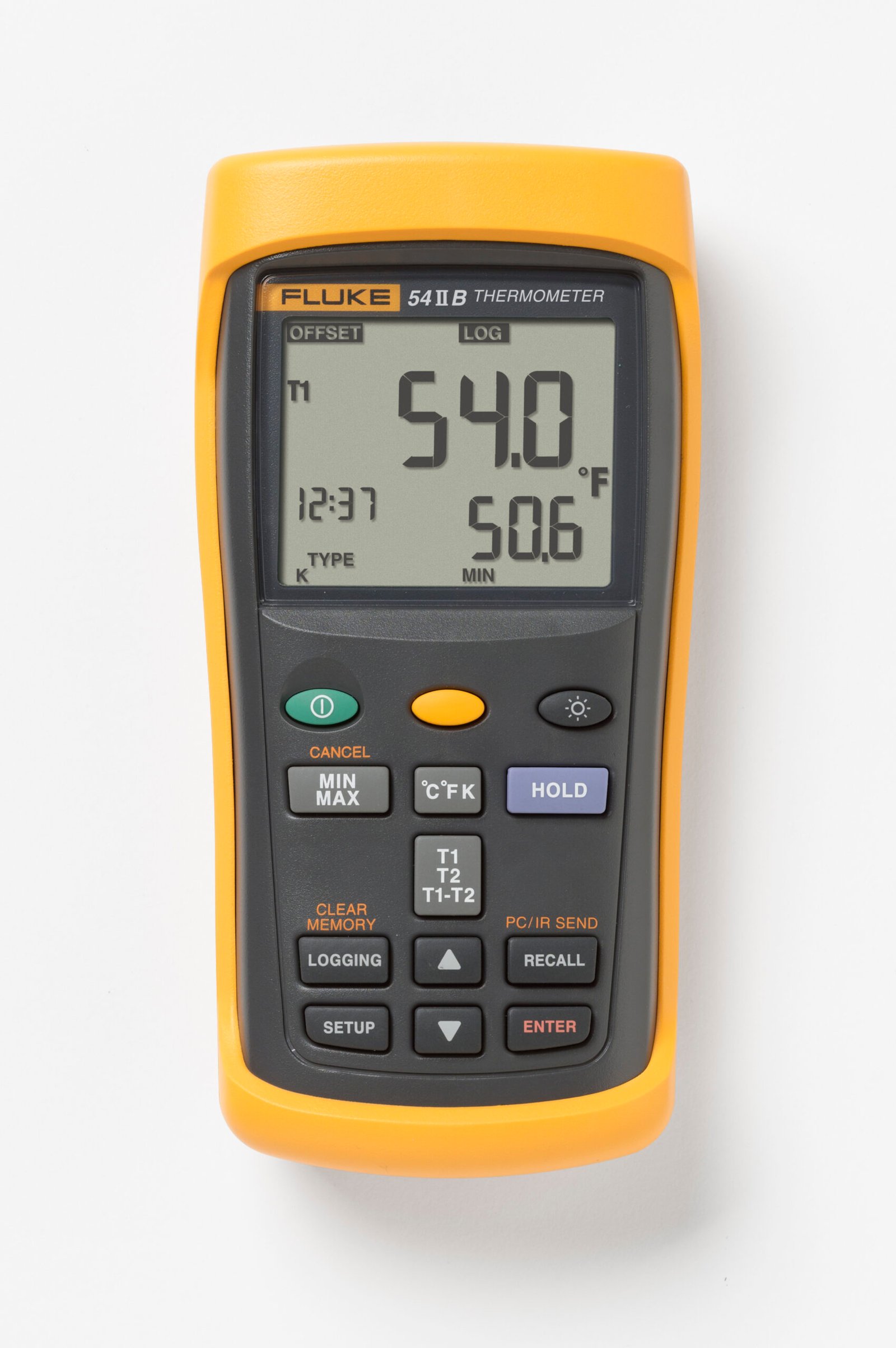

Fluke 54-2 B 60HZ – Dual Input Digital Thermometer with Data Logging
29 people are viewing this product right now
Original price was: $769.98.$654.95Current price is: $654.95.
Shipping calculated at checkout.
Estimated delivery:3 days
DUAL INPUT THERMOMETER W/ USB RECORDING, 60HZ NOISE REJECTION
- Dual input digital thermometer
- Logs up to 500 points of data at user adjustable recording intervals
- Thermocouple types: J, K, T, E, N, R, S
- Large backlit dual display shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG
- Provides a recall function to easily review logged data
- Includes a real-time clock that captures the exact event time
- Infrared USB communication port to allow data to be exported to optional FlukeView Forms PC software
- Electronic offset function that compensates for thermocouple errors to maximize overall accuracy
- Laboratory accuracy (0.05% + 0.3°C)
- Presents results in °C, °F, or Kelvin (K) on a large backlit display
Guarantee Safe and Secure Payment Checkout
Description
Fluke 54-2 B 60HZ
- Logs up to 500 points of data at user adjustable recording intervals
- Thermocouple types: J, K, T, E, N, R, S
- Large backlit dual display shows any combination of T1, T2, T1-T2, plus MIN, MAX, or AVG
- Provides a recall function to easily review logged data
- Includes a real-time clock that captures the exact event time
Dual Input Digital Thermometer with Data Logging
Fluke 54 II B dual input digital thermometer can log up to 500 points of data to internal memory. Fast response and laboratory accuracy (0.05% + 0.3 °C). Take contact temperature for checking motors, insulation, breakers, pipes, corroded connections, liquids, and wires with industrial standard J, K, T, E, N, R, and S type thermocouple (temperature sensors).
Additional features:
- Easy-to-access battery door that allows replacing the battery without breaking the calibration seal
- Comes with splash- and dust-resistant case protected by an impact-absorbing holster and a three-year warranty
- Powered by three, standard AA batteries
- Includes a real-time clock that captures the exact event time
- Features an infrared USB communication port to allow data to be exported to optional FlukeView Forms Temperature PC software for further analysis and graphing
- Includes an electronic offset function that compensates for thermocouple errors to maximize overall accuracy
- Handles temperatures up to >900°C (1600°F)
- Provides a user-friendly front panel that is easy to set up and operate
- Offers sleep mode to increase battery life; 1000-hour battery life typical
- Offers optional ToolPak accessory to hang the thermometer from any metal object (with the rare earth magnet) or secure around a pipe (with hook-and-loop straps) for hands-free operation
Several versions available
Fluke offers several versions of its 50 Series II digital thermometer. The chart below outlines several main features of each:
| 51 II | 52 II | 53 II B | 54 II B | |
| Thermocouple types | J,K,T,E | J,K,T,E | J,K,T,E,N,R,S | J,K,T,E,N,R,S |
| Number of inputs | Single | Dual | Single | Dual |
| Time stamp | Relative time | Relative time | Time of day | Time of day |
| Dual display with backlight | ✔ | ✔ | ✔ | ✔ |
| Min/max/avg | ✔ | ✔ | ✔ | ✔ |
| True differential (T1-T2) | ✔ | ✔ | ||
| Data logging (500 points) | ✔ | ✔ | ||
| IR data port for PC | ✔ | ✔ | ||
| Compatible with FlukeView | ✔ | ✔ | ||
| Battery life (hours) | 1000 | 1000 | 1000 | 1000 |
Thermocouple temperature ranges:
- J-type Thermocouples: -210° C to 1200° C (-346° F to 2,192° F)
- K-type Thermocouples: -200° C to 1372° C (-328° F to 2,501 .6° F)
- T-type Thermocouples: -250° C to 400° C (-418° F to 752° F)
- E-type Thermocouples: -150° C to 1000° C (-238° F to 1,832° F)
- N-type Thermocouples -200° C to 1300° C (-328° F to 2,372° F)
- R and S-type Thermocouples: 0° C to 1767° C (32° F to 3,212.6° F)
Thermometers/Contact Thermometers Template | |
|---|---|
| Type (Contact Thermometers) | Thermocouple |
| Types RTD/Thermocouples Accepted | E, J, K, N, R, S, T |
| Number of Probe Inputs/Channels | 2 |
| Resolution (thermometers) | 0.1 °C, 0.1 K < 1000 1°C, 1 K >=1000 |
| Accuracy | Above -100 °C: J, K, T, E, and N-type: ±[0.05% + 0.3°C]* R and S-type: ±[0.05% + 0.4°C]* Below -100 °C: J, K, E, and N-types: ±[0.20% + 0.3°C]* |
| Differential Temperature | Yes |
| Food Safe | No |
Product General Attributes | |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Interfaces I/O | IR |
| Product Weight | 400 GRAMS (0.882 LBS) |
| Product Height | 38 MM (1.50 IN) |
| Product Length | 173 MM (6.81 IN) |
| Product Width | 86 MM (3.39 IN) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.19.8085 |
| ECCN Number | EAR99 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 400 lbs |
|---|---|
| Dimensions | 173 × 86 × 38 in |
