Description

Fluke 62 MAX CAL
- THIS VERSION INCLUDES TRACEABLE CALIBRATION WITH DATA
- Lightweight, compact infrared thermometers
- Temperature range: -30°C to 500°C (-22°F to 932°F)
- Distance to spot ratio: 10:1
- Accuracy: ± 1.5°C or ± 1.5% of reading, whichever is greater
Mini Infrared Thermometer (Includes Traceable Calibration with Data)
This version of the Fluke 62 MAX includes traceable calibration with data.

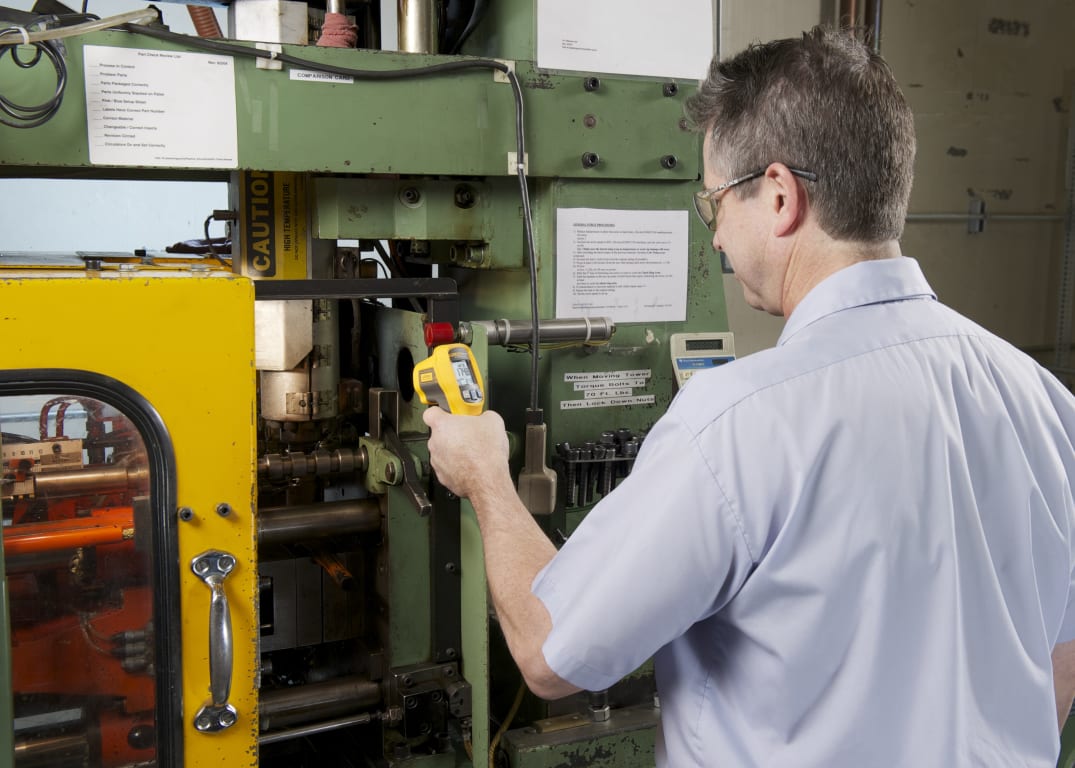

The Fluke 62 MAX Infrared thermometer delivers many of the features of the Fluke 62 MAX+, but features a single laser and 10:1 distance to spot ratio. You can use the Fluke 62 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents. It is small in size and extremely easy to use. The single laser helps you pinpoint the target for more accurate readings and makes it easier to measure temperatures in hard to reach areas. With its IP54 rating for dust and water resistance you can rely the Fluke 62 MAX to deliver accurate, repeatable temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites. And it’s rugged enough to take a 3-meter drop so no worries even if you work from a ladder.
Additional features:
- Powered by a single, standard AA battery
- Comes with a three-year warranty
- Withstands a 3 m (9.8 ft.) drop
- Offers small, lightweight form factor to clip comfortably to your tool belt or belt loop, or easily fit in your tool box
- Features a large, backlit display to make data easier to read, even in dark areas.
- Displays Min/Max/Avg/Dif: the minimum, maximum or average temperature, or the difference between two measurements
Several versions available
Fluke offers several varieties of its 60 Series handheld infrared thermometer. The chart below outlines several main features of each.
62 MAX | 62 MAX+ | 64 MAX | |
Temperature range | -22°F to 932°F | -22°F to 1202°F | -22°F to 1112°F |
Distance to spot | 10:1 | 12:1 | 20:1 |
Accuracy | 1.50% | 1.00% | 1.00% |
Response time | <500 ms | <300 ms | <500 ms |
Repeatability | ±0.8% or ±1°C* | ±0.5% or ±0.5°C* | ±0.5% or ±0.5°C* |
Adjustable emissivity | ✔ | ✔ | ✔ |
MIN/MAX readings | ✔ | ✔ | ✔ |
AVG readings | ✔ | ✔ | ✔ |
DIF readings | ✔ | ✔ | ✔ |
Backlit LCD | ✔ | ✔ | ✔ |
Flashlight | ✔ | ||
Data logging | 99 points | ||
Battery life | 10 hours** | 8 hours** | 30 hours** |
IP rating | IP54 | IP54 | IP54 |
* – whichever is greater
** – with laser and backlight on

Thermometers/IR Thermometers Template | |
---|---|
IR Temperature Max | 500 F |
IR Temperature Min | -30 F |
Field View Ratio (Spot Ratio) | 10:1 |
Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 |
Laser Pointer | Yes |
Backlight | Yes |
Emissivity Adjustable | Yes |
Alarm | Yes |
Data Hold | Yes |
Max./Min. | Yes |
Memory Recall | No |
Thermocouple Input | No |
Food Safe | No |
Product General Attributes | |
Unique Features | -10 foot drop test proof -Dust and water-resistant: IP54 rated for dust and water resistance. -Battery life 10 hours with laser and backlight on -Min/Max/Avg/Dif function -Hi and Lo alarm |
Warranty | 1 YEARS |
Additional Info/Comments | Response time <500 ms (95% of reading) |
IP Rating | IP54 |
Product Weight | 0.56 LBS |
Product Height | 6.88 IN |
Product Length | 3.34 IN |
Product Width | 2.95 IN |
Shipping Weight | 1.09 LBS |
Data Logging | No |
Battery Type | AA |
Power Supply Voltage | Battery Powered |
