Fluke 700PTP-1 Pneumatic Test Pump
32 people are viewing this product right now
$1,164.88
Shipping calculated at checkout.
Estimated delivery:5 days

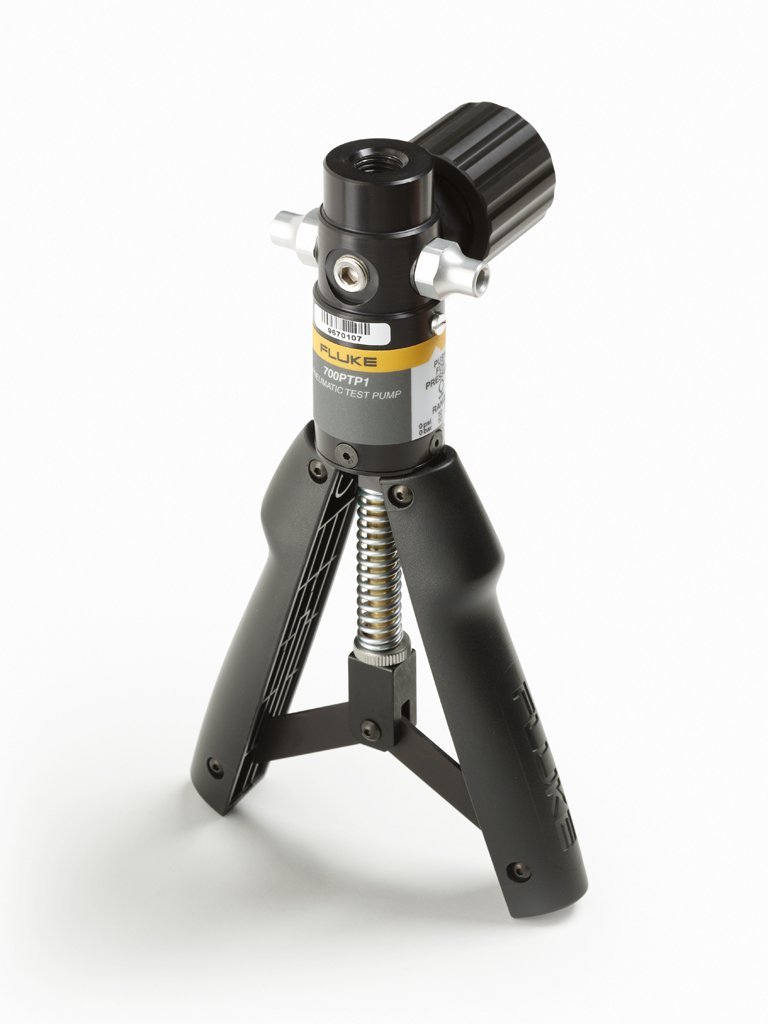

Fluke 700PTP-1 Pneumatic Test/Vacuum Pump, 600 psi, 40 bar/-13 psi, -0.9 bar
- Adjustable stroke length can be set to limit the pressure per stroke
- The vernier can be used as a stand-alone low pressure calibration source
- Two pressure ports allowing simultaneous connection
- ¼ -NPT female fitting for the reference gauge or pressure module
- ¼” NPT female fitting for the unit under test
- Pump can be easily cleaned without disassembly
Guarantee Safe and Secure Payment Checkout
Description
The Fluke-700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.
For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.
Process / Calibration/Pressure Calibration/Calibration Pumps Template | |
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 600 psi |
| Maximum Range Vacuum | -13.9 |
| Fluid Compatability | Air |
| Adjustable Vent Release | Yes |
| Adjustable Vacuum Release | Yes |
| Display | No |
| NIST Calibration | No |
| Kits Available | No |
Product General Attributes | |
| Unique Features | Pump can be easily cleaned without disassembly. he vernier can be used as a stand-alone low pressure calibration source. Two pressure ports allowing simultaneous connection. Adjustable stroke length can be set to limit the pressure per stroke. |
| Warranty | 1 YEARS |
| Product Weight | 1.03 LBS |
| Product Height | 3.5 IN |
| Product Length | 8.7 IN |
| Product Width | 4.8 IN |
| HTS/Schedule B Number | 8413.30.9090 |
| ECCN Number | EAR99 |
| Country of Origin | China |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.03 lbs |
|---|---|
| Dimensions | 8.7 × 4.8 × 3.5 in |
