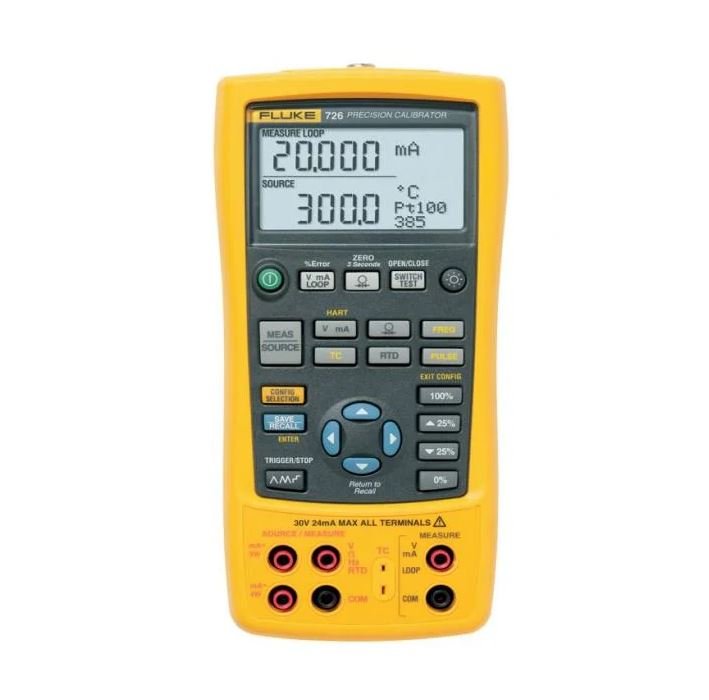

Fluke 726/FPC – 726 Multifunction Precision Process Calibrator with 1 Year Premium Care Standard

• Includes 1 year Fluke Premium Care Standard

• More precise measurement and calibration source performance, accuracies of 0.01%.
• Two separate channels; measure, source and view process signals simultaneously
• Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
• Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters

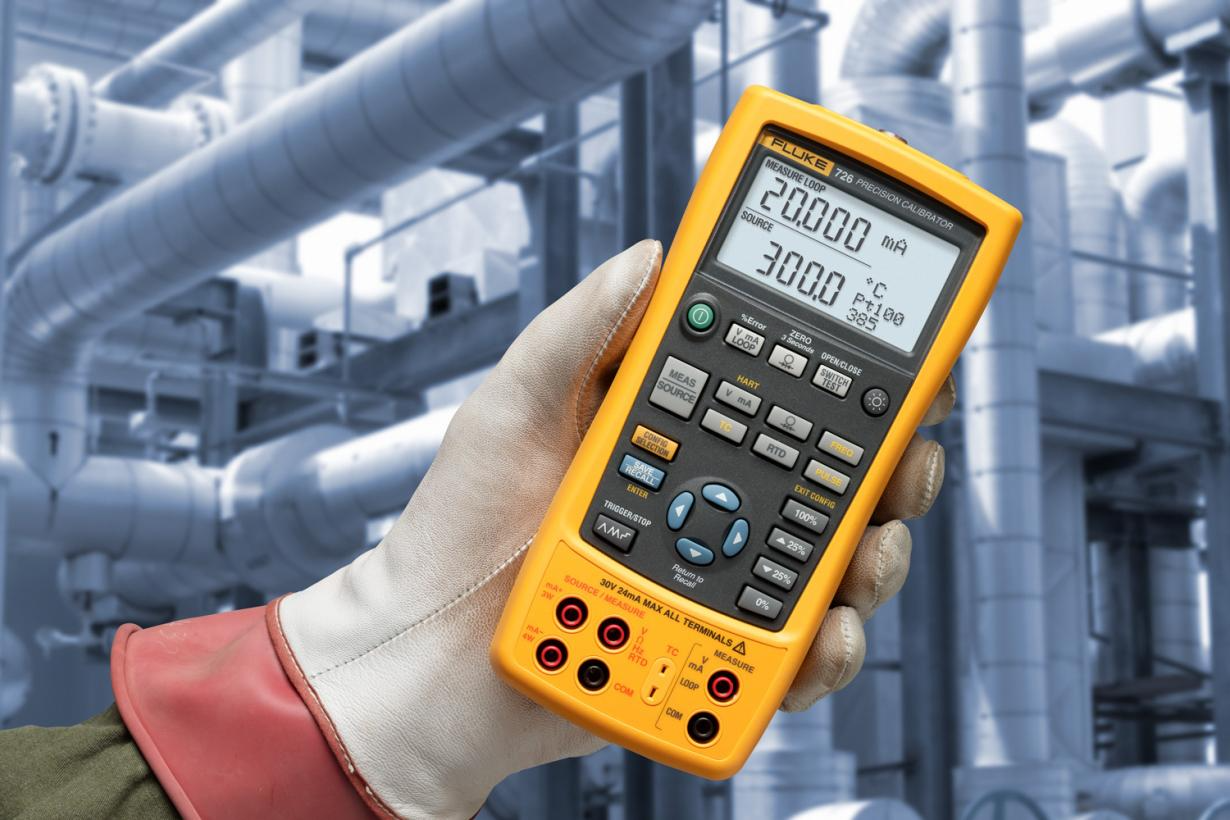

The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.

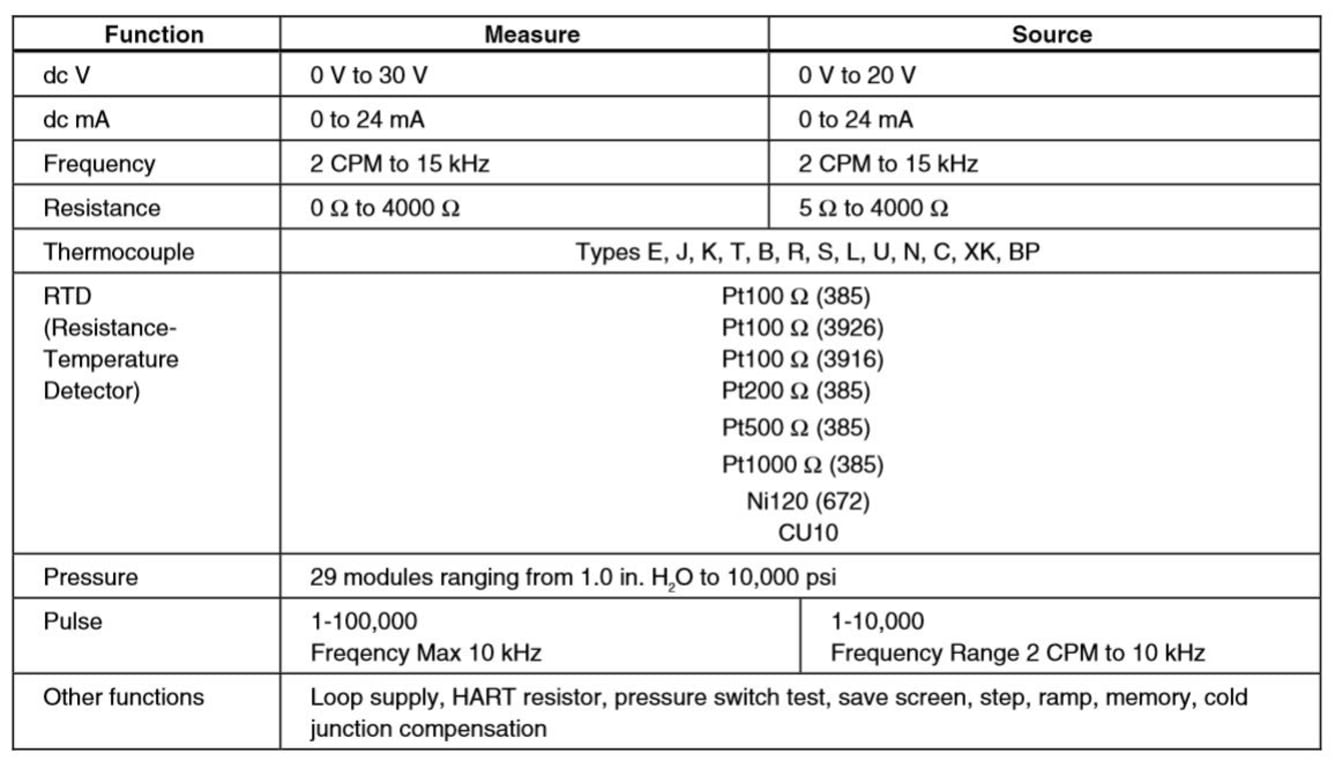

The Fluke 726 Multifunction Process Calibrator (referred to as “the Calibrator”) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters. See Table 1.

• A split-screen display. The upper display allows users to measure volts, current, and pressure only.
• The lower display allows the user to measure and source volts, current, pressure, resistance temperature detectors, thermocouples, frequency, and ohms.
• A thermocouple (TC) input/output terminal and internal isothermal block with automatic reference junction temperature compensation.
• Stores and recalls setups
• Manual and automatic stepping and ramping
• Stores and recalls calibration screens
• Control the Calibrator remotely from a PC running a terminal emulator program

• TL75 test leads
• AC72 alligator clips
• Stackable alligator clip test leads
• 726 Product Overview (not shown in Figure 1)
• 725/726 CD-ROM (contains Users Manual; not shown in Figure 1)
• 4 AA Batteries (installed)

When you invest in the best equipment in the industry, you want your money to go as far as possible. Fluke Premium Care support plans provide coverage that prevents unexpected downtime caused by damaged test equipment, accessories, or tools in need of calibration or repair.

Fluke Premium Care Standard Plan support for SMFT-1000 is available with one-year or three-year plan options so you can choose the plan that is right for you.

Annual Tool Inspection, Calibration, Cleaning and Updating

• Ensure your test tool is providing accurate results and adheres to the recommended maintenance schedule by leaving it in the hands of Fluke’s experts.

Accidental Damage and Repair Costs Included

• Avoid costly repairs and rest easy knowing your test tool is covered in the event it gets damaged.

Replacement of Damaged Accessories

• Accessories that originally shipped with your unit, such as batteries, power adapters, probes, and cables, and have been qualified as defective by our technicians will be replaced, free of charge during the term of your agreement.

Expedited Calibration and Repair

• Skip the wait – your calibration or repair will be expedited with priority next-on-bench service and shipping so you can get back to your work faster.
