Description

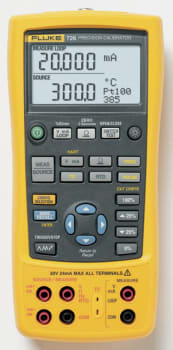

FLUKE 726 – Precision Multifunction Process Calibrator
- More precise measurement and calibration source performance, accuracies of 0.01%.
- Two separate channels; measure, source and view process signals simultaneously
- Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
- Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters
- Measure/source pressure using any of 29 Fluke 700Pxx Pressure Modules
The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.
The Fluke 726 Multifunction Process Calibrator (referred to as “the Calibrator”) is a handheld, battery-operated instrument that measures and sources electrical and physical parameters. See Table 1.
In addition to the functions in Table 1, the Calibrator also has the following features and functions:
- A split-screen display. The upper display allows users to measure volts, current, and pressure only.
- The lower display allows the user to measure and source volts, current, pressure, resistance temperature detectors, thermocouples, frequency, and ohms.
- A thermocouple (TC) input/output terminal and internal isothermal block with automatic reference junction temperature compensation.
- Stores and recalls setups
- Manual and automatic stepping and ramping
- Stores and recalls calibration screens
- Control the Calibrator remotely from a PC running a terminal emulator program
Table 1. Summary of Source and Measure Function

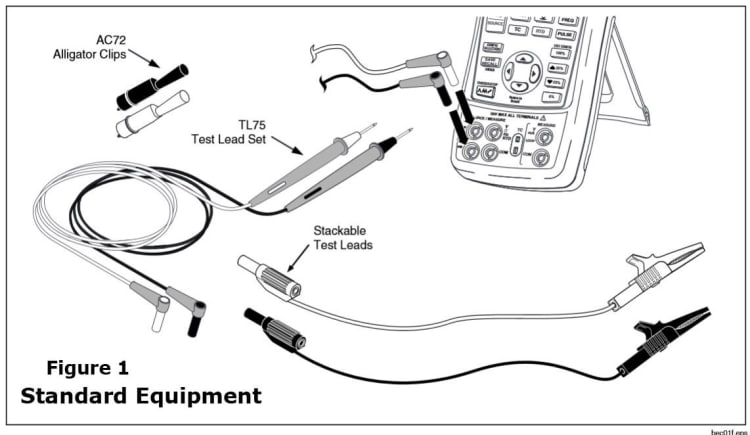

The items listed below and shown in Figure 1 are included with the Calibrator
- TL75 test leads
- AC72 alligator clips
- Stackable alligator clip test leads
- 726 Product Overview (not shown in Figure 1)
- 725/726 CD-ROM (contains Users Manual; not shown in Figure 1)
- 4 AA Batteries (installed)
Process / Calibration/Multifunction Calibrators Template | |
|---|---|
| Type | Hand Held |
| Measure Voltage | Yes |
| Loop Voltage Min | 0.01 mV (0.00001 V) |
| Simulate Loop Voltage | Yes |
| Loop Voltage Max | 30 V |
| Voltage Measurement Max | 30 V |
| Voltage Measurement Min | 0.01 mV (0.00001 V) |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 24 mA |
| Current Measurement Min | 0.001 mA |
| Source/Simulate Resistance | Yes |
| Measure Resistance | Yes |
| Resistance Measurement Max | 4 K Ohms (4000 Ohms) |
| Resistance Measurement Min | 5 Ohms |
| Source/Simulate Frequency | Yes |
| Measure Frequency | Yes |
| Frequency Measurement Max | 15 Hz |
| Frequency Measurement Min | 1 Hz |
| Measure RTD | Yes |
| Measure Thermocouples | Yes |
| Source/Simulate Pressure | No |
| Pressure Modules Available | Yes |
| Hart Compatible | No |
| FieldBus Compatible | No |
| Backlighted | Yes |
| Graphical Screen | No |
| Types RTD/Thermocouples Accepted | B, C , E, J, K, L, N, R, S, T, U Types RTD/Thermocouples Accepted Also woks with BP and XK Thermocouples. |
Product General Attributes | |
| Unique Features | More precise measurement and calibration source performance, accuracies of 0.01%. Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis. Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing. Two separate channels; measure, source and view process signals simultaneously. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 23 OUNCES (1.44 LBS) |
| Product Height | 1.9 IN |
| Product Length | 7.9 IN |
| Product Width | 3.8 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992 |
| Calibration Included | NIST Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
