Fluke 789 FC/T3000 Fluke Connect ProcessMeter/Temp Kit
46 people are viewing this product right now
$1,967.88
Shipping calculated at checkout.
Estimated delivery:3 days
FLUKE CONNECT PROCESSMETER/TEMP MEASURE KIT
- Fluke Connect ProcessMeter/Temp Measure
- Unique new wireless measurement logging capability
- Temperature measurement from -200 °C to 1372 °C using the t3000 FC
- 24 V Loop power supply
- HART mode setting with loop power (adds 250 ohm resistor)
- 100 % larger dual display
- 1200 ohm drive capability on mA source
- Enhanced backlight with two brightness settings
- 0 % to 100 % mA Span Check buttons to toggle between 4 and 20 mA
- Infrared I/O serial port compatible with FlukeView® Forms Software Version 2.1
- Externally accessible fuses for easy replacement
These 787 features are also included in the 789:
- DMM designed to meet 1000 volt IEC 1010 CAT III standards
- Precision 1000 V, 440 mA true-rms digital multimeter
- Frequency measurement to 20 kHz
- Min/Max/Average/Hold/Relative modes
- Diode test and continuity beeper
- Simultaneous mA and % of scale readout
- 20 mA dc current source/loop calibrator/ simulator
- Manual step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
- Externally accessible battery for easy battery changes
Fluke Connect Features:
- Fluke Connect allows you to wirelessly transfer data from your existing Fluke tools to your smart phone
- Fits over the IR port of your existing Fluke tools
- Upgradeable by USB
- Immediately enables you to graph, save, and share the tool’s readings with your team from your smart phone
Supported smart phones:
- Android™ 4.3 & up
- iPhone® 4s & later
Guarantee Safe and Secure Payment Checkout
Description

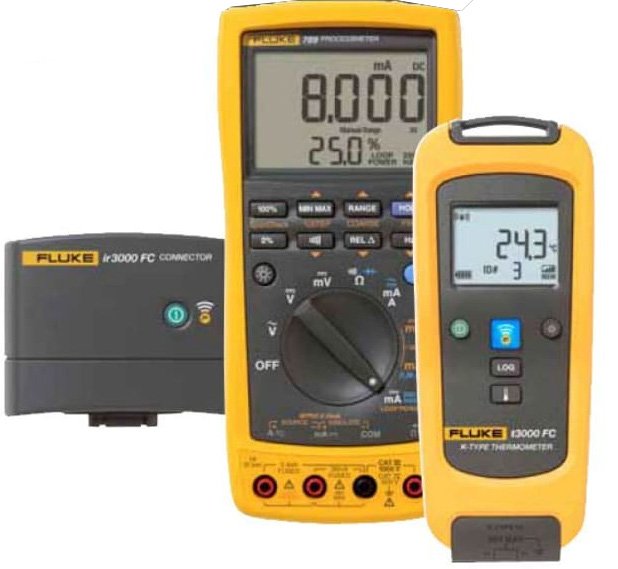

Fluke 789 FC/T3000 Fluke Connect ProcessMeter/Temp Measure

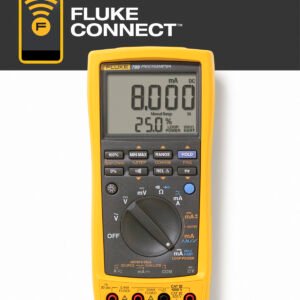

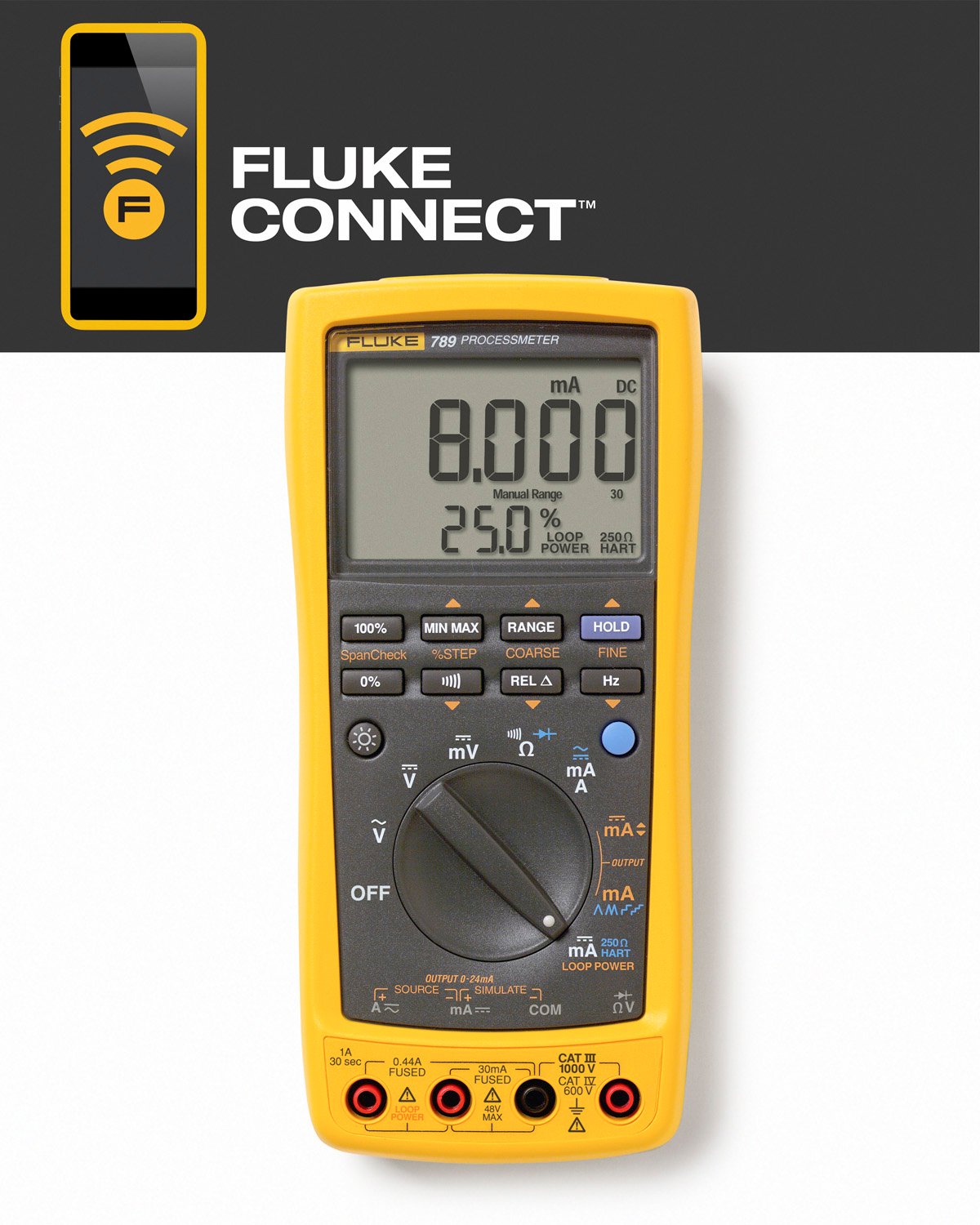

Now compatible with Fluke Connect ™ Mobile App
Double your power.
The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter. By equipping the 789 with a temperature measurement module and the wireless data logging capabilities of Fluke Connect ™ with ShareLive™ video call, process technicians can now do a lot more while carrying a lot less. And with its built-in, selectable 250 ohm HART®resistor, it eliminates the need to carry a separate resistor with you.

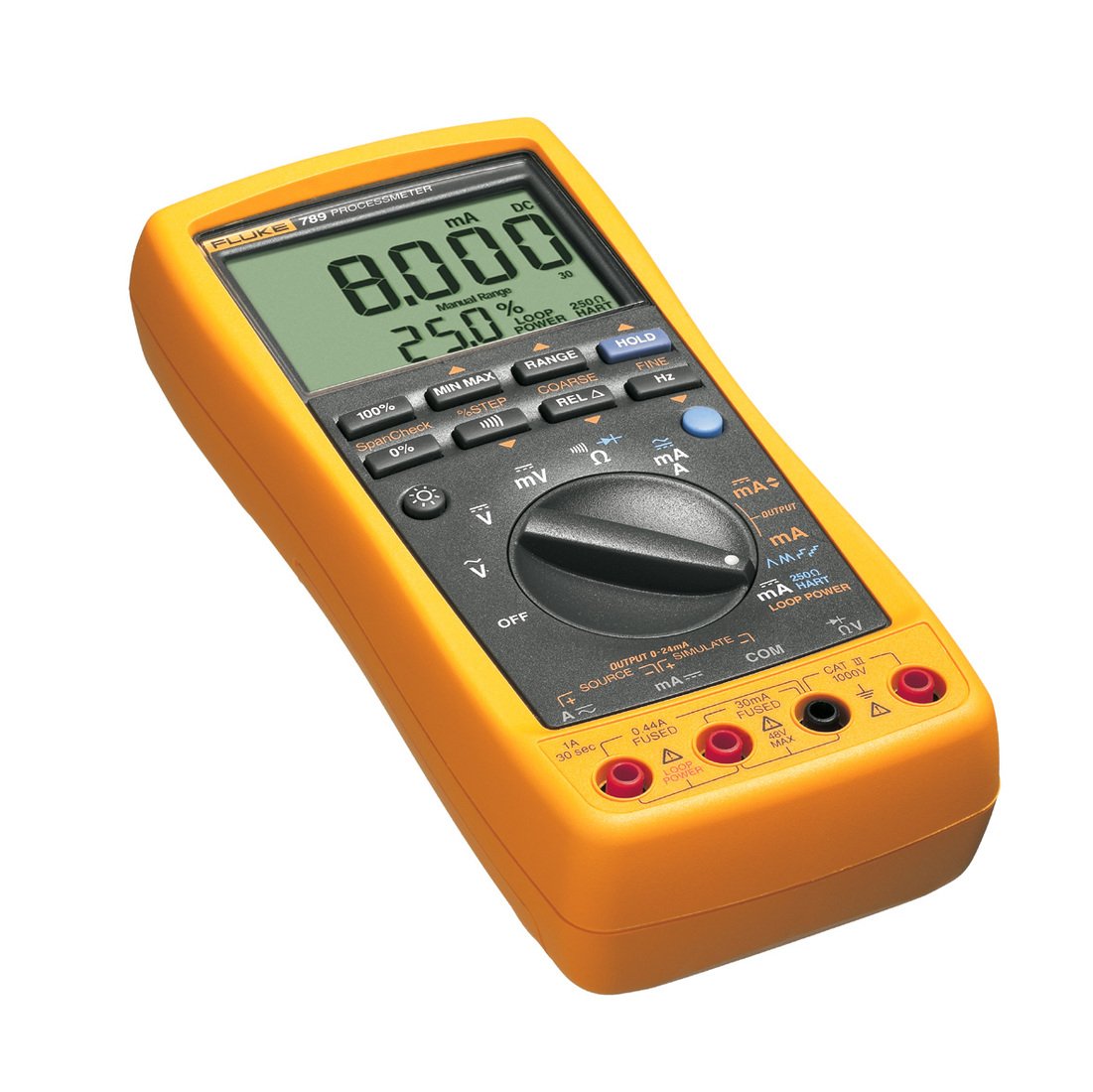

The Fluke 789 ProcessMeter™ (referred to as “the meter”) is a handheld, battery-operated tool for measuring electrical parameters, supplying steady or ramping current to test process instruments, and providing a > 24 V loop power supply. It has all the features of a digital multimeter, plus current output capability

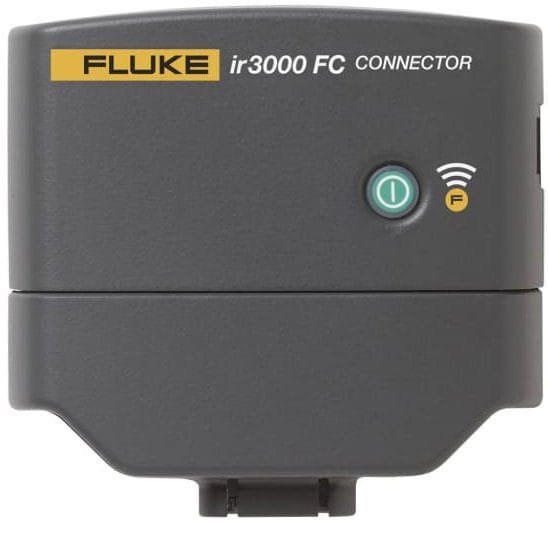

Use the included FC Connector with the Fluke 789 and get the full benefits of the Fluke Connect ™ mobile app. Download it now and get started.
 | See it. Save it. Share it. All the facts, right in the field. Fluke Connect with ShareLive ™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android ™ (4.3 and up) and iOS (4s and later) and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And more are on the way. Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity. Supported smart phones:
Download the app at: |
LEARN MORE ABOUT FLUKE CONNECT
Process / Calibration/Multifunction Calibrators Template | |
|---|---|
| Type | Hand Held |
| Measure Voltage | Yes |
| Simulate Loop Voltage | No |
| Voltage Measurement Max | 1000 V |
| Voltage Measurement Min | 0.1 mV (0.0001 V) |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 1 A (1000 mA) |
| Current Measurement Min | 1 mA |
| Source/Simulate Resistance | No |
| Measure Resistance | Yes |
| Resistance Measurement Max | 40 M Ohms (40000000 Ohms) |
| Resistance Measurement Min | 0.1 Ohms |
| Source/Simulate Frequency | No |
| Measure Frequency | Yes |
| Frequency Measurement Max | 20 kHz (20000 Hz) |
| Frequency Measurement Min | 0.5 Hz |
| Measure RTD | No |
| Measure Thermocouples | No |
| Source/Simulate Pressure | No |
| Pressure Modules Available | No |
| Hart Compatible | No |
| FieldBus Compatible | No |
| Backlighted | Yes |
| Graphical Screen | No |
| Intrinsically Safe(Calibrators) | No |
Product General Attributes | |
| Unique Features | 789 ProcessMeter combines a loop calibrator with a DMM. 24 V Loop power supply. DMM designed to meet 1000 volt IEC 1010 CAT III standards. Infrared I/O serial port compatible with FlukeView® Forms Software. |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 1.3 LBS |
| Product Height | 1.97 IN |
| Product Length | 8 IN |
| Product Width | 3.94 IN |
| Data Logging | No |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 7.50 IN |
| Shipping Length | 14.05 IN |
| Shipping Width | 11.50 IN |
You must be logged in to post a review.
Manuals/Guides
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 8 × 3.94 × 1.97 in |
