Description

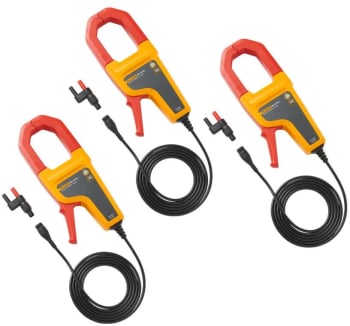

Fluke 80i-2010s/3PK – AC/DC Current Clamp, Three Packs
- Available in packs of three
- Current Range: 2000 A ac rms, ± 2000 A dc
- Output Sensitivity: 01 mV/A
- Accuracy: ± 0.8 % of reading ± 0.2 % of range
- Bandwidth for Accuracy Specification: DC to 400 Hz
- Load impedance: >1 MΩ and <10 pF
Available in packs of three, the Fluke 80i-2010s/3PK allows you to measure up to 2,000A AC and/or DC on large conductors with 0.8% accuracy. The 80i-2010s/3PK provides a convenient way to measure current without having to disconnect the load.
Use the Fluke 80i-2010s AC/DC Current Clamp (the Clamp or Product) with oscilloscopes and digital multimeters and power analyzers for accurate non-intrusive measurements of ac, dc, and complex waveform currents.
Advanced Hall Effect Technology
Using advanced Hall Effect technology, the Clamp can accurately measure currents up to 2000 A RMS. These features make it a powerful tool for use in inverters, switch-mode power supplies, industrial controllers, automotive diagnostics, and other applications requiring current measurements and/or waveform analysis.
Clamp Meters/Current Clamp Adaptors / Current Clamps Template | |
|---|---|
| Type (Current Clamp Adaptors | CT |
| Maximum Current AC | 2000 A |
| Maximum Current DC | 2000 A |
| Maximum Conductor Size | 2.05 IN |
Product General Attributes | |
| Warranty | 1 YEARS |
| IP Rating | IP40 |
| Product Weight | 4.8 LBS |
| Product Height | 10.63 IN |
| Product Length | 1.81 IN |
| Product Width | 4.33 IN |
| Shipping Weight | 6 LBS |
| HTS/Schedule B Number | 9030.90.8931 |
| ECCN Number | 3A992 |
| Country of Origin | China |
| Shipping Height | 9.00 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 9.00 IN |
