Description

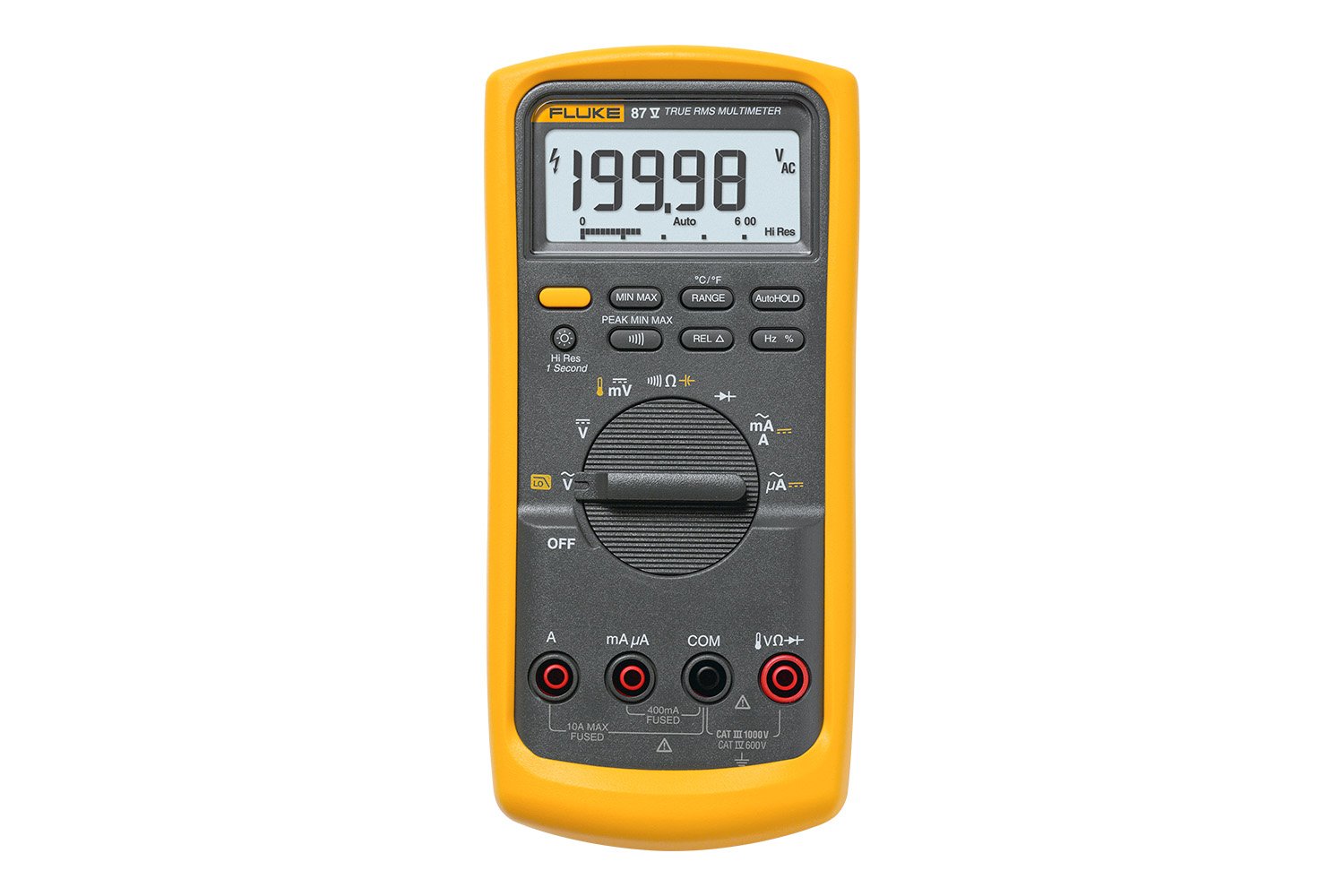

Fluke 87-5
- True RMS, heavy-duty industrial multimeter
- Provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and more
- Supports accurate measurements on VFDs using a low-pass filter
- Captures intermittent signals as fast as 250µS using Peak Capture
- High-frequency, high-energy noise generated by large drive systems is blocked with specially designed shielding
Industrial Multimeter (87-V)
The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment – even in loud, high-energy, and high-altitude locations. The 87V is designed so you can work more efficiently.
- Easy-access door for fast battery changes without breaking the calibration seal
- Analog bar graph for fast-changing or unstable signals
- Large digit display with bright, two-level backlight for easier reading in low light
- Touch Hold keeps readings on display even after removing probes
The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter. The meter also captures intermittent signals as fast as 250µS using Peak Capture. High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.
Built to the highest safety standards
All the inputs in the 87V are updated to the third edition of EN 61010-1 to CAT III 1000V and CAT IV 600V. The meter is designed to withstand spikes of more than 8000V. You also benefit from an audible Input Alert warning if the test leads are placed in the incorrect input jacks for the measurement being made.

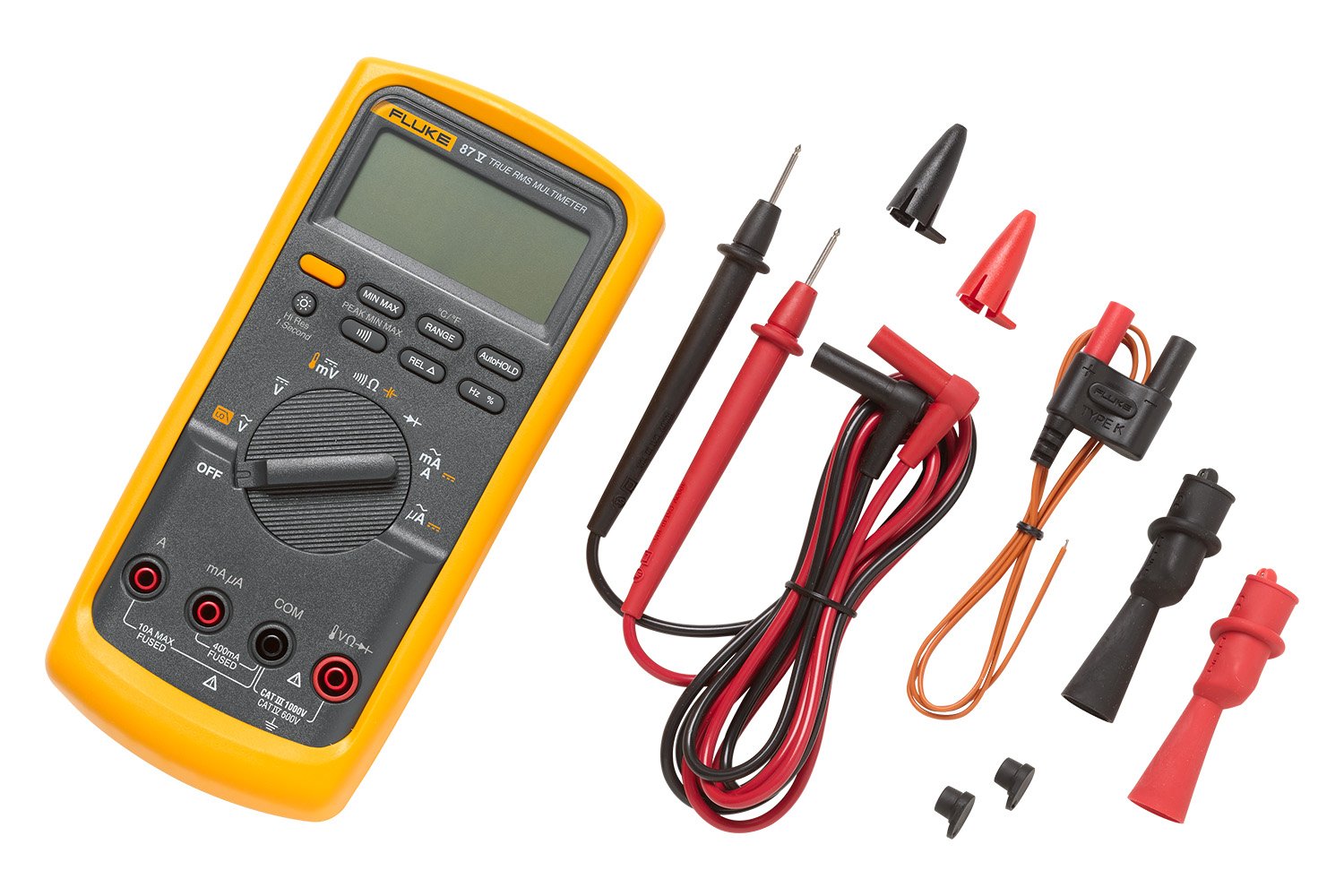

Removable holster with built-in test lead and probe storage for convenience
The 87V has a removable holster that also holds a test probe during testing for easier viewing. Relative mode lets you remove test lead resistance, improving the accuracy of low-resistance measurements. To make your life even easier, the 87V fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks.
Additional measurement features
The Fluke 87V is designed and built in the U.S. and comes with a lifetime warranty.
Screen layout
| 1. Polarity indicator of bar graph, positive/negative slope indicator for triggering | 10. Min/max recording mode |
| 2. Continuity beeper is on | 11. Low pass filter mode |
| 3. Relative mode | 12. Low battery |
| 4. Smoothing | 13. Units of measure |
| 5. Indicates negative reading | 14. Temperature |
| 6. High voltage is present | 15. Selected range |
| 7. Auto hold | 16. High resolution mode |
| 8. Display hold | 17. Auto/manual ranging |
| 9. Peak min max mode (250µs response time) | 18. Bar graph |
Product comparison
The chart below outlines a comparison of the 87-5 and several other Fluke products.
To view additional selection criteria for the Fluke digital multimeter portfolio, please click here.
| 87V | 87V MAX | 289 | 179 | 1587 FC | |
| Counts | 20000 | 20000 | 50000 | 6000 | 6000 |
| Basic DC accuracy | 0.05% | 0.05% | 0.02% | 0.09% | 0.09% |
| True RMS | ✓ | ✓ | ✓ | ✓ | ✓ |
| AC/DC voltage | 1000V | 1000V | 1000V | 1000V | 1000V |
| AC/DC current | 10A | 10A | 10A | 10A | 10A |
| Resistance | 50MΩ | 50MΩ | 500MΩ | 50MΩ | 50MΩ |
| Capacitance | 9999µF | 9999µF | 100000µF | 9999µF | 9999µF |
| Temperature | 1994°F | 1994°F | 2462°F | 752°F | 932°F |
| Frequency | 200 kHz | 200 kHz | 1 MHz | 100 kHz | 100 kHz |
| Motor drive measurement | ✓ | ✓ | ✓ | – | ✓ |
| Relative reference | ✓ | ✓ | ✓ | – | – |
| Microamps | ✓ | ✓ | ✓ | – | – |
| Conductance | 50nS | 60nS | 50nS | – | – |
| Duty cycle | ✓ | ✓ | ✓ | – | – |
| Pulse width | – | – | ✓ | – | – |
| Pi/DAR | – | – | – | – | ✓ |
| Drop test | 3 meters | 4 meters | – | – | – |
| Backlit keypad | – | ✓ | – | – | – |
| IP rating | IP30 | IP67 | IP42 | – | – |
| CAT III rating | 1000V | 1000V | 1000V | 1000V | 1000V |
| CAT IV rating | 600V | 600V | 600V | 600V | – |
| Battery life | 400 hours | 800 hours | 200 hours | 200 hours | 1000 hours |
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A Maximum Current AC 20 A for 30 seconds maximum |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A Maximum Current DC 20 A for 30 seconds maximum |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Resolution DC Current | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | ± (0.05 % + 1) |
| # Digit Display | 4.5 |
| Counts | 6000 . Counts 6000 counts updates 4/sec; 19,999 counts in high-resolution mode |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes Resistance Maximum Resistance 50 Ω |
| Frequency | Yes Frequency Maximum Frequency 200 kHz |
| Capacitance | Yes Capacitance Maximum Capacitance 9,999 µF |
| Temperature | Yes Temperature Range: 200.0°C – 1090°C, -328.0°F – 1994.0°F; |
| Diode Testing | Yes Diode Testing Range 3 V |
| CAT Rating | IV CAT Rating CAT III 1000 V / CAT IV 600 V |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | Range: 0.0 to 99.9 % Accuracy: Within ± (0.2 % per kHz + 0.1 %) for risetimes < 1 μs |
Product General Attributes | |
| Unique Features | •Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment •Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument •Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks •Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models •True-rms ac voltage and current for accurate measurements on non linear signals •Selectable filter for accurate voltage and frequency measurements on motor drives •0.05 % dc accuracy •6000 counts, 3-3/4 digits •4-1/2 digit mode for precise measurements (20,000 counts) •Measure up to 1000 V ac and dc •Measure up to 10 A, 20 A for up to 30 seconds •Built in thermometer lets you carry one less tool (TC probe included) •Frequency to 200 kHz and % duty cycle •Resistance, continuity and diode test |
| Warranty | 10 YEARS |
| Additional Info/Comments | •10,000 µF capacitance range for components and motor caps •Min/Max-Average recording with Min/Max Alert to capture variations automatically •Peak capture to record transients as fast as 250 µs •Relative mode to remove test lead interference from low ohms measurements •Auto and manual ranging for maximum flexibility •Touch Hold to capture stable readings avoiding noisy signals •Large display digits and two-level bright white backlight for increased visibility •Analog bargraph for fast changing or unstable signals •Input Alert provides audible warning against wrong use of input jacks •Improved selectable sleep mode for long battery life •Access door for fast battery changes without breaking the calibration seal •”Classic” design with new removable holster with built in test lead and probe storage •Lifetime warranty |
| Safety Approval | CSA, UL Safety Approval Designed to comply with IEC 1010-1 as a 1000V, CAT III instrument (see pg.2 for |
| Interfaces I/O | Other, Analog Input |
| Product Weight | 0.78 LBS |
| Product Height | 1.25 IN Product Height With Holster and Flex-Stand: 2.06 inches |
| Product Length | 7.35 IN Product Length With Holster and Flex-Stand: 7.93 inches |
| Product Width | 3.41 IN Product Width With Holster and Flex-Stand: 3.86 inches |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v Battery Type 9V, NEDA 1604 or 6F22 or 006P |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| UPC | 095969245241 |
